150mm Duckfoot Bend Assembly for B&C Range, Flanged

Description

Overview

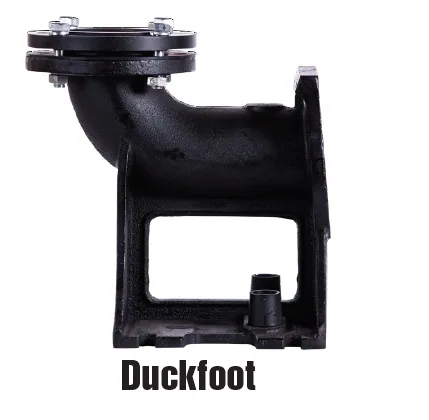

This 150mm duckfoot bend assembly is the fixed base that a guide-rail pump sits on, and it also carries the flange connector to your discharge pipe. It is made for the B&C range and comes as a set with the duckfoot bend, a guide hook, a flange connector and the hex bolts and spring washers that fasten them. Guide rails are not included. More sizes sit in our pump spares and accessories.

At 150mm it is the second-largest in the range, so check your discharge size before ordering.

Key features

• Nominal size: 150mm
• Configuration: duckfoot bend
• Fixation: flange
• Guide hook with hex bolt and spring washer
• Flange connector with hex bolt and spring washer
• Spring fitted, applications listed as hydraulic
• Excludes guide rails

Where it works

Use it for high-flow sumps where a submersible pump is lowered on guide rails onto a fixed discharge base. Pump stations on Gauteng municipal schemes, mine dewatering sumps in Mpumalanga and the Free State, and farm effluent wet wells all use this kind of base. Size it to your discharge line, then add rails of the right length from your pump supplier. The smaller 100mm duckfoot assembly suits lower flows. The largest size is the 200mm duckfoot assembly.

What’s in the box

• 1 x 150mm duckfoot bend
• 1 x guide hook with hex bolt and spring washer
• 1 x flange connector with hex bolt and spring washer

Delivery and warranty

Kamano delivers with its own trucks from Polokwane to all nine provinces in 1 to 3 days, including Mbombela, eMalahleni, Johannesburg, Pretoria, Polokwane and Richards Bay. Fees are set by total order weight. At a shipping weight of about 60 kg this item falls in the 30 to 60 kg band (R950), and orders of R20,000 or more (VAT incl.) are delivered free.

Ask us for the warranty terms on this model.
