1.1 kW 380 V three-phase cast iron submersible pump, 50 mm outlet

1.1 kW 380 V three-phase cast iron submersible pump, 50 mm outlet, side view

1.1 kW 380 V three-phase cast iron submersible pump, 50 mm outlet, close-up of the casing

1.1 kW Submersible Pump, 380 V Three-Phase, 50 mm Outlet

Name: 1.1 kW Submersible Pump, 380 V Three-Phase, 50 mm Outlet
SKU: KMN-SUBM-0030
Price: 3824.00 ZAR
Availability: InStock

SKU KMN-SUBM-0030

A 1.1 kW three-phase submersible pump with 50 mm outlet for dewatering and screened sewage, delivered by Kamano nationwide.

R3 824,00

Runs on 380 V to 415 V three-phase supply
Up to 25 m3/h, 15.1 m maximum head
50 mm outlet with removable suction screen
Cast iron body and open channel impeller

Delivered by our own trucks in 1 to 3 days. R550 / R950 / R1,450 by order weight. FREE on orders of R20,000 or more with code KH027. Delivery details

Specifications

Model	WS25-15-1.1E
Flow rate	25 m3/h at 6.6 m

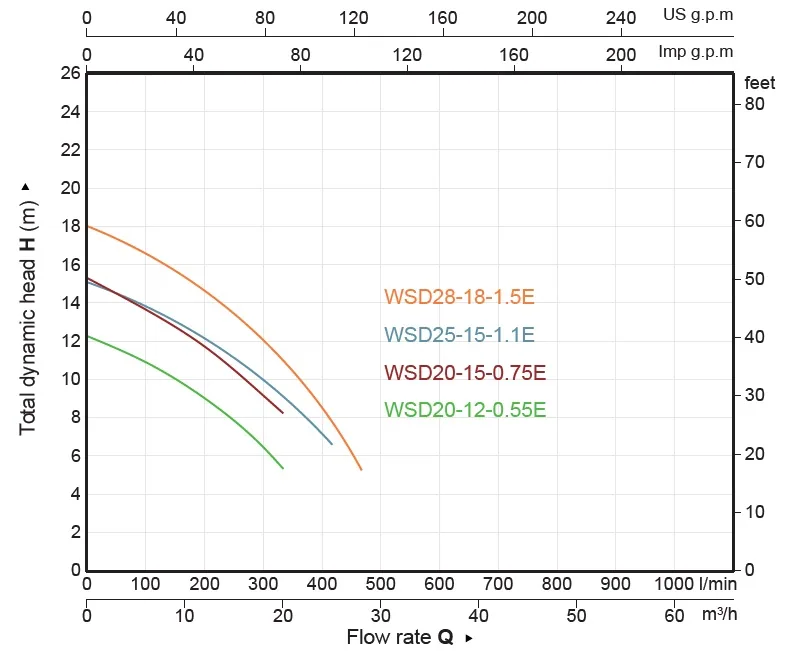

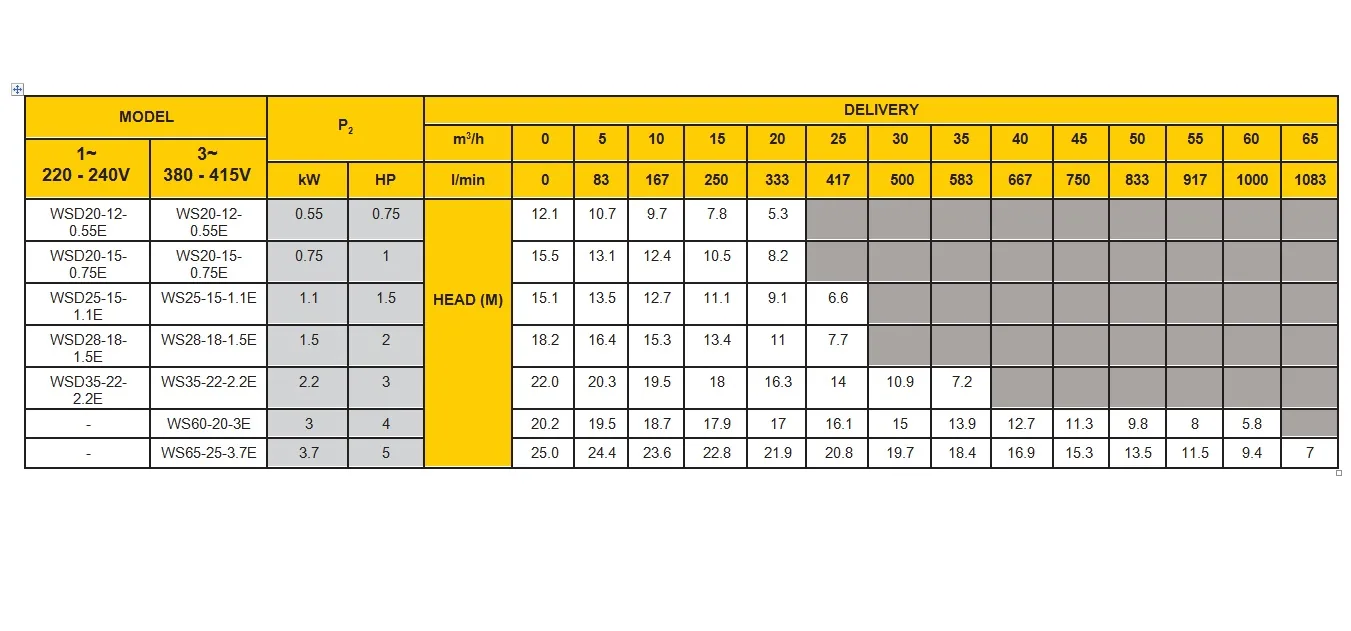

Duty points	5 m3/h at 13.5 m, 15 m3/h at 11.1 m, 20 m3/h at 9.1 m
Max head / pressure	15.1 m
Voltage / phase	380 V to 415 V, three-phase
Power	1.1 kW (1.5 HP)
Inlet / outlet	Removable suction screen / 50 mm outlet
Self-priming	N/A (submersible)
Duty cycle	On request
Fluid compatibility	Clean water, dirty water and screened sewage, up to 40 °C, density 1 kg/l
Impeller	Cast iron, open channel
Seal	Double mechanical, graphite/ceramic and graphite/silicon carbide, nitrile elastomer
Max immersion depth	5 m
Power cable	10 m
Net weight	14 kg
Shipping weight	16 kg
Dimensions	250 x 250 x 410 mm

Description

Overview

The three-phase version of our 1.1 kW (1.5 HP) WSD-series submersible, model WS25-15-1.1E, is for sites that run on 380 V to 415 V and want a compact pump that can be carried by one person. It pumps clean water and screened sewage through a 50 mm outlet, moving 25 m3/h at 6.6 m head with a shut-off head of 15.1 m. An open channel impeller passes small solids, and a removable suction screen switches it between sewage and dewatering duty. It is not listed with a float switch, so plan level control or manual start.

Key features

Three-phase motor for 380 V to 415 V supply
Cast iron pump body and open vane impeller
Double mechanical seal, graphite/ceramic and graphite/silicon carbide, with nitrile elastomer
50 mm outlet and removable suction screen
10 m power cable, 5 m maximum immersion depth
Handles liquid up to 40 °C at a density of 1 kg/l

Where it works

Three-phase farms in Limpopo and the Free State use this size for dam-edge sumps and feedlot washdown pits. Contractors in Gauteng and KZN use it for foundation and trench dewatering, and mines use it for small underground and surface sumps. Pair it with a motor starter and level control. Compare the 1.1 kW 220 V submersible pump for single-phase supply, or the 1.5 kW 380 V submersible pump for more head. See the full range of submersible pumps.

What’s in the box

1.1 kW three-phase submersible pump, model WS25-15-1.1E
Removable suction screen
10 m power cable

Delivery and warranty

Kamano delivers with its own trucks from Polokwane to all nine provinces in 1 to 3 days, with regular runs to Johannesburg, Polokwane, Rustenburg, Durban, Kimberley, Welkom and Mbombela. Fees are set by total order weight: up to 30 kg R550, 30 to 60 kg R950, 60 to 100 kg R1,450, and over 100 kg on quotation. At 16 kg shipping weight this pump sits in the up to 30 kg band at R550. Orders of R20,000 or more (VAT incl.) ship free. Ask us for the warranty terms on this model.

Questions about this product

Does this 1.1 kW pump need three-phase power?

Yes. This model is wound for 380 V to 415 V three-phase and will not run on a standard single-phase plug. If you only have 220 V, choose the single-phase 1.1 kW version, which also comes with a float switch.

Does it come with a float switch?

No float switch is listed with this three-phase model. You can run it manually or add your own level control and motor starter. The 220 V version of the same size includes a float switch.

Do you deliver this pump to Rustenburg?

Yes. Kamano delivers with its own trucks from Polokwane to Rustenburg and the rest of South Africa in 1 to 3 days. This pump ships at 16 kg, which is the up to 30 kg band at R550. Orders of R20,000 or more (VAT incl.) ship free.
