SP30-22 6″ Borehole Pump, 22 kW, 250 m Max Head

SKU KMN-BORE-0073

The SP30-22 is a 22 kW 6-inch multistage borehole pump with 250 m of shut-off head, delivered across South Africa from Polokwane.

Price range: R14 768,00 through R55 800,00

250 m shut-off head and 24 m³/h at 195 m
6-inch stainless steel pump end, 22 stages, three-phase
Complete 380 V set from R 39,320, or pump end only from R 14,768
Fits boreholes of 150 mm internal diameter and up. VAT incl.

Configuration

Clear

Request Bulk Quote Ask on WhatsApp

Delivered by our own trucks in 1 to 3 days. R550 / R950 / R1,450 by order weight. FREE on orders of R20,000 or more with code KH027. Delivery details

Specifications

Flow rate	Up to 42 m³/h (700 L/min)
Max head / pressure	250 m shut-off head
Duty point	24 m³/h (400 L/min) at 195 m
Performance curve	0 m³/h (0 L/min): 250 m; 6 m³/h (100 L/min): 245 m; 12 m³/h (200 L/min): 231 m; 18 m³/h (300 L/min): 212 m; 24 m³/h (400 L/min): 195 m; 30 m³/h (500 L/min): 168 m; 36 m³/h (600 L/min): 126 m; 42 m³/h (700 L/min): 78 m
Voltage / phase	380 V three-phase, or 525 V three-phase by option
Power	22 kW motor
Pump diameter	6 inch, needs a borehole of 150 mm internal diameter or more
Stages	22
Construction	Stainless steel
Inlet / outlet	On request
Self-priming	N/A (submersible)
Duty cycle	On request
Fluid compatibility	Clean borehole water
Controller	30A intelligent pump controller on 380 V sets; none on pump end or 525 V options
Also listed as	VP32A-22
Net weight	154 kg
Shipping weight	170 kg
Dimensions	2090 x 250 x 250 mm

Description

Overview

The SP30-22 (VP32A-22) is a 6-inch stainless steel multistage submersible borehole pump with a 22 kW motor rating. At 24 m³/h the SP30-22 still lifts water 195 m, and its shut-off head is 250 m, with flow reaching 42 m³/h at the far end of the curve. It is made for deep boreholes feeding irrigation schemes, mine process and dust-suppression water, and municipal bulk supply.

Add your pumping water level, the climb to the tank and about 10 percent for friction, and check the borehole yield with your driller. Send us those figures and we will confirm the SP30-22 fits.

Key features

Stainless steel 6-inch pump end, 22 stages, for boreholes of 150 mm internal diameter or more
Three-phase supply, 380 V or 525 V, with oil-filled or water-filled motors and a pump-end-only option
Head of 195 m at 24 m³/h, and 212 m at 18 m³/h
Sets of this size come with the 30A controller.

Options

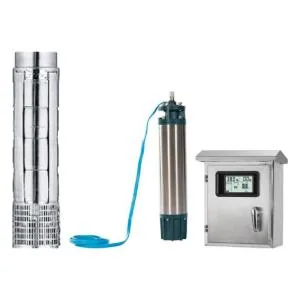

380V set with oil-filled motor, R 39,320: pump end, 22 kW 380 V oil-filled motor (sealed, rated 25 bar) and 30A controller.
380V set with water-filled motor, R 39,472: pump end, 22 kW 380 V water-filled motor (rated 35 bar, usually rewindable) and 30A controller.
525V set with water-filled motor, R 55,800: pump end and 22 kW 525 V water-filled motor. No starter included; your electrician fits a starter panel or VSD.

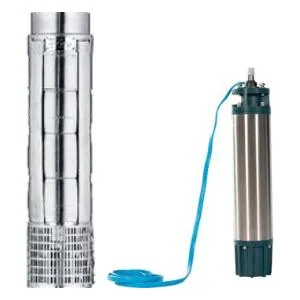

Pump end only, R 14,768: wet end only, to replace a worn pump end on an existing 22 kW 6-inch motor.

Where it works

Mpumalanga coal and Limpopo platinum operations use deep-lift pumps like the SP30-22 for process water, dust suppression and potable supply to site camps.

Browse the borehole pump range, or compare the SP30-14 borehole pump and the SP30-16 borehole pump.

What’s in the box

SP30-22 pump end (all options)
Motor and 30A controller (set options only)
Not included: submersible cable, rope, delivery pipe and base plate

Delivery and warranty

Kamano delivers with its own trucks from Polokwane to all nine provinces in 1 to 3 days, including Kimberley, George, Tzaneen, Welkom, Pretoria and Gqeberha. A boxed set weighs about 170 kg. Orders of R20,000 or more qualify for free delivery, and items over 100 kg are delivered on quotation. Ask us to confirm the lead time. Ask us for the warranty terms on this model.

Questions about this product

What borehole size does the SP30-22 need?

The SP30-22 is a 6-inch pump, so the borehole needs an internal diameter of at least 150 mm. Check the casing size and any bends or dog-legs with your driller before ordering. If the casing is smaller than 150 mm, this pump will not go down, and we can point you to a 4-inch model from the borehole pump range.

Should I choose an oil-filled or a water-filled motor?

Either works. Oil-filled motors are sealed and rated 25 bar, while water-filled motors are rated 35 bar and can usually be rewound if they burn out, which normally makes repairs cheaper on larger motors. For the SP30-22 the 380 V set prices are close but not identical, so choose on repair preference.

Can I get delivery to Bloemfontein and what does it cost?

Yes, we deliver to Bloemfontein with our own trucks from Polokwane, normally in 1 to 3 days. A boxed SP30-22 set weighs about 170 kg, over 100 kg, so delivery is on quotation. Orders of R20,000 or more qualify for free delivery.

How do I know the SP30-22 is right for my borehole?

Add your pumping water level, the height to the tank and about 10 percent for friction. The SP30-22 must beat that total at your flow, for example 212 m at 18 m³/h or 168 m at 30 m³/h. Also get the yield test from your driller, because the borehole must deliver that flow. Send us your figures and we will confirm.

Does the 525 V set include a starter?

No. The 525 V set is the pump end and a water-filled motor only, so your electrician must supply a suitable starter panel or VSD. The 380 V sets include the 30A controller instead. Tell us your supply voltage when you order and we will advise the right option for the SP30-22.
