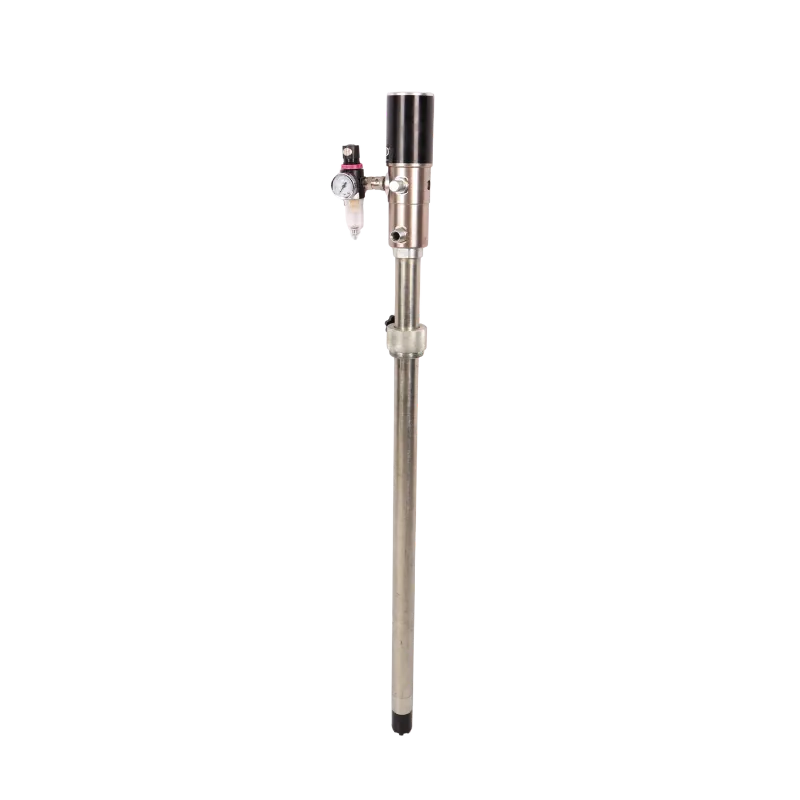

3:1 pneumatic oil drum pump, 12 L/min, with 1/2 inch male outlet and suction tube

Pneumatic Oil Drum Pump 3:1, 12 L/min, 1/2″ Male Outlet

Name: Pneumatic Oil Drum Pump 3:1, 12 L/min, 1/2" Male Outlet
SKU: KMN-FUEL-0325
Price: 5197.50 ZAR
Availability: InStock

SKU KMN-FUEL-0325

A 3:1 air-operated oil drum pump giving 12 L/min through a 1/2" outlet, for workshops and fleets. Delivered nationwide.

R5 197,50

3:1 ratio, 12 L/min flow
Air supply of 5 to 8 bar
Handles oil up to SAE 130
940 mm suction tube for a 205 L drum

Delivered by our own trucks in 1 to 3 days. R550 / R950 / R1,450 by order weight. FREE on orders of R20,000 or more with code KH027. Delivery details

Specifications

Pump ratio	3:1
Flow rate	12 L/min
Air pressure	5 to 8 bar
Max fluid pressure	24 bar
Air consumption	240 L/min
Outlet	1/2" male
Max viscosity	SAE 130
Suction tube	940 mm
Self-priming	N/A (drum pump with suction tube)
Duty cycle	On request
Net weight	18 kg
Shipping weight	20 kg
Dimensions	170 × 140 × 1260 mm

Description

Overview

The pneumatic oil pump 3:1 is an air-operated drum pump that delivers 12 L/min through a 1/2 inch male outlet. It handles lubricants up to SAE 130 and uses a 940 mm suction tube, which reaches the bottom of a standard 205 L drum. It beats the 5:1 on flow, while the 5:1 beats it on pressure.

Specification summary for the pneumatic oil pump 3:1: pump ratio 3:1; flow rate 12 L/min; air pressure 5 to 8 bar; max fluid pressure 24 bar; air consumption 240 L/min; outlet 1/2″ male; max viscosity SAE 130.

Key features

3:1 ratio with 12 L/min flow
Maximum fluid pressure of 24 bar
Air supply of 5 to 8 bar, using 240 L/min
Suits oils up to SAE 130
1/2″ male outlet and 940 mm suction tube

Where it works

In a mine service bay in Mpumalanga or a transport depot in Gauteng, a 3:1 pump keeps oil flowing steadily to gearboxes and reservoirs. It also suits farm workshops in the Free State topping up tractors. It needs a compressor that supplies 240 L/min, so check your air before ordering. Related kit: Pneumatic Oil Pump 5:1, 8 L/min and Pneumatic Grease Pump Kit 50:1. Browse more lube and oil equipment.

What’s in the box

3:1 pneumatic oil pump
940 mm suction tube

Delivery and warranty

Kamano delivers with its own trucks from Polokwane to all nine provinces in 1 to 3 days. Order the pneumatic oil pump 3:1 online and we ship it from Polokwane. Delivery is charged by total order weight, and free delivery applies on orders of R20,000 or more (VAT incl.). Shipping weight: 20 kg. Ask us for the warranty terms on this model.

Freight is set by the combined weight of your order. This item sits in the up to 30 kg band at R550, and extra parts added to the same order only raise the fee if they push the total into the next band. Send us your site address and we will confirm the exact delivery charge before you pay.

Questions about this product

What is the difference between the 3:1 and 5:1 pumps?

The 3:1 gives 12 L/min at up to 24 bar and handles oil up to SAE 130. The 5:1 gives 8 L/min at up to 40 bar and handles oil up to SAE 240. Choose the 3:1 for speed on thinner oil and the 5:1 for thick gear oil or long hose runs.

What size compressor does it need?

It consumes about 240 L/min of air at 5 to 8 bar. A workshop compressor delivering that volume will run it, but a small hobby unit may struggle to keep up. Check your compressor's free air delivery rating, which is more useful than the tank size.

Do you deliver to George and what does it cost?

Yes, we deliver to all nine provinces on our own trucks, normally in 1 to 3 days from Polokwane. This item ships at 20 kg, which is the up to 30 kg band: R550 if it is the only item in the order. Orders of R20,000 or more VAT incl. ship free, so adding a drum trolley can make freight free.

Nationwide delivery from Polokwane

Delivered to all nine provinces in 1 to 3 days

We deliver the Pneumatic Oil Drum Pump 3:1, 12 L/min, 1/2" Male Outlet with our own trucks to Johannesburg, Pretoria, Cape Town, Durban, Gqeberha, Bloemfontein, Polokwane, Mbombela, Stellenbosch, George, Rustenburg, Welkom, Pietermaritzburg and Kimberley, and to farms, mines and sites in between. This item ships in the R550 delivery band (up to 30 kg). Orders of R20,000 or more deliver free with code KH027.
