Cube60 12V Fuel Transfer Pump, 20 to 60 L/min, 1″ Ports

Description

Overview

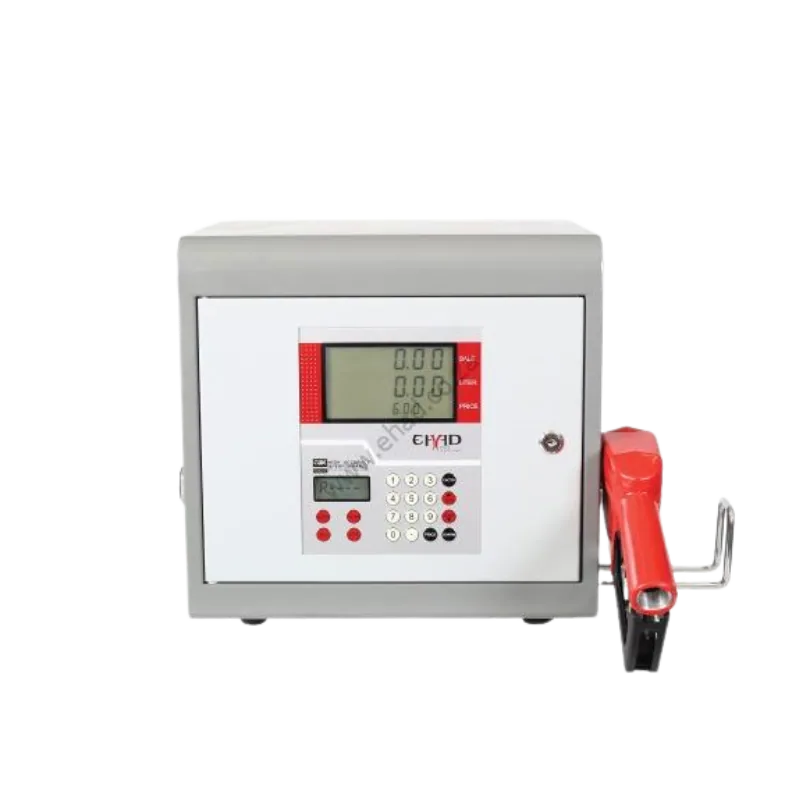

The Cube60 12V pump is a compact dispensing unit built around a DYB70 12V vane pump of 550 W. A K-600-P pulser meter and a 3/4″ automatic nozzle complete the cube, and the 1″ inlet and outlet carry between 20 and 60 L/min.

The pump self-primes with a 3 m suction lift and works against 10 m head at 0.3 MPa. It is the version to choose when you want a wide flow range from a battery supply. The Cube-Smart 12V fuel pump kit and the Cube-Smart 220V fuel pump kit give you a hose-equipped kit if you want one. More options in our fuel transfer pumps range.

Key features

• DYB70 12V vane pump, 550 W, self-priming
• Flow range 20 to 60 L/min
• 1″ inlet and outlet
• K-600-P pulser meter, ±0.5% accuracy
• 3/4″ automatic nozzle
• IP55 rated, 30 minute duty cycle

Where it works

Farmers in Limpopo and the Free State fit this cube to tank stands, so spray rigs and tractors fuel next to the lands. Contractors in Gauteng and KZN mount it on a bakkie tank, and mines in Mpumalanga use it on service vehicles. A battery supply makes it independent of the grid during load-shedding. A cube60 12v pump is a good fit where the supply is a battery and you still want a proper meter. Run short, thick battery cables with a fuse, and keep the suction hose short and airtight to hold the upper end of the flow range.

What’s in the box

• Cube60 12V dispensing unit with DYB70 pump
• K-600-P pulser meter
• 3/4″ automatic nozzle

Delivery and warranty

Kamano delivers with its own trucks from Polokwane to all nine provinces in 1 to 3 days. Orders of R20,000 or more (VAT incl.) ship free. This item ships at 28 kg. That puts it in the R550 delivery band (up to 30 kg). Tell us your town and site access when you order, and we will confirm the delivery day and offloading arrangements with you. Ask us for the warranty terms on this model.
