Compression Female Tee for HDPE Pipe, PN16, 20 mm to 50 mm

Description

Overview

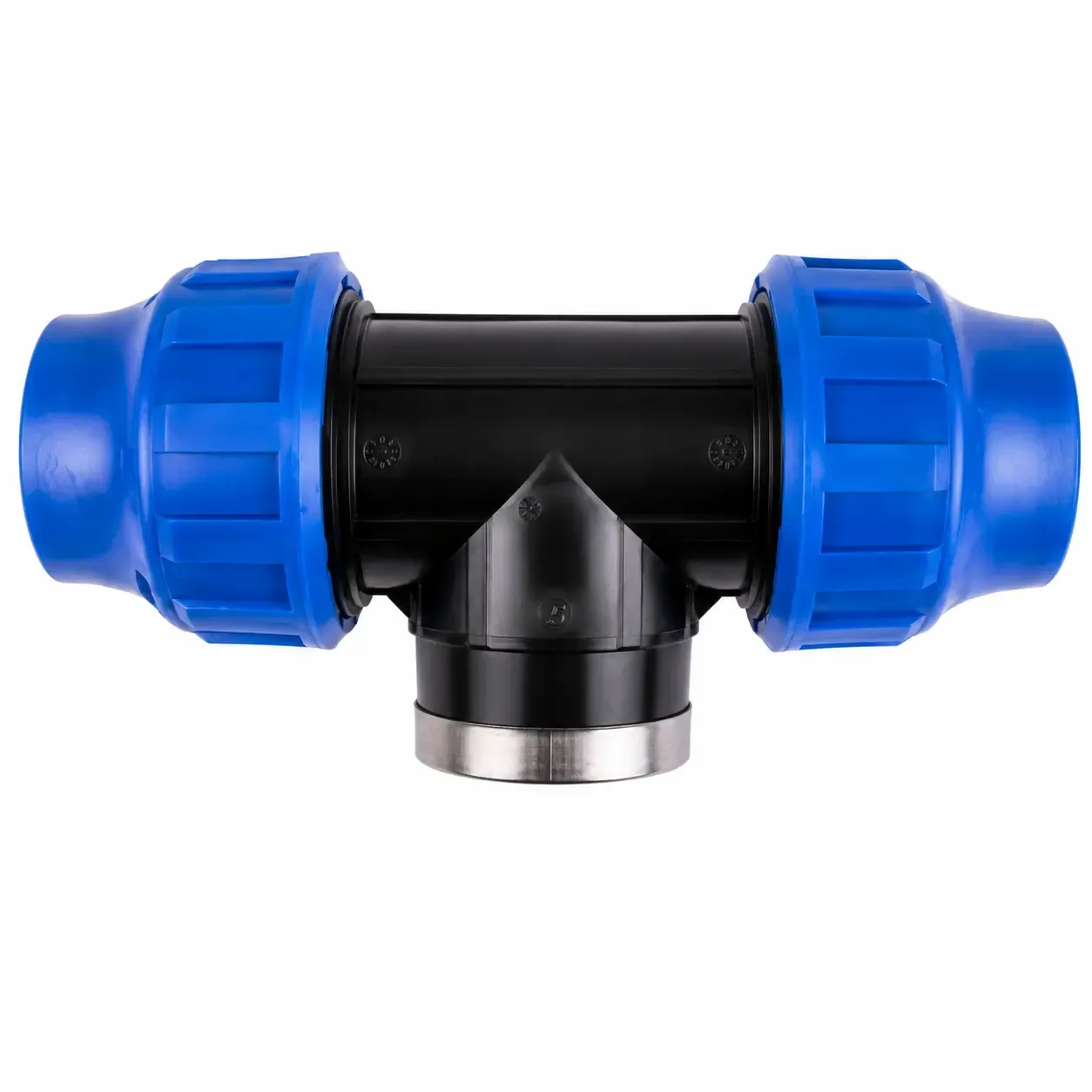

A compression female tee puts a threaded branch into an HD polyethylene (HDPE) line. The two compression ends connect straight to the pipe, and the centre outlet is a female thread for a valve, adaptor or accessory.

The compression design makes fitting quick, and the internal rubber O-ring forms the seal. It is polypropylene and PN16 rated, with ISO 14236 / SANS 14236 stated by the maker for the range. Related parts are in our pipe fittings range.

Key features

• Two compression ends with a female threaded centre outlet
• Creates a 90 degree branch connection
• Suitable for HD polyethylene pipe
• Strong polypropylene construction
• Rubber O-ring gives a reliable watertight seal
• High- and low-pressure use, PN16 up to 16 bar
• Quick installation without heat or soldering
• Easy to maintain or remove

Options

Choose the pipe size and thread size you need. Pipe size comes first, then thread size. Prices are per fitting, VAT incl.

• 20 mm x 1/2″: R 34
• 20 mm x 3/4″: R 34
• 25 mm x 1/2″: R 48
• 25 mm x 3/4″: R 44
• 25 mm x 1″: R 53
• 32 mm x 1/2″: R 46
• 32 mm x 3/4″: R 62
• 32 mm x 1″: R 62
• 32 mm x 1 1/4″: R 64
• 40 mm x 1″: R 79
• 40 mm x 1 1/4″: R 84
• 40 mm x 1 1/2″: R 60
• 50 mm x 1 1/4″: R 106
• 50 mm x 1 1/2″: R 98
• 50 mm x 2″: R 114

Where it works

A female tee lets you add a tap, valve, gauge or take-off to a running HDPE line without cutting into a separate fitting. It suits water supply systems, irrigation, agricultural installations, tank connections and pump systems. Limpopo and KZN farms use it to add stock-water take-offs. Loosen the blue compression nut, push the pipe in fully and tighten. Use a compression coupler for joins and a compression female elbow for turns.

What’s in the box

• 1 x compression female tee in the size you select

Delivery and warranty

Kamano delivers with its own trucks from Polokwane to all nine provinces in 1 to 3 days, including Rustenburg, Klerksdorp, Mahikeng, Johannesburg, Upington and Kimberley. Delivery is charged by total order weight and this item ships at 0.7 kg, so it sits in the up to 30 kg band at R550. That makes it worth adding to a wider fittings order, and delivery is free from R20,000 (VAT incl.). Ask us for the warranty terms on this model.
