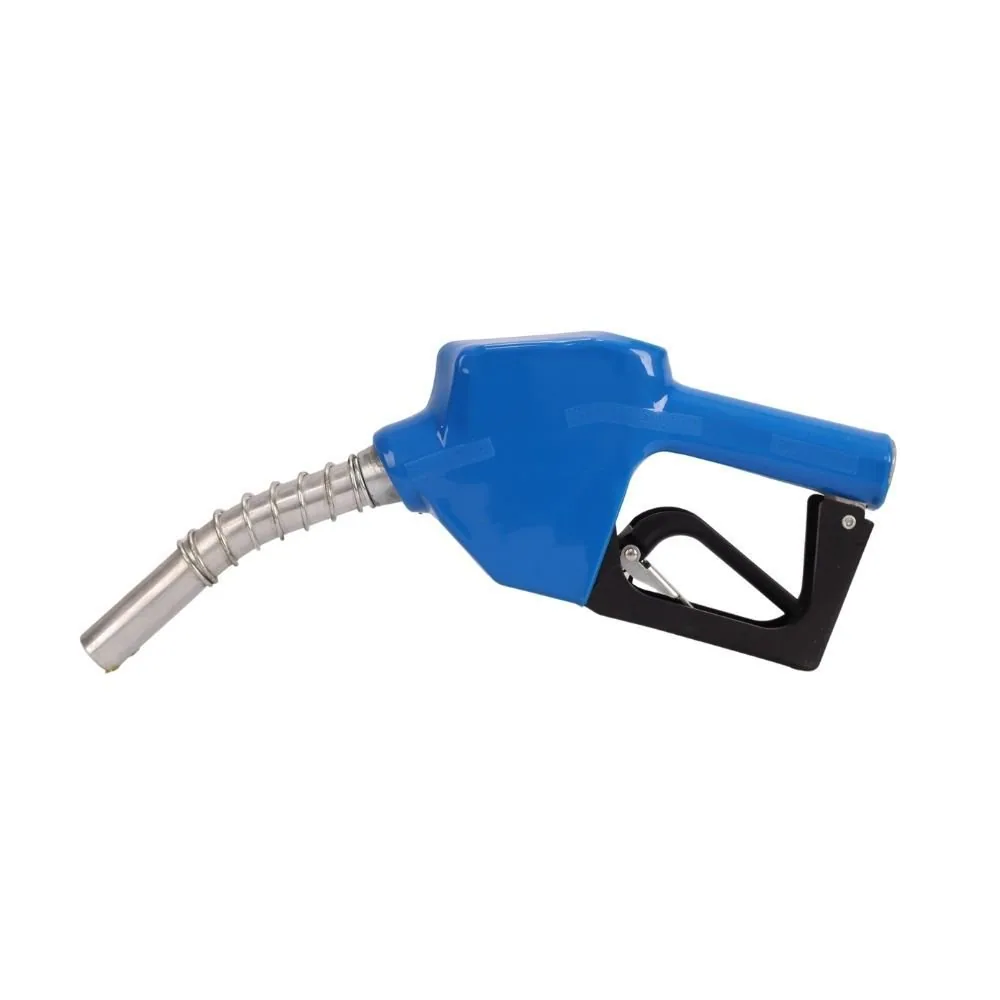

Blue compact 19 mm automatic fuel nozzle, 3/4-inch inlet, 60 L/min

Compact Auto Fuel Nozzle, 19 mm Spout, 60 L/min

Name: Compact Auto Fuel Nozzle, 19 mm Spout, 60 L/min
SKU: KMN-FUEL-0171
Price: 660.56 ZAR
Availability: InStock

SKU KMN-FUEL-0171

A compact 19 mm automatic fuel nozzle with 3/4-inch inlet and 60 L/min flow, for tractors, trucks and farm bowsers across South Africa.

R660,56

Automatic shut-off when the tank is full
19 mm spout for trucks and tractors
3/4-inch inlet, 0 to 60 L/min
Aluminium body at 1.1 kg

Delivered by our own trucks in 1 to 3 days. R550 / R950 / R1,450 by order weight. FREE on orders of R20,000 or more with code KH027. Delivery details

Specifications

Flow range	0 to 60 L/min
Accuracy	N/A (dispensing nozzle, not a meter)
Connection size	3/4-inch inlet, 19 mm spout
Max pressure	On request
Material	Aluminium
Display type	N/A (no display)
Operation	Automatic auto-stop
Net weight	1.1 kg
Shipping weight	1.3 kg
Dimensions	410 × 50 × 170 mm

Description

Overview

This 19 mm compact auto nozzle is the wider-spout twin of our 16 mm model, made for trucks, tractors and plant with larger filler necks. It fills at up to 60 L/min through a 3/4-inch inlet and stops by itself when the tank is full. The aluminium body keeps it at 1.1 kg, so it is easy to hold during long fills.

Key features

Automatic shut-off to prevent overfilling
19 mm spout that seats in wider diesel filler necks
3/4-inch inlet for standard farm and bowser hoses
Flow range of 0 to 60 L/min
Lightweight aluminium construction

Where it works

A 19 mm spout is the common size for diesel trucks and tractors, which makes this nozzle a good fit on Free State grain farms, Western Cape vineyard tractors and Limpopo contractor fleets. It also suits site bowsers where a basic 3/4-inch hose is already fitted. Compare it with the compact 16 mm nozzle for light vehicles, or see the complete range of fuel nozzles. A breakaway coupling in the hose line protects the nozzle if a vehicle drives off with it still in the tank.

What’s in the box

1 x compact 19 mm automatic fuel nozzle

Delivery and warranty

Kamano delivers with its own trucks from Polokwane to all nine provinces in 1 to 3 days. Orders of R20,000 or more ship free. At a shipping weight of 1.3 kg this nozzle sits in the lowest delivery band. Ask us for the warranty terms on this model.

Questions about this product

Is a 19 mm spout right for my tractor?

Most diesel tractors and trucks take a 19 mm spout, but some small tractors have narrower necks. Measure the opening, or try a spout from a similar machine. If the spout sits loose, the auto-stop may not trigger properly, so choose the diameter that fits snugly.

Will it pump petrol?

It is an aluminium automatic nozzle intended for diesel dispensing at farms and depots. Ask us before using it with petrol or other fuels so we can check the seals and your application. Never use any nozzle for a fuel it was not selected for.

How much does delivery cost to KwaZulu-Natal?

At 1.3 kg, the nozzle sits in the up to 30 kg band, which is R550 on its own. Our own trucks reach KwaZulu-Natal and all other provinces from Polokwane in 1 to 3 days. Delivery is free once your order total reaches R20,000 including VAT.
