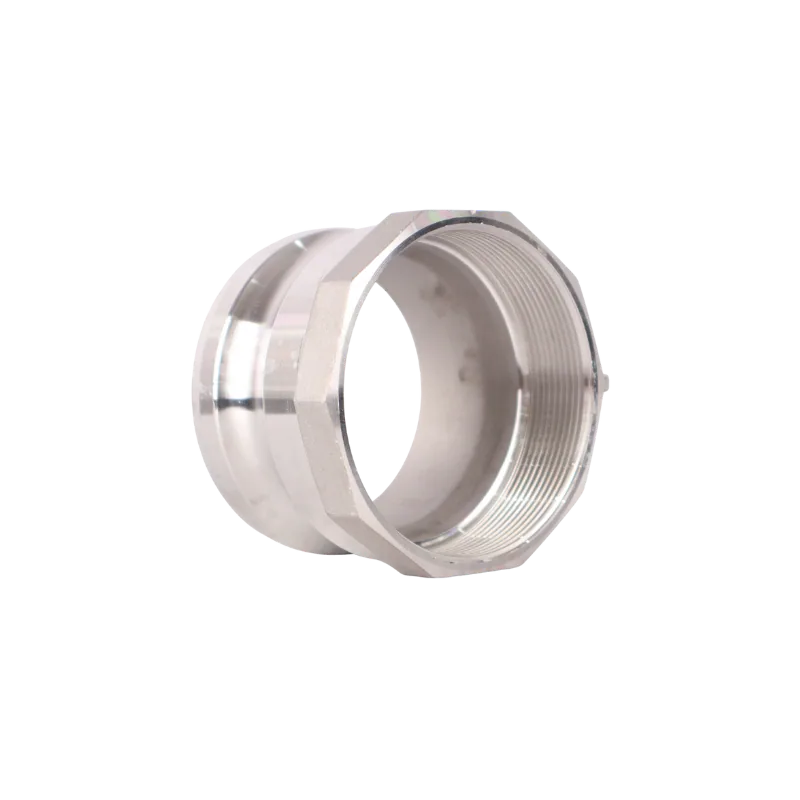

80 mm aluminium camlock Part A male adaptor, 3" female BSP

80 mm Camlock Part A Male Adaptor, 3″ BSP

Name: 80 mm Camlock Part A Male Adaptor, 3" BSP
SKU: KMN-FUEL-0202
Price: 137.03 ZAR
Availability: InStock

SKU KMN-FUEL-0202

80 mm aluminium camlock Part A male adaptor with 3" female BSP thread, for fuel and liquid hoses, delivered from Polokwane across South Africa.

R137,03

3″ (80 mm) type A, male adaptor
Aluminium body with female BSP thread
Tool-free connection of fuel and liquid hoses
Ships at 0.4 kg from Polokwane

Delivered by our own trucks in 1 to 3 days. R550 / R950 / R1,450 by order weight. FREE on orders of R20,000 or more with code KH027. Delivery details

Specifications

Coupling type	Camlock Type A (AA-300), male adaptor
Size	3" (80 mm)
Thread	Female BSP
Material	Aluminium
Max pressure	On request
Mates with	Part D female coupler, 80 mm
Application	Fast, tool-free connection of fuel and liquid hoses
Net weight	0.3 kg
Shipping weight	0.4 kg
Dimensions	90 × 110 × 70 mm

Description

Overview

The 80 mm camlock Part A is the male adaptor half of a cam-and-groove quick coupling: it screws onto pipework, a tank outlet or a hose tail and locks into a Part D coupler in seconds, with no tools. It is cast aluminium with a female BSP thread, sized 3″ (80 mm).

Order it together with the matching 80 mm camlock Part D if you do not already have the mating half. For another size, see the 65 mm camlock Part A.

Camlock joints seal on a gasket in the female coupler, so inspect it for cracks and flat spots before you make up the joint, and use thread sealant on the BSP thread when you screw the fitting onto pipework. Keep both halves clean, because grit on the groove or gasket is the usual cause of weeping joints. Always pair halves of the same size and keep dust caps on fittings that are not in use.

Key features

Type A male adaptor, 3″ (80 mm)
Female BSP thread to screw onto pipework or a fitting
Aluminium body, light to carry and handle
Tool-free connection to a Part D coupler
Weighs 0.3 kg net

Where it works

The 80 mm size is used for larger transfer lines at KZN and Gauteng depots, and for tanker offloads at mines and quarries. Browse the wider fuel station accessories range for dust caps, adaptors and the other camlock sizes.

What’s in the box

1 x 80 mm camlock Part A male adaptor

Delivery and warranty

Kamano delivers with its own trucks from Polokwane to all nine provinces in 1 to 3 days, and delivery is free on orders of R20,000 or more (VAT incl.). This item ships at 0.4 kg, so on a smaller order it falls in the up to 30 kg delivery band at R550. Ask us for the warranty terms on this model.

Questions about this product

What is the difference between camlock Part A and Part D?

Part A is the male adaptor and Part D is the female coupler with cam arms. They lock together to form a sealed joint, so you need one of each in the same size. This 80 mm Part A mates only with an 80 mm Part D.

Do I need the matching Part D as well?

Yes, pair a Part A with a Part D of the same size. If you already have the 80 mm Part D on your hose or tank, you only need this adaptor. If not, order both halves so the joint can be made up on site.

Do you deliver a camlock to a Durban depot?

Yes, we deliver with our own trucks from Polokwane to all nine provinces in 1 to 3 days. This adaptor ships at 0.4 kg, so on a smaller order it falls in the up to 30 kg band at R550. Orders of R20,000 or more (VAT incl.) are delivered free.
