50 mm aluminium camlock Part D female coupler, 2" female BSP

50 mm Camlock Part D Female Coupler, 2″ BSP

Name: 50 mm Camlock Part D Female Coupler, 2" BSP
SKU: KMN-FUEL-0199
Price: 179.55 ZAR
Availability: InStock

SKU KMN-FUEL-0199

50 mm aluminium camlock Part D female coupler with 2" female BSP thread, for fuel and liquid hoses, delivered from Polokwane across South Africa.

R179,55

2″ (50 mm) type D, female coupler
Aluminium body with female BSP thread
Tool-free connection of fuel and liquid hoses
Ships at 0.4 kg from Polokwane

Delivered by our own trucks in 1 to 3 days. R550 / R950 / R1,450 by order weight. FREE on orders of R20,000 or more with code KH027. Delivery details

Specifications

Coupling type	Camlock Type D (DA-200), female coupler
Size	2" (50 mm)
Thread	Female BSP
Material	Aluminium
Max pressure	On request
Mates with	Part A male adaptor, 50 mm
Application	Fast, tool-free connection of fuel and liquid hoses
Net weight	0.3 kg
Shipping weight	0.4 kg
Dimensions	80 × 80 × 80 mm

Description

Overview

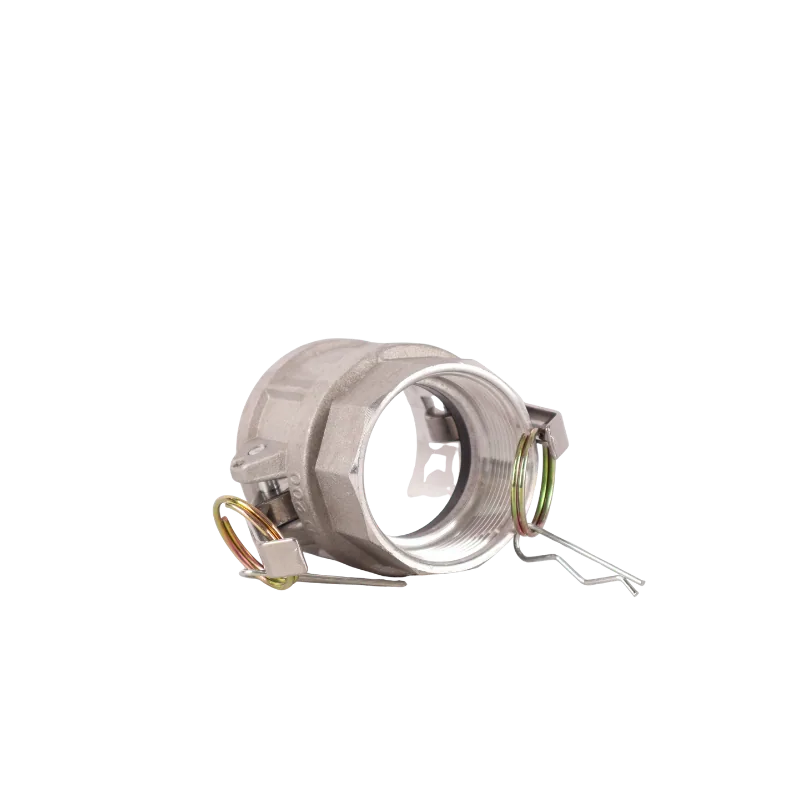

The 50 mm camlock Part D is the female coupler half of a cam-and-groove quick coupling: two cam arms clamp over the groove of a Part A adaptor to make a sealed joint in seconds, with no tools. It is cast aluminium with a female BSP thread, sized 2″ (50 mm).

Order it with the matching 50 mm camlock Part A if you need the mating adaptor. For another size, see the 65 mm camlock Part D.

Camlock joints seal on a gasket in the female coupler, so inspect it for cracks and flat spots before you make up the joint, and use thread sealant on the BSP thread when you screw the fitting onto pipework. Keep both halves clean, because grit on the groove or gasket is the usual cause of weeping joints. Always pair halves of the same size and keep dust caps on fittings that are not in use.

Key features

Type D female coupler, 2″ (50 mm)
Female BSP thread to screw onto a hose tail or pipe
Two cam arms lock onto a Part A adaptor
Aluminium body for easy handling
Weighs 0.3 kg net

Where it works

The 50 mm size is the everyday workhorse on farm diesel tanks, bakkie-mounted tanks and workshop transfer hoses. Browse the wider fuel station accessories range for dust caps, adaptors and the other camlock sizes.

What’s in the box

1 x 50 mm camlock Part D female coupler

Delivery and warranty

Kamano delivers with its own trucks from Polokwane to all nine provinces in 1 to 3 days, and delivery is free on orders of R20,000 or more (VAT incl.). This item ships at 0.4 kg, so on a smaller order it falls in the up to 30 kg delivery band at R550. Ask us for the warranty terms on this model.

Questions about this product

What is a camlock Part D coupler?

Part D is the female coupler with cam arms. It slips over a Part A male adaptor and the arms clamp it into a sealed joint, with no tools. This 50 mm Part D mates only with a 50 mm Part A, so match the size on both sides.

Do I need a Part A as well?

Yes, pair a Part D with a Part A of the same size. If the 50 mm Part A is already fitted to your tank or hose, you only need this coupler. If not, order both so you can make up the joint on site.

Do you deliver a camlock to a Karoo farm?

Yes, we deliver with our own trucks from Polokwane to all nine provinces in 1 to 3 days. This coupler ships at 0.4 kg, so on a smaller order it falls in the up to 30 kg band at R550. Orders of R20,000 or more (VAT incl.) are delivered free.
