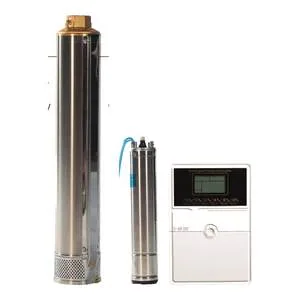

4SD8/20 4 inch stainless steel borehole pump, 3 kW, 126 m head, front view

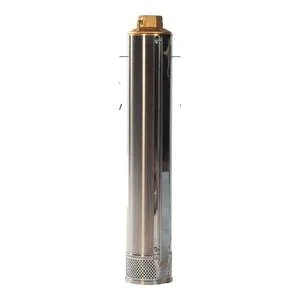

4SD8/20 4 inch stainless steel borehole pump, 3 kW, 126 m head, pump end close-up

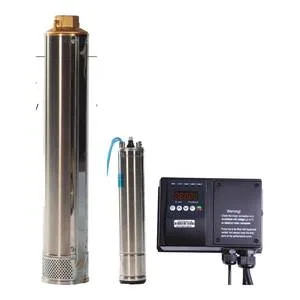

4SD8/20 4 inch stainless steel borehole pump, 3 kW, 126 m head, motor and controller

4SD8/20 4″ Borehole Pump 3 kW, 126 m Max Head

SKU KMN-BORE-0190

The 4SD8/20 is a 4 inch stainless steel borehole pump with a 3 kW motor and 126 m head, for farms, homes and mines, delivered across South Africa.

Price range: R1 800,00 through R18 400,00

Lifts water up to 126 m with a 3 kW motor
Stainless steel 4 inch pump, fits boreholes of 100 mm or more
95 m head at 100 L/min, up to 10.8 m³/h flow
Complete set or pump end only, from R 1,800 VAT incl.

Configuration

Clear

Request Bulk Quote Ask on WhatsApp

Delivered by our own trucks in 1 to 3 days. R550 / R950 / R1,450 by order weight. FREE on orders of R20,000 or more with code KH027. Delivery details

Specifications

Model	4SD8/20 (Vega 4SD8 range)
Flow rate	Nominal 8 m³/h, up to 10.8 m³/h (180 L/min)
Max head / pressure	126 m shut-off head
Duty point	100 L/min at 95 m
Head at 40 L/min	40 L/min at 112 m
Head at max flow	180 L/min at 37 m
Voltage / phase	380 V three-phase, 525 V three-phase (by option)
Power	3 kW oil-filled submersible motor
Pump diameter	4 inch, fits boreholes of 100 mm internal diameter or more
Inlet / outlet	On request
Self-priming	N/A (submersible)
Duty cycle	Run fully submerged, below the dynamic water level
Fluid compatibility	Clean borehole water
Material	Stainless steel pump body and shaft
Net weight	35 kg (heaviest complete set)
Shipping weight	39 kg
Dimensions	On request

Description

Overview

The 4SD8/20 is a 4 inch stainless steel multistage submersible borehole pump from the Vega 4SD8 range, rated for up to 126 m of head with a 3 kW motor. It lifts 112 m at 40 L/min, 95 m at 100 L/min and still holds 37 m at 180 L/min, so it is a mid-range lift pump for farms, homes and small industry.

To size it, add the depth to your water level, the height to your tank and about 10% for pipe friction. Send us your borehole details if you are unsure.

Key features

Stainless steel pump body and shaft
3 kW oil-filled motor, 126 m shut-off head, up to 10.8 m³/h
4 inch body fits boreholes of 100 mm internal diameter or more
Complete sets or pump end only, for replacing a worn wet end

Options

Prices are VAT incl.

380V 3-phase set + Y1 controller, R 7,848: Pump end, 3 kW 380 V three-phase motor, Y1 digital protection controller.
525V 3-phase set + VSD, R 18,400: Pump end, 3 kW 525 V three-phase motor, variable speed drive (VSD).
Pump end only (no motor), R 1,800: Wet end only, no motor, to replace a worn pump end on an existing 3 kW motor.

Submersible cable, rope, delivery pipe and base plate are not included.

Where it works

Suited to farm water supply, tank filling and drip or sprinkler irrigation, including Free State grain farms, KwaZulu-Natal dairy farms and Limpopo citrus blocks. See all our borehole pumps, or compare the 4SD8/17 2.2 kW borehole pump and the 4SD6/20 2.2 kW borehole pump if you need less or more head.

What’s in the box

4SD8/20 pump end (wet end)
3 kW motor and controller or VSD, on the set options
Not included: cable, rope, delivery pipe, base plate

Delivery and warranty

Kamano delivers with its own trucks from Polokwane to all nine provinces in 1 to 3 days, including Johannesburg, Durban, Mbombela, Pietermaritzburg, eMalahleni and Richards Bay. The heaviest set ships at about 39 kg, so delivery falls in the 30 to 60 kg band at R950. Delivery is free on orders of R20,000 or more (VAT incl.). Ask us for the warranty terms on this model.

Questions about this product

Is the 4SD8/20 sold as a complete borehole pump set?

The 4SD8/20 ships as a complete set or as a pump end only, depending on the option you choose. The sets include the 3 kW oil-filled motor and the matching controller or VSD. Submersible cable, rope, delivery pipe and base plate are not included, so allow for those when you plan the installation. Ask us if you want help listing what else you need.

Which controller should I choose for the 4SD8/20?

The 4SD8/20 is supplied with the Y1 digital protection controller on the 380 V three-phase set, which guards the motor. The 525 V set comes with a variable speed drive (VSD) for soft starting and speed control. Choose the pump end only if you already own a working 3 kW motor and just need to replace the wet end. Contact us if you are not sure which power supply you have.

Will the 4SD8/20 fit my borehole?

Yes. The 4SD8/20 is a 4 inch pump, so it fits a borehole with an internal diameter of 100 mm or more. Check the casing first. Then add your water level, the lift to your tank and about 10% for pipe friction. If that total head is below the pump's head at your flow, such as 95 m at 100 L/min, the pump will do the job. Send us your borehole details if you are unsure.

Do you deliver the 4SD8/20 to Johannesburg?

Yes, we deliver the 4SD8/20 with our own trucks from Polokwane in 1 to 3 days, to Johannesburg and every other province. The heaviest set ships at about 39 kg, so the delivery fee is R950 (VAT incl.). Orders of R20,000 or more are delivered free. The pump end alone is much lighter and falls in a lower band.
