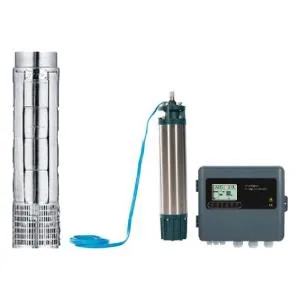

SP17-16 6 inch borehole pump 9.2 kW, 176 m max head, view 1

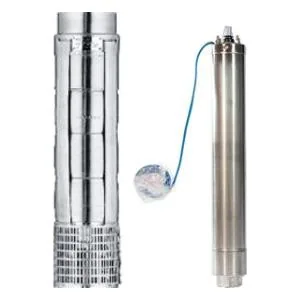

SP17-16 6 inch borehole pump 9.2 kW, 176 m max head, view 2

SP17-16 6 inch borehole pump 9.2 kW, 176 m max head, view 3

SP17-16 6 inch borehole pump 9.2 kW, 176 m max head, view 4

6″ Borehole Pump SP17-16, 9.2 kW, 176 m Max Head, 3-Phase

SKU KMN-BORE-0095

Lifts water up to 176 m: the SP17-16 6" stainless steel multistage submersible borehole pump, 9.2 kW three-phase, delivered across South Africa.

Price range: R7 760,00 through R32 512,00

Up to 176 m head and 24 m³/h, SP17-16 6″ stainless steel multistage
9.2 kW three-phase motor, 380 V or 525 V by option
Complete set or pump end only for replacements
Needs a borehole of 150 mm internal diameter or larger

Configuration

Clear

Request Bulk Quote Ask on WhatsApp

Delivered by our own trucks in 1 to 3 days. R550 / R950 / R1,450 by order weight. FREE on orders of R20,000 or more with code KH027. Delivery details

Specifications

Model	SP17-16 (VP18A-16)
Pump type	Multistage submersible, stainless steel, 6"
Flow range	0 to 24 m³/h (0 to 400 L/min)
Max head / pressure	176 m
Duty point	12 m³/h at 156 m
Performance curve	0 L/min at 176 m; 50 L/min at 175 m; 100 L/min at 172 m; 150 L/min at 167 m; 200 L/min at 156 m; 250 L/min at 140 m; 300 L/min at 120 m; 350 L/min at 92 m; 400 L/min at 61 m
Power	9.2 kW motor
Voltage / phase	380 V or 525 V by option
Motor	6" oil-filled or water-filled, by option
Controller	30Y intelligent controller on 380 V sets; none on 525 V sets
Min borehole diameter	150 mm internal
Inlet / outlet	On request
Self-priming	N/A (submersible)
Fluid compatibility	Clean water
Net weight	92 kg
Shipping weight	107 kg
Dimensions	1280 x 190 x 190 mm

Description

Overview

The SP17-16 (also listed as VP18A-16) is a 6″ stainless steel multistage submersible borehole pump with up to 176 m of head and flows up to 24 m³/h. It belongs to the SP17 range, nominally 17 m³/h, and runs on three-phase power. At 12 m³/h (12,000 litres an hour) it still delivers 156 m head.

Allowing 10% for pipe friction, that suits roughly 141 m of total lift. The borehole must be at least 150 mm inside. Buy it as a complete set, or as a pump end to replace a worn one. See more borehole pumps.

Key features

Stainless steel pump for clean water
176 m shut-off head, 24 m³/h maximum flow
9.2 kW motor, oil-filled (25 bar) or water-filled (35 bar, usually rewindable)
30Y controller on 380 V sets
Pump end sold alone as a replacement

Options

380 V set, oil-filled motor, 30Y controller, R 22,312: pump end, 9.2 kW motor and controller.
380 V set, water-filled motor, 30Y controller, R 22,312: pump end, 9.2 kW motor and controller.
525 V set, oil-filled motor, no starter, R 32,512: pump end and 9.2 kW 525 V oil-filled motor. Your electrician must fit a starter or VSD.
Pump end only, R 7,760: wet end for an existing 9.2 kW 6″ motor.

Cable, rope, delivery pipe and base plate are not included, but ask us to quote them with the pump.

Where it works

Suited to farms, irrigation, game lodges, small community water schemes and large properties with a strong borehole, from Eastern Cape to Mpumalanga. Send us your borehole depth, water level, yield and delivery height and we will confirm the right model before you order. Compare SP17-14 9.2kW borehole pump and SP17-18 11kW borehole pump.

What’s in the box

SP17-16 pump end
9.2 kW motor (sets)
30Y controller (380 V sets)

Delivery and warranty

Kamano delivers with its own trucks from Polokwane in 1 to 3 days to Pretoria, Gqeberha, Rustenburg, Pietermaritzburg, Tzaneen and Welkom. The set ships at about 107 kg (delivery on quotation). Free delivery from R20,000. Large pumps are often supplied to order, so confirm lead time. Ask us for the warranty terms on this model.

Questions about this product

What is the difference between the SP17-16 set and the pump end only?

The set gives you the SP17-16 pump end plus a 9.2 kW 6" three-phase motor and, on 380 V options, a 30Y controller. The pump end only is the wet end, for replacing a worn one on an existing 9.2 kW 6" motor. Cable, rope, delivery pipe and base plate are not included in either.

How deep a borehole suits the SP17-16?

Add your pumping water level, the height up to the tank and about 10% for pipe friction. At its 12 m³/h duty point this pump gives 156 m head, so roughly 141 m of total lift. The borehole must also deliver the flow, so ask your driller for the yield test.

Should I choose an oil-filled or water-filled motor?

Both drive the pump the same way. Oil-filled motors are sealed and rated 25 bar. Water-filled motors are rated 35 bar and can usually be rewound if they burn out, which normally makes repairs cheaper on bigger motors. Tell us your site and we will advise before you order.

Do you deliver the SP17-16 to Gqeberha and Pietermaritzburg?

Yes. Kamano delivers with its own trucks from Polokwane in 1 to 3 days. The set ships at about 107 kg (delivery on quotation). Delivery is free from R20,000 (VAT incl.), and fees over 100 kg are quoted per order.

Why does the 525 V set come without a starter?

The 525 V set is the pump end and motor only. Your electrician must fit a suitable starter panel or VSD, because the 380 V controller does not suit 525 V. If you are not sure which supply you have, ask us before you order.
