4SD8/6 4 inch borehole pump 0.75kW 38m max head

4SD8/6 4 inch borehole pump 0.75kW 38m max head, pump end with stainless steel body

4SD8/6 4 inch borehole pump 0.75kW 38m max head, set with motor and controller

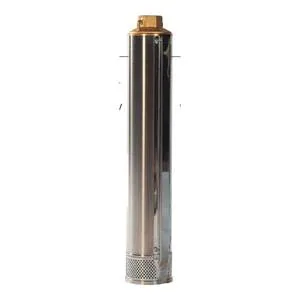

4SD8/6 4 inch borehole pump 0.75kW 38m max head, outlet end and cable guard

4SD8/6 4″ Borehole Pump, 0.75 kW, 38 m Max Head

SKU KMN-BORE-0198

The 4SD8/6 is a 0.75 kW, 38 m head 4 inch borehole pump for farms and homesteads, supplied as a set or pump end only and delivered across South Africa.

Price range: R912,00 through R5 064,00

Lifts water up to 38 m, up to 10.8 m³/h (180 L/min)
4 inch stainless steel multistage pump, 0.75 kW motor
Complete sets for 220 V single-phase, 380 V three-phase or pump end only
From R 912 VAT incl., delivered from Polokwane

Configuration

Clear

Request Bulk Quote Ask on WhatsApp

Delivered by our own trucks in 1 to 3 days. R550 / R950 / R1,450 by order weight. FREE on orders of R20,000 or more with code KH027. Delivery details

Specifications

Model	4SD8/6 (Vega 4SD8 range)
Pump diameter	4 inch, fits boreholes of 100 mm internal diameter or more
Flow rate	Nominal around 8 m³/h, up to 10.8 m³/h (180 L/min)
Max head / pressure	38 m
Duty points	0 L/min at 38 m; 20 L/min at 37 m; 40 L/min at 34 m; 60 L/min at 32 m; 80 L/min at 30 m; 100 L/min at 29 m; 120 L/min at 26 m; 140 L/min at 22 m; 160 L/min at 17 m; 180 L/min at 11 m
Power	0.75 kW oil-filled motor
Voltage / phase	220 V single-phase, 380 V three-phase, by option
Controller	MA analogue control box, 20Y intelligent controller (dry-run protection), Y1 digital protection controller, by option
Inlet / outlet	On request
Self-priming	N/A (submersible)
Duty cycle	On request
Fluid compatibility	Clean borehole water
Pump body and shaft	Stainless steel
Net weight	12.8 kg
Shipping weight	17 kg
Dimensions	420 x 250 x 150 mm

Description

Overview

The 4SD8/6 is a 4 inch stainless steel multistage submersible borehole pump from the Vega 4SD8 range, with a maximum head of 38 m and up to 10.8 m³/h (180 L/min) at lower heads. At 100 L/min it still produces 29 m of head. This 0.75kw 4 inch borehole pump runs on a 0.75 kW oil-filled motor and fits boreholes with an internal diameter of 100 mm or more.

To size it, add the depth to the water level, the height up to your tank and about 10% for pipe friction. At 100 L/min this one suits a water level of roughly 15 m with 10 m of lift above ground. Send us your borehole details if you are unsure.

Key features

Stainless steel pump body and shaft, nominal flow around 8 m³/h
0.75 kW oil-filled motor in every set
Sold as a complete set or pump end only, to swap a worn wet end

Options

Prices include VAT.

220V set + analogue control box, R 3,024: pump end, 0.75 kW 220 V single-phase motor, basic starter.
220V set + 20Y intelligent controller, R 4,560: pump end, 0.75 kW 220 V single-phase motor, dry-run protection for low-yield boreholes.
380V 3-phase set + Y1 controller, R 5,064: pump end, 0.75 kW 380 V three-phase motor, digital protection.
Pump end only (no motor), R 912: wet end only, to replace a worn pump end on an existing 0.75 kW motor.

Where it works

Lifestyle estates and smallholdings in Gauteng and Mpumalanga use this size to fill tanks and run drip lines on vegetable plots. It gives a little more lift than the 0.55 kW pump for a modest step up in motor size. See all borehole pumps, or compare the 4SD8/5 borehole pump and the 4SD8/7 borehole pump.

What’s in the box

The 4SD8/6 pump end
Motor and controller, in the complete-set options

Not included: submersible cable, rope, delivery pipe and base plate.

Delivery and warranty

Kamano delivers with its own trucks from Polokwane to all nine provinces in 1 to 3 days, including Cape Town, Durban, Kimberley, Upington, Gqeberha, Pietermaritzburg and George. Fees follow total order weight: up to 30 kg R550, 30 to 60 kg R950, 60 to 100 kg R1,450, over 100 kg on quotation. The heaviest option ships at about 17 kg, in the R550 band. Orders of R20,000 or more (VAT incl.) ship free. Ask us for the warranty terms on this model.

Questions about this product

Which 4SD8/6 option do I need for my power supply?

Choose the 220 V single-phase sets or the 380 V three-phase set with Y1 controller for your supply. The analogue box is the basic starter and the 20Y adds dry-run protection. Only the options listed under Options apply to this model, and the prices shown include VAT. Send us your supply details if you are unsure which set to order.

How deep can I set the 4SD8/6 in my borehole?

Add the depth to your water level, the height up to your tank and about 10% for friction. At 100 L/min this pump gives 29 m, which suits a water level of roughly 15 m with 10 m of lift above ground. Its shut-off head is 38 m. Deeper than that, you need a higher-head pump.

Do the sets come with cable and delivery pipe?

No. Submersible cable, rope, delivery pipe and the base plate are not included in any option, so add those to your order or supply them yourself. Each set includes only the pump end, motor and controller listed under its option, and the pump end option is the wet end alone.

How much is delivery of the 4SD8/6 to Gqeberha?

We deliver to Gqeberha with our own trucks in 1 to 3 days. Fees follow total order weight. The heaviest set ships at about 17 kg, in the R550 band. A pump end on its own is much lighter. Orders of R20,000 or more are delivered free.
