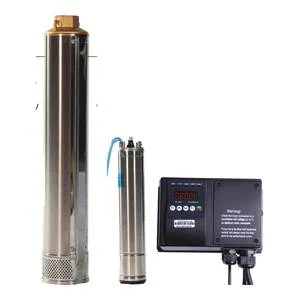

4SD3/52 borehole pump set with controller

4SD3/52 stainless steel pump end close-up

4SD3/52 4-Inch Borehole Pump, 4 kW, 372 m Max Head

SKU KMN-BORE-0232

The 4SD3/52 is a 4-inch stainless steel multistage borehole pump, 4 kW, lifting up to 372 m, supplied as a set or pump end only and delivered across South Africa.

Price range: R2 640,00 through R22 360,00

4-inch stainless steel multistage submersible, 4 kW, up to 372 m head
Flow up to 80 L/min; 10 L/min at 364 m and 40 L/min at 308 m
Choose a set on 380 V three-phase or 525 V three-phase, or the pump end alone from R 2,640 (VAT incl.)
Fits boreholes with an internal diameter of 100 mm or more

Configuration

Clear

Request Bulk Quote Ask on WhatsApp

Delivered by our own trucks in 1 to 3 days. R550 / R950 / R1,450 by order weight. FREE on orders of R20,000 or more with code KH027. Delivery details

Specifications

Pump type	4-inch multistage submersible borehole pump
Model	Vega 4SD3/52
Pump diameter	4 inch, fits boreholes of 100 mm internal diameter or more
Motor power	4 kW
Motor	4 kW 380 V three-phase or 525 V three-phase, oil-filled, by option
Controller	Y1 digital protection controller (380 V), VSD (525 V)
Shut-off head	372 m
Maximum flow	80 L/min (4.8 m³/h)
Duty points	10 L/min at 364 m, 20 L/min at 352 m, 30 L/min at 332 m, 40 L/min at 308 m, 50 L/min at 276 m, 60 L/min at 224 m, 70 L/min at 172 m, 80 L/min at 100 m
Nominal flow	around 3 m³/h
Material	Stainless steel pump body and shaft
Self-priming	N/A (submersible)
Not included	Submersible cable, rope, delivery pipe and base plate
Weight note	Estimated, confirm before dispatch
Net weight	46 kg
Shipping weight	54 kg
Dimensions	On request

Description

Overview

The 4SD3/52 is a 4-inch stainless steel multistage submersible borehole pump with a 4 kW motor rating, a shut-off head of 372 m and a flow of up to 80 L/min. It comes from the Vega 4SD3 range, which has a nominal flow of around 3 m³/h, and it fits boreholes with an internal diameter of 100 mm or more.

On the performance curve it still delivers 40 L/min at 308 m, and 10 L/min at 364 m at the lighter end. It is aimed at very deep boreholes and high-lift supply to distant reservoirs, the kind of job where a light pump simply runs out of head.

Key features

Stainless steel pump body and shaft for long life in borehole water
Shut-off head of 372 m, with 40 L/min at 308 m at the middle of the curve
Y1 digital protection controller supplied with the three-phase sets
Pump end sold separately to fit an existing 4 kW motor

Options

Prices are VAT incl.

380V three-phase set with Y1 controller, R 9,928: pump end, 4 kW 380 V three-phase motor and Y1 protection controller.
525V three-phase set with VSD, R 22,360: pump end, 4 kW 525 V three-phase motor and variable speed drive.
Pump end only, R 2,640: wet end only, to replace a worn pump end on an existing 4 kW motor.

Where it works

Typical jobs include deep Northern Cape and Karoo boreholes, mine water supply and large farms feeding reservoirs far from the pump. Browse more in our borehole pumps range, or compare the 4SD4/10 borehole pump (0.75 kW) and the 4SD4/21 borehole pump (2.2 kW).

To size it, add your water level depth, the height up to your tank and about 10% for pipe friction. The pump head at your flow must beat that total.

What’s in the box

4SD3/52 pump end
Motor and controller, per set chosen
Cable, rope, pipe and base plate not included

Delivery and warranty

Kamano delivers with its own trucks from Polokwane to all nine provinces in 1 to 3 days, including Durban, Pietermaritzburg, Richards Bay, Johannesburg and Kimberley. The heaviest option ships at about 54 kg, which falls in the R950 delivery band. Delivery is free on orders of R20,000 or more (VAT incl.). Ask us for the warranty terms on this model.

Questions about this product

Which 4SD3/52 option should I buy?

Choose the 380 V set if you have three-phase power, with the Y1 digital protection controller included. The 525 V set with VSD suits sites that want variable speed control. If you are replacing a worn pump end on an existing 4 kW motor, buy the pump end only.

Does the price include cable and delivery pipe?

No. The sets cover the pump end, motor and controller only. Submersible cable, rope, delivery pipe and the base plate are not included, so allow for those when you plan the installation. We can help you work out the lengths if you send us your borehole depth.

Will the 4SD3/52 fit my borehole?

Yes, if the internal diameter is 100 mm or more. It is a 4-inch pump. Check the casing size and the water level first, then add the height to your tank and about 10% for friction, and compare that total head with the curve of 372 m at shut-off.

How much is delivery to Pietermaritzburg?

We deliver to Pietermaritzburg from Polokwane in 1 to 3 days. The heaviest option ships at about 54 kg, so it falls in the R950 delivery band. Fees go by total order weight: up to 30 kg R550, 30 to 60 kg R950, 60 to 100 kg R1,450, over 100 kg on quotation. Orders of R20,000 or more ship free.
