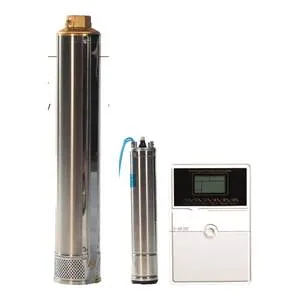

4SD2/65 4 inch stainless steel borehole pump, 5.5 kW, 460 m head

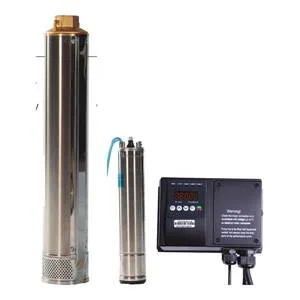

4SD2/65 multistage pump end, stainless steel body, up to 55 L/min

4SD2/65 borehole pump set with 5.5 kW motor and controller

4SD2/65 4″ Borehole Pump, 5.5 kW, 460 m Max Head

SKU KMN-BORE-0246

4SD2/65 4-inch stainless steel borehole pump, 5.5 kW, up to 460 m head, as a full set or pump end, delivered across South Africa.

Price range: R4 200,00 through R28 904,00

Lifts up to 460 m, up to 55 L/min
5.5 kW motor sets or pump end only
Stainless steel body and shaft, fits 100 mm boreholes and up
Sets from R 12,544, pump end R 4,200 (VAT incl.)

Configuration

Clear

Request Bulk Quote Ask on WhatsApp

Delivered by our own trucks in 1 to 3 days. R550 / R950 / R1,450 by order weight. FREE on orders of R20,000 or more with code KH027. Delivery details

Specifications

Model	4SD2/65, 4-inch stainless steel multistage
Flow rate	Up to 3.3 m³/h (55 L/min)
Max head / pressure	460 m shut-off head
Duty points	0 L/min at 460 m; 5 L/min at 455 m; 10 L/min at 453 m; 15 L/min at 447 m; 20 L/min at 433 m; 25 L/min at 417 m; 30 L/min at 390 m; 35 L/min at 366 m; 40 L/min at 336 m; 45 L/min at 294 m; 50 L/min at 255 m; 55 L/min at 208 m
Voltage / phase	380 V three-phase; 525 V three-phase, by option
Power	5.5 kW oil-filled motor on set options
Inlet / outlet	On request
Self-priming	N/A (submersible)
Duty cycle	On request
Fluid compatibility	Water from boreholes
Material	Stainless steel pump body and shaft
Minimum borehole diameter	100 mm internal
Controller	By option: Y1 digital protection controller or variable speed drive
Net weight	50 kg
Shipping weight	58 kg
Dimensions	2620 × 130 × 130 mm

Description

Overview

The 4SD2/65 is a 4-inch stainless steel multistage submersible pump that lifts water up to 460 m, with flows up to 3.3 m³/h (55 L/min), on a 5.5 kW motor. Buy this 5.5kw borehole pump as a complete set for your power supply or as a pump end only. It fits boreholes with an internal diameter of 100 mm or more.

To size it, add water depth, height to your tank and about 10% for pipe friction. The pump’s head at your flow must exceed that total. Browse the whole range in our borehole pumps category.

Key features

Stainless steel pump body and shaft
Shut-off head 460 m, 25 L/min at 417 m
Pump end only option for replacing a worn wet end

Options

380V 3-phase set + Y1 controller: pump end, 5.5 kW 380 V three-phase oil-filled motor, Y1 digital protection controller. R 12,544.
525V 3-phase set + VSD: pump end, 5.5 kW 525 V three-phase oil-filled motor, variable speed drive (VSD). R 28,904.
Pump end only (no motor): wet end only, to replace a worn pump end on an existing 5.5 kW motor. R 4,200.

Prices include VAT. Cable, rope, delivery pipe and base plate are not included.

Where it works

A deep-borehole specialist for low-yield holes on Limpopo and North West farms, game lodges and remote mine camps where the water level is very deep. At 25 L/min it still delivers 417 m. See also the 4SD2/21 1.1 kW borehole pump, 149 m head or the 4SD2/15 0.75 kW borehole pump, 106 m head.

What’s in the box

4SD2/65 pump end
Motor and controller as per your option

Delivery and warranty

Kamano delivers with its own trucks from Polokwane to all nine provinces in 1 to 3 days, including Johannesburg, Pretoria, Cape Town, Durban, Gqeberha and Bloemfontein. Delivery is free on orders of R20,000 or more (VAT incl.). The heaviest option of this model ships at about 58 kg. A load this heavy falls in the R950 delivery band (VAT incl.). Ask us for the warranty terms on this model.

Questions about this product

Which 4SD2/65 set suits my power supply?

The 4SD2/65 comes as a set for 380 V three-phase or 525 V three-phase, plus a pump end only for an existing 5.5 kW motor. Both sets need a three-phase supply, so match the set to the voltage you have on site. Tell us your supply and we will confirm the right set before you pay.

How deep can I run the 4SD2/65 at 25 L/min?

At 25 L/min it delivers 417 m of head, and 460 m at zero flow. Add the depth to your water level, the height to your tank and about 10% for pipe friction, then make sure the head at your flow is higher than that. Send us your borehole details if you want us to check it.

Do you deliver the 4SD2/65 to Johannesburg and Pretoria?

Yes. We deliver with our own trucks from Polokwane to Johannesburg, Pretoria and every other province in 1 to 3 days. The heaviest option ships at about 58 kg, which falls in the R950 band. Orders of R20,000 or more (VAT incl.) ship free. Cable, rope, pipe and base plate are not included.
