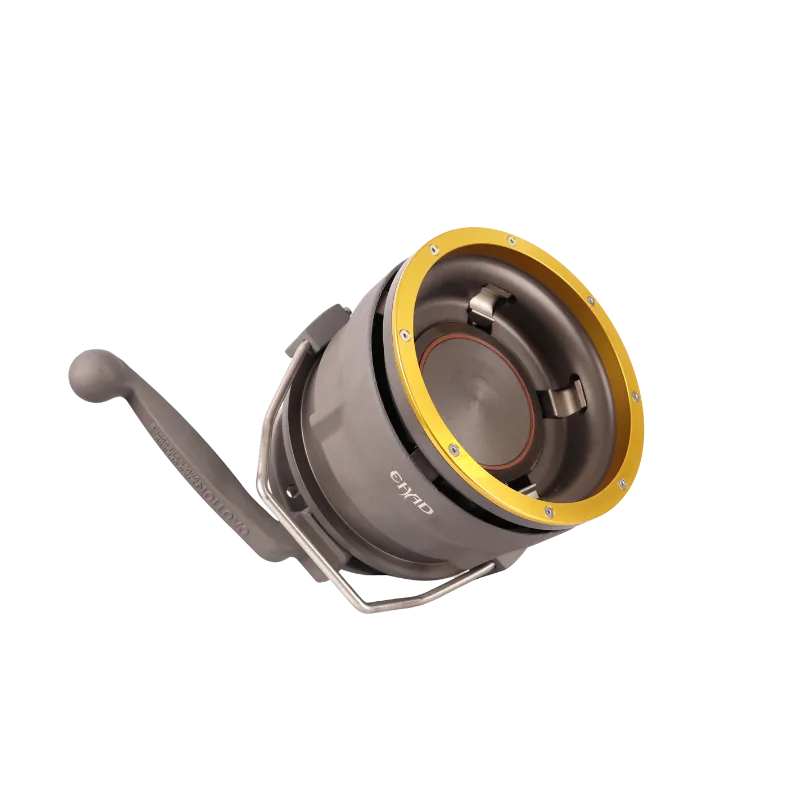

4-inch API RP1004 female bottom-loading coupler with quick-release handle

4-Inch API Bottom-Loading Female Coupler, Semi-Automatic

Name: 4-Inch API Bottom-Loading Female Coupler, Semi-Automatic
SKU: KMN-FUEL-0187
Price: 14836.50 ZAR
Availability: InStock

SKU KMN-FUEL-0187

A 4-inch API RP1004 semi-automatic female coupler for bottom loading road tankers, in hard-anodised aluminium, delivered to depots across South Africa.

R14 836,50

4-inch API RP1004 female bottom-loading coupler
Semi-automatic with quick-release handle and interlock
5 bar working pressure, up to 135 m3/h (600 GPM)
Hard-anodised aluminium, 9.0 kg

Delivered by our own trucks in 1 to 3 days. R550 / R950 / R1,450 by order weight. FREE on orders of R20,000 or more with code KH027. Delivery details

Specifications

Size	4-inch API RP1004 female
Max working pressure	5 bar (75 psi)
Max flow	135 m3/h (600 GPM)
Temperature range	-30 to +80 degrees Celsius
Material	Hard-anodised aluminium body, stainless steel parts, Viton/EPDM seals
Operation	Semi-automatic, quick-release handle with interlock
Net weight	9.0 kg
Shipping weight	10.0 kg
Dimensions	On request

Description

Overview

This 4-inch API female coupler connects a loading arm or hose to the bottom-loading adaptor on a road tanker. It is a semi-automatic design with a quick-release handle and interlock, rated for 5 bar working pressure and flows up to 135 m3/h (600 GPM). The body is hard-anodised aluminium with stainless steel parts and Viton and EPDM seals, and the whole coupler weighs 9.0 kg.

Key features

4-inch API RP1004 bottom-loading interface
Semi-automatic operation with quick-release handle and interlock
Maximum working pressure of 5 bar (75 psi)
Maximum flow of 135 m3/h (600 GPM)
Temperature range of -30 to +80 degrees Celsius
Hard-anodised aluminium body, stainless steel parts, Viton and EPDM seals

Where it works

Bottom loading is standard on fuel depots, bulk terminals and tanker fleets. Typical users are fuel distributors loading from depots in Gauteng and KZN, mine bulk stores in Mpumalanga and Limpopo, and transport companies filling their own tankers. Fit it to the loading arm, and protect the tanker adaptor with a lockable API dust cap when idle. Related fuel equipment includes the MFD-80 mobile fuel unit. See more in our fuel station accessories range. Fluid compatibility depends on the seals, so ask us before using it with anything other than diesel or petrol products.

What’s in the box

1 x 4-inch API female coupler

Delivery and warranty

Kamano delivers with its own trucks from Polokwane to all nine provinces in 1 to 3 days. Orders of R20,000 or more ship free. The shipping weight is 10 kg, which falls in the up to 30 kg band at R550 when ordered alone. Ask us for the warranty terms on this model.

Questions about this product

What does a 4-inch API female coupler connect to?

It connects to a 4-inch API RP1004 bottom-loading adaptor on a road tanker. The coupler is the female half on the loading arm or hose, and the tanker carries the male adaptor. Check your adaptor is the 4-inch API type before ordering.

What fluids is it suitable for?

The seals are Viton and EPDM, and the body is hard-anodised aluminium with stainless steel parts. That suits normal fuel handling, but compatibility depends on the exact product. Tell us what you load and we will confirm before you order, especially for chemicals or biofuel blends.

How much is delivery to a depot in Gauteng?

The coupler ships at 10.0 kg, so it falls in the up to 30 kg band at R550 if it is the only item in the order. Our own trucks deliver from Polokwane to all nine provinces in 1 to 3 days. Delivery is free once your order total reaches R20,000 including VAT, so add other fittings to qualify.
