Stainless Steel Proving Measure, 200 L, Grade 2, 200 ml Graduations

Description

Overview

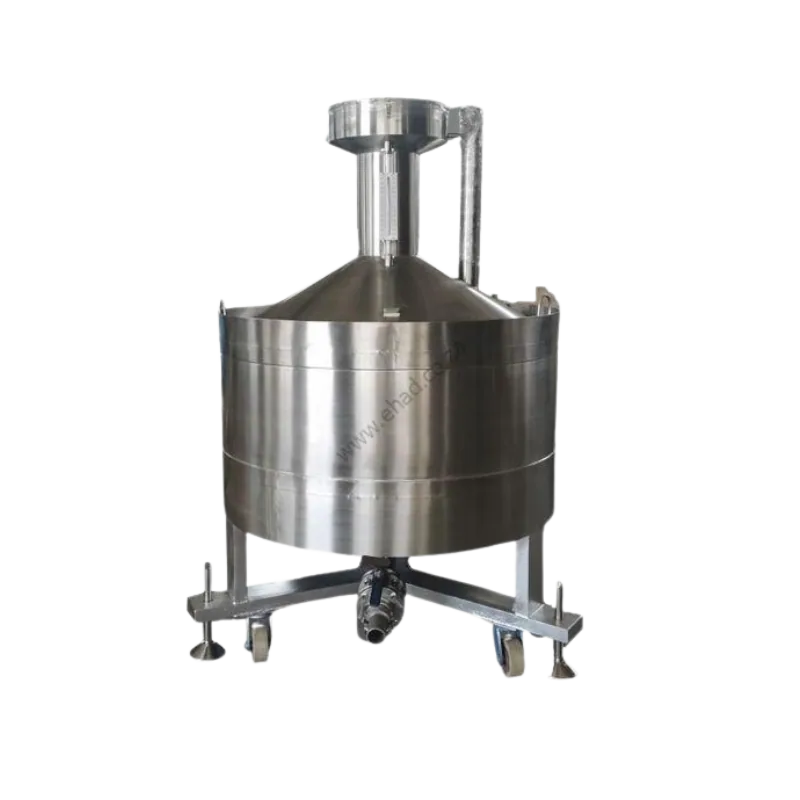

This 200 L stainless steel proving measure is built for calibrating bulk fuel meters, such as those on bowsers, tankers and mobile fuel units. It is made from 304 stainless steel, with 316 available as an option, and graduated every 200 ml in grade 2 with a 0.1% tolerance. The opening is 296 mm, wide enough to take a high-flow nozzle without splashing. You run a metered volume into the measure and read the level against the graduations to see how far the meter is out. It is a heavy fixture, standing about 1.5 metres tall, so plan where it will sit and how you will move it.

Key features

• 200 L capacity with 200 ml graduations
• 304 stainless steel, 316 on request
• Grade 2, 0.1% tolerance
• 296 mm opening for fast filling
• Net weight 98.5 kg, 830 x 830 x 1530 mm

Where it works

Fuel distributors in Gauteng and KZN, mining fleets in Mpumalanga, and large farms in the Free State and Limpopo use proving measures of this size to check bulk meters before they bill by volume. It pairs naturally with high-flow transfer equipment such as the MFD-80 explosion-proof mobile fuel unit and the MFD-50 explosion-proof mobile fuel unit. See the rest of our fuel station accessories for smaller measures and spares.

What’s in the box

• 1 stainless steel proving measure, 200 L

Delivery and warranty

Kamano delivers with its own trucks from Polokwane to all nine provinces in 1 to 3 days. Delivery is free on orders of R20,000 or more (VAT incl.). The shipping weight is 115 kg, so freight is quoted for this item. Ask us for the warranty terms on this model.
