1400 L vertical water tank combo with 0.75 kW booster pump, UV light and filters

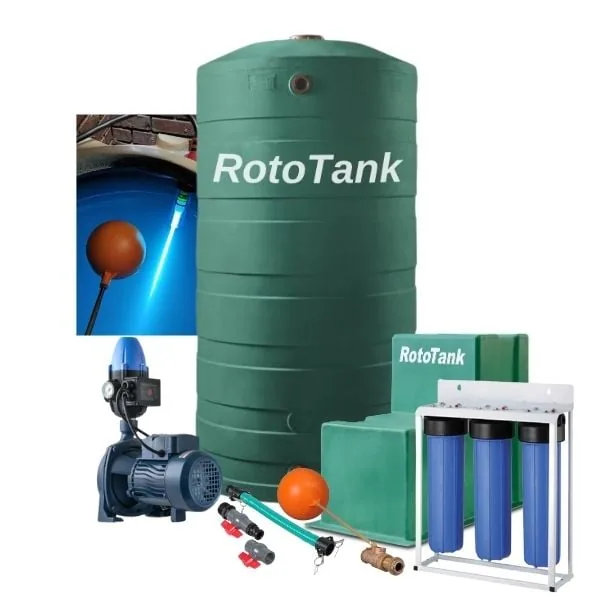

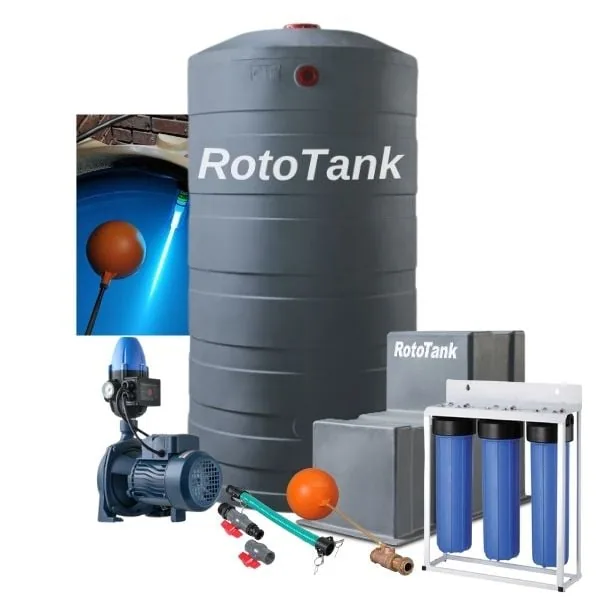

1400 L tank, booster pump, pump cover and hose kit supplied together

Pump, pump cover, suction hose kit and float valve kit supplied with the tank

1400 L Water Tank Combo, 0.75 kW Booster Pump, UV and Triple Filter

SKU KMN-WATR-0484

A 1400 L vertical tank supplied with a 0.75kW booster pump, UV-C light and triple 20-inch filters, delivered to your property anywhere in South Africa.

R11 496,00

Tank, pump, in-tank UV-C light and triple filter set in one order
1400 L vertical tank, 1000 mm wide and 2000 mm high
Pump: 0.75 kW (1 HP), 120 L/min, 32 m head
Green, Grey or Tan, from R 11,496 VAT incl.
Installation not included

Colours

Clear

Request Bulk Quote Ask on WhatsApp

Delivered by our own trucks in 1 to 3 days. R550 / R950 / R1,450 by order weight. FREE on orders of R20,000 or more with code KH027. Delivery details

Specifications

Tank capacity	1400 litres
Tank type	Vertical round, above-ground, stationary use
Tank material	Food-grade LLDPE, rotationally moulded, UV resistant, BPA free, black inner liner
Tank size (diameter x height)	1000 mm x 2000 mm
Tank weight	35 kg
Tank fittings	40 mm inlet (top), 40 mm outlet (base), 180 mm lid
Pump	0.75 kW booster pump with controller (CPM158)
Power	0.75 kW (1 HP)
Flow rate	120 L/min
Max head	32 m
Voltage / phase	220 to 230 V, 50 Hz, single-phase
Inlet / outlet	On request
Suction lift	7 m
Max pressure	3.2 bar
Pump construction	Cast iron body and motor support, brass impeller, ceramic and graphite seal, 100% copper winding
Duty cycle	Continuous duty, liquid up to 60 C, ambient up to 40 C
Suction hose kit	25 mm hose, 300 mm long, with 2 x 25 mm ball valves and quick couplers
Float valve kit	20 mm brass valve, 150 mm float
Pump cover	500 x 370 x 670 mm
UV-C light	55 W submersible, in-tank
Filters	Triple 20-inch Big Blue set in a frame
Warranty	Tank: 1 to 2 years, depending on the model
Net weight	61.5 kg
Shipping weight	65.5 kg
Dimensions	1000 x 1000 x 2000 mm

Description

Overview

If you need 1400 litres of storage and a pump to push it through the taps, this combo covers both. The pump is a 0.75 kW (1 HP) end-suction booster pump, model CPM158, with a DSK2 flow controller, good for 120 L/min and a 32 m head.

The tank is rotationally moulded food-grade LLDPE, UV resistant and BPA free, with a black inner liner against algae. The CPM158 is a single-impeller end-suction centrifugal with a DSK2 flow controller. It runs continuously on water up to 60 C. The body is cast iron, the impeller brass, the seal ceramic and graphite, and the winding 100% copper.

Three 20-inch Big Blue filters remove sand, rust, mud and chlorine, and a 55 W UV-C light in the tank treats the stored water.

Key features

1400 L vertical tank, 1000 mm x 2000 mm, 35 kg
0.75 kW (1 HP) CPM158 pump, 120 L/min, 32 m head, 3.2 bar
DSK2 flow controller starts and stops the pump
Triple 20-inch filter set and 55 W in-tank UV-C light
Suction hose kit and float valve kit with 20 mm brass valve
Pump cover keeps the weather off

Options

Choose the tank colour: Green, Grey or Tan. Every colour is R 11,496 (VAT incl.).

Where it works

This combo suits rainwater harvesting off a roof, a household backup supply, garden taps and small plots, and it is popular with Free State farmsteads. Fill the tank from the municipal feed or from roof runoff, then run the taps from the pump. It needs a firm, level base.

What’s in the box

1400 L vertical water tank
Booster pump with controller
Pump cover
Suction hose kit
Float valve kit
55 W UV-C light with install kit
Triple 20-inch filter set

Delivery and warranty

Kamano delivers with its own trucks from Polokwane to all nine provinces in 1 to 3 days, including George, eMalahleni, Mahikeng, Welkom, Johannesburg and Cape Town. It ships at about 65.5 kg, a R1,450 delivery (VAT incl.), free on orders of R20,000 or more. Installation is not included. Tank warranty: 1 to 2 years, depending on the model. Ask us for the pump warranty terms.

More in tank and pump combo kits. Related: 1400 L tank with RUC-750 pump, UV and filters and 1400 L tank with HMS750 pump, UV and filters.

Questions about this product

Is installation included?

No, installation is not included. The kit comes with the suction hose kit, float valve kit and pump cover, so a plumber or a handy owner can connect it. Place the tank on a firm, level base first, fit the float valve to your feed line, then connect the pump suction and your outlet pipework. Tank stands are not part of this price.

Do you deliver this combo to eMalahleni?

Yes. Kamano delivers with its own trucks from Polokwane to all nine provinces, including eMalahleni and George, in 1 to 3 days. At about 65.5 kg shipping weight, this combo falls in the R1,450 delivery band (VAT incl.). Orders of R20,000 or more are delivered free. We deliver to the property entry point.

What pressure does this pump give?

The 0.75 kW pump gives a maximum head of 32 m, which is about 3.2 bar. That is enough for a house, including a double-storey with a gentle run, plus garden taps. The controller starts the pump when a tap opens and stops it when flow stops. For more head, look at the 1.1 kW combo.

Do I need the filters for the UV light to work?

Yes, use them together. UV-C treats water best when particles are filtered out first, so the triple Big Blue filters go ahead of the taps and the 55 W light sits in the tank. Draw water slowly enough for contact time, and add tank or UV capacity if your daily use is high.

Nationwide delivery from Polokwane

Delivered to all nine provinces in 1 to 3 days

We deliver the 1400 L Water Tank Combo, 0.75 kW Booster Pump, UV and Triple Filter with our own trucks to Johannesburg, Pretoria, Cape Town, Durban, Gqeberha, Bloemfontein, Polokwane, Mbombela, Stellenbosch, Welkom, Thohoyandou, Kimberley, Rustenburg and eMalahleni, and to farms, mines and sites in between. This item ships in the R1,450 delivery band (60 to 100 kg). Orders of R20,000 or more deliver free with code KH027.
