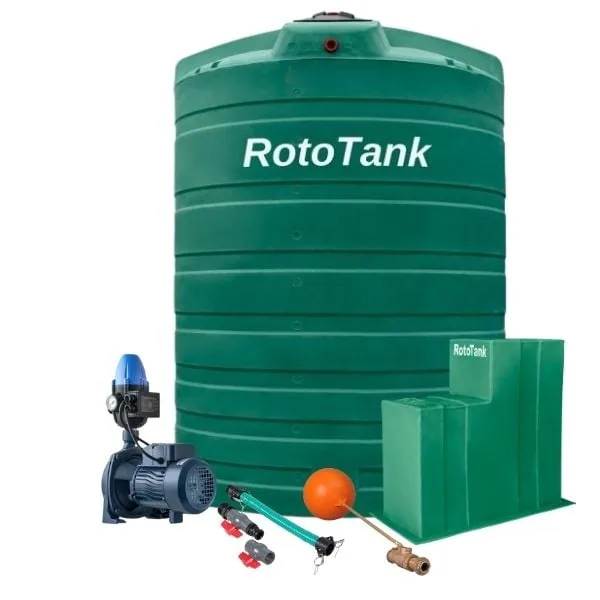

10 000 L water tank in green, grey and tan colour options

10 000 L Tank and 1.1 kW Booster Pump Combo with Controller, 32 mm Kit

SKU KMN-WATR-0501

A 10 000 L vertical water tank with a 1.1 kW booster pump and controller for large homes and farms, delivered across South Africa.

R16 946,00

10 000 L tank and 1.1 kW booster pump with controller
Up to 120 L/min at 44 m head, 8 m suction lift
32 mm suction hose kit and float valve kit
Tank 2200 mm wide x 3000 mm high
Sized for a 6 to 8 person home with 2 to 3 bathrooms

Colour

Clear

Request Bulk Quote Ask on WhatsApp

Delivered by our own trucks in 1 to 3 days. R550 / R950 / R1,450 by order weight. FREE on orders of R20,000 or more with code KH027. Delivery details

Specifications

Tank capacity	10 000 L
Tank material	Food-grade LLDPE with black inner liner, UV stabilised
Tank size	2200 mm diameter x 3000 mm high
Tank fittings	40 mm red top inlet, 40 or 50 mm yellow base outlet, 450 mm lid
Pump	1.1 kW (1.5 HP) booster pump with controller
Voltage / phase	220 V, 50 Hz
Motor speed	2850 rpm
Max flow	120 L/min
Max head	44 m
Suction head	8 m
Inlet / outlet	32 mm inlet, 25 mm outlet
Suction hose kit	32 mm x 300 mm hose, 2 ball valves, quick couplers, reducing nipple 32 to 40 mm
Float valve kit	150 mm float, 20 mm brass flat valve, fittings and tape
Pump cover	765 x 370 x 700 mm
Colours	Green, Grey or Tan, by option
Installation	Not included
Warranty	Tank: 1 to 2 years, depending on the model
Net weight	203 kg
Shipping weight	210 kg
Dimensions	2200 x 2200 x 3000 mm

Description

Overview

This 10 000 L tank and pump combo is a complete storage and pressure package for a large home, a farm or a small commercial site. A vertical 10 000 L tank comes with a 1.1 kW (1.5 HP) booster pump and controller, a pump cover, a 32 mm suction hose kit and a float valve kit. The seller describes it as suitable for a 6 to 8 person home with 2 to 3 bathrooms.

The tank is rotationally moulded from food-grade, UV-stabilised LLDPE, with a black inner liner that helps reduce algae growth. It measures 2200 mm across and 3000 mm high, weighs 180 kg and has a 450 mm lid. The pump delivers up to 120 L/min at a maximum head of 44 m, with an 8 m suction lift, a 32 mm inlet, a 25 mm outlet and a motor speed of 2850 rpm on 220 V, 50 Hz.

Key features

1.1 kW booster pump with controller for automatic operation
32 mm hose kit with ball valves, quick couplers and a reducing nipple to the 40 mm tank outlet
40 mm top inlet and a 40 or 50 mm base outlet on yellow and red connectors
Ribbed walls and black inner liner
Brass float valve kit for a municipal or borehole feed
Tank is for above-ground, stationary use only

Options

Choose the tank colour: Green, Grey or Tan. Each is R 16,946 (VAT incl.) with the same pump, controller and kits.

Where it works

A tank this size gives a Gauteng family real municipal backup, stores a full season of rainwater on a Mpumalanga homestead, or supplies stock water on a Limpopo farm. Because it is a large tank, check your site for the height and diameter before ordering and prepare a firm, level base. Installation is not included. Compare the 10 000 L tank with a 1.1 kW monoblock pump or the 10 000 L combo with UV light and filters, and see all tank and pump combos.

What’s in the box

1 x vertical 10 000 L water tank
1 x 1.1 kW booster pump with controller
1 x pump cover
1 x 32 mm suction hose kit
1 x float valve kit

Delivery and warranty

Kamano delivers with its own trucks from Polokwane to all nine provinces in 1 to 3 days, including Johannesburg, Durban, Bloemfontein, Rustenburg, Mbombela and Upington. At about 210 kg shipping weight, this combo is over 100 kg, so delivery is on quotation. Orders of R20,000 or more are delivered free. Tank warranty: 1 to 2 years, depending on the model. Ask us for the warranty terms on the pump.

Questions about this product

Will a 10 000 L tank fit on my property?

It is 2200 mm across and 3000 mm high, so you need a level, firm base at least that wide, and clear height for the truck and for fitting the lid. Check access, overhead lines and the route to the base before ordering.

How do I get a tank this heavy offloaded?

The tank itself weighs 180 kg, and the combo ships at about 210 kg. Arrange people at your site to help offload and position it, as moving the tank is the client's responsibility. Ask us about access when you request your delivery quote.

How is delivery priced to Upington?

Shipping weight is about 210 kg, over 100 kg, so delivery is on quotation. Send us your address for a price. Our own trucks run from Polokwane and arrive in 1 to 3 days. Orders of R20,000 or more are delivered free.
