SP46-11 6 inch stainless steel borehole pump, 18.5 kW, 147 m head

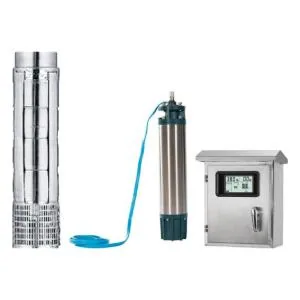

SP46-11 borehole pump complete set with 18.5 kW motor and controller

SP46-11 borehole pump end, 11 stages, stainless steel

SP46-11 6″ Borehole Pump, 18.5 kW, 147 m Max Head

SKU KMN-BORE-0059

Stainless steel 18.5 kW 6 inch submersible borehole pump, lifting up to 147 m, supplied as a set or pump end only and delivered nationwide from Polokwane.

Price range: R10 336,00 through R33 424,00

Up to 147 m head and 66 m³/h, with 36 m³/h at 110 m
Stainless steel 11-stage pump end for a 18.5 kW 6 inch motor, three-phase
Choose a complete set or a pump end to refit an existing motor
Fits boreholes of 150 mm internal diameter and up
From R 10,336 VAT incl., delivered from Polokwane

Configuration

Clear

Request Bulk Quote Ask on WhatsApp

Delivered by our own trucks in 1 to 3 days. R550 / R950 / R1,450 by order weight. FREE on orders of R20,000 or more with code KH027. Delivery details

Specifications

Series	SP46 stainless steel multistage, VP48A-11
Stages	11
Pump diameter	6 inch, needs a borehole of at least 150 mm internal diameter
Motor power	18.5 kW three-phase
Voltage	380 V three-phase (pump end only option has no motor)
Motor type	Oil-filled or water-filled, by option
Shut-off head	147 m
Duty point 1	300 L/min (18 m³/h) at 135 m
Duty point 2	600 L/min (36 m³/h) at 110 m
Duty point 3	900 L/min (54 m³/h) at 76 m
Maximum listed flow	66 m³/h (1100 L/min) at 40 m
Controller	30A intelligent pump controller on 380 V sets
Construction	Stainless steel
Self-priming	N/A (submersible)
Fluid compatibility	Clean water
Net weight	132 kg
Shipping weight	153 kg
Dimensions	1970 x 170 x 170 mm

Description

Overview

The SP46-11 (also listed as VP48A-11) is an 11-stage stainless steel multistage submersible pump for 6 inch boreholes, built around an 18.5 kW motor. It lifts water up to 147 m and moves up to 66 m³/h, and it gives 36 m³/h (36 000 litres per hour) at 110 m head. The SP46 range is rated at about 46 m³/h nominal flow and suits deeper boreholes where the water level sits well below surface.

Key features

Stainless steel multistage pump end, 11 stages
18.5 kW three-phase motor, 380 V
Duty points: 135 m at 18 m³/h, 110 m at 36 m³/h, 76 m at 54 m³/h
6 inch diameter, needs a borehole of at least 150 mm internal diameter

Options

3 configurations, prices VAT incl.

380V set + oil-filled motor + 30A controller (R 33,424): SP46-11 pump end + 18.5kW 380V three-phase oil-filled 6″ motor + 30A intelligent pump controller.
380V set + water-filled motor + 30A controller (R 33,424): SP46-11 pump end + 18.5kW 380V three-phase water-filled 6″ motor + 30A intelligent pump controller.
Pump end only (no motor) (R 10,336): SP46-11 pump end (wet end) only, to replace a worn pump end on an existing 18.5kW 6″ motor.

Oil-filled motors are sealed, rated 25 bar. Water-filled motors are rated 35 bar and can usually be rewound.

Where it works

Common for coal-field mine dewatering and potable supply in Mpumalanga, and with municipalities for community supply schemes. Compare the SP46-10 (VP48A-10) 6″ Borehole Pump 15kW – 134m Max Head and the SP46-12 (VP48A-12) 6″ Borehole Pump 18.5kW – 161m Max Head, or browse all borehole pumps. Send us your water level, yield and delivery height and we will confirm the model.

What’s in the box

SP46-11 stainless steel pump end
18.5 kW 6 inch three-phase motor, on set options
30A intelligent pump controller, on 380 V set options

Not included: cable, rope, delivery pipe, base plate. Often supplied to order, so ask us for lead time.

Delivery and warranty

Kamano delivers with its own trucks from Polokwane to all nine provinces in 1 to 3 days, including Tzaneen, Polokwane, Mbombela, eMalahleni, Pretoria, Mahikeng and Johannesburg. The heaviest set ships at about 153 kg, so delivery is on quotation; the pump end alone ships at about 44 kg (fee R950). Free delivery from R20,000. Ask us for the warranty terms on this model.

Questions about this product

What size borehole does the SP46-11 need?

The SP46-11 is a 6 inch pump and needs a borehole with an internal diameter of at least 150 mm. Check your casing size with your driller before you order. Also get the yield-test result, because the pump must not outrun what the borehole can deliver or it will run dry.

Oil-filled or water-filled motor, which should I pick?

Both drive the pump the same way. Oil-filled motors are sealed units rated 25 bar. Water-filled motors are rated 35 bar and can usually be rewound if they burn out, which normally makes repairs cheaper on bigger motors. For a 18.5 kW motor, ask us if you are unsure which suits your site.

What else do I need to install it?

You need submersible cable, rope, delivery pipe and a base plate, as none are included. Your electrician must wire in the supply and protection. Send us your borehole depth, water level and tank height and we will help match the SP46-11 to the job.

Do you deliver the SP46-11 to Tzaneen and Mbombela?

Yes. Kamano delivers with its own trucks from Polokwane to all nine provinces in 1 to 3 days, including Tzaneen and Mbombela. A complete set ships at about 153 kg, so delivery is on quotation. The pump end alone at about 44 kg falls in the R950 delivery band. Orders of R20,000 or more are delivered free.
