In-Line 4-Drum Spill Pallet, 235 L Sump, 2445 mm Long
SKU KMN-TANK-0041
An in-line spill pallet that lines up four 210 L drums in a single row over a 235 L sump, for narrow stores and aisles, delivered from Polokwane.
R4 725,00
- Single row of four drums, only 660 mm deep, so it fits along a wall or aisle
- Every drum faces forward for easy access to taps and bungs
- Low 270 mm deck for easier loading
- 235 L sump, 2445 × 660 mm, 30 kg
Delivered by our own trucks in 1 to 3 days. R550 / R950 / R1,450 by order weight. FREE on orders of R20,000 or more with code KH027. Delivery details
Specifications
| Capacity | 4 × 210 L drums in line |
|---|---|
| Sump capacity | 235 L |
| Material / wall | Recyclable polyethylene |
| Deck height | 270 mm |
| Chassis / axle / tyres | N/A (static floor pallet, fork pockets) |
| Bunding | Integral sump under removable deck |
| Pump / hose / nozzle fitted | N/A (none fitted) |
| Net weight | 30 kg |
| Shipping weight | 31.5 kg |
| Dimensions | 2445 × 660 × 270 mm |
Description
Overview

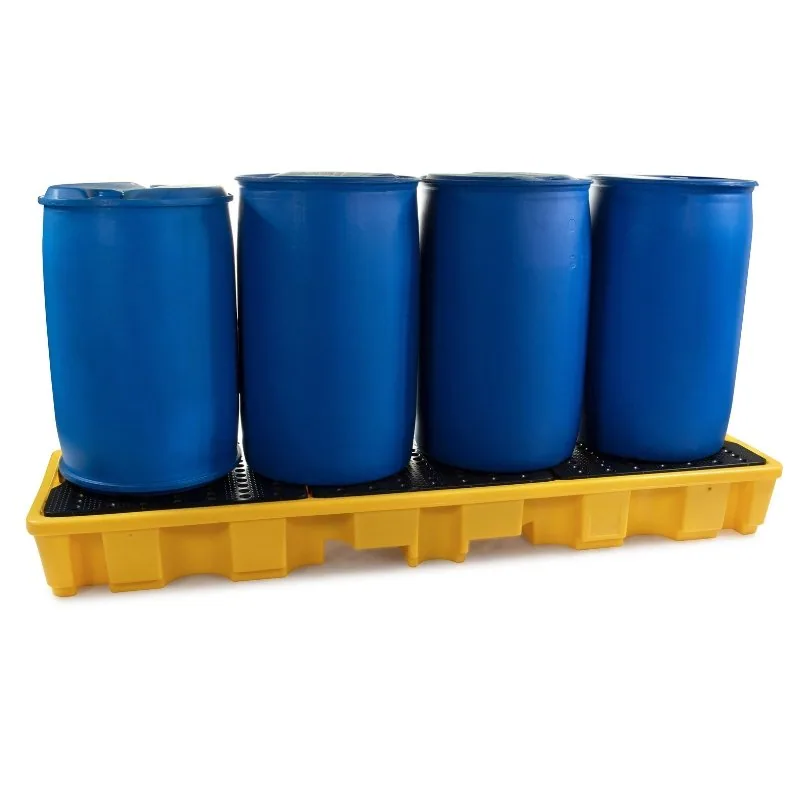

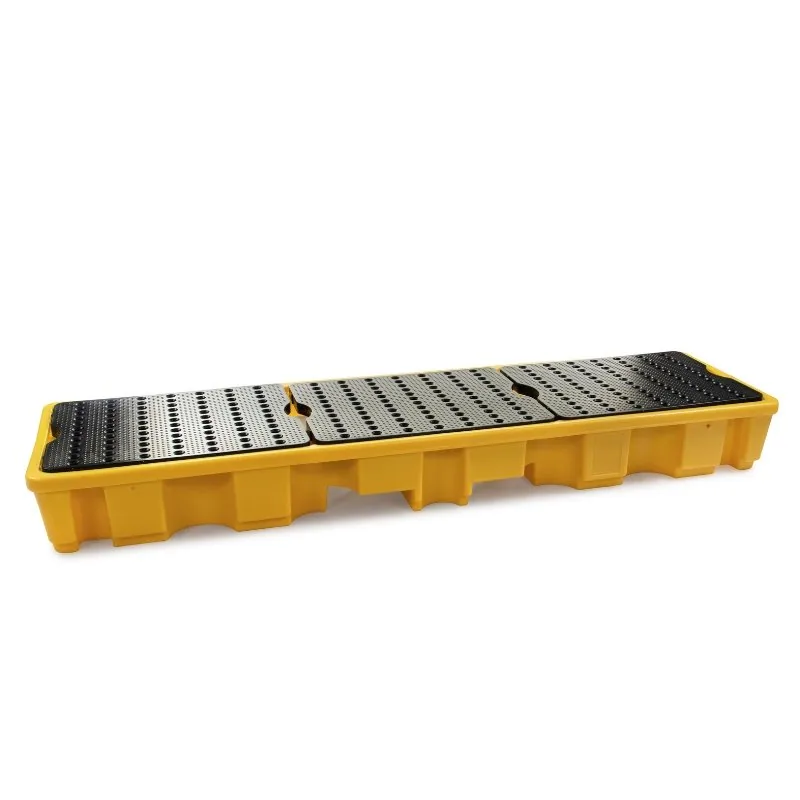

This in line drum spill pallet stands four 210 L drums in one straight row over a 235 L sump, using a long, narrow footprint of 2445 × 660 mm. A square pallet needs floor depth that many workshops and container stores simply do not have. This one tucks against a wall or under a bench line and leaves the walkway clear. Each drum is reachable from the front, so you never stretch over one drum to get to another, which is when most spills happen. The deck sits low at 270 mm, which keeps drum loading manageable with an ordinary drum trolley.
Key features
- Four drums in a single row
- Only 660 mm deep
- 235 L sump, more than one full drum
- Low 270 mm deck height

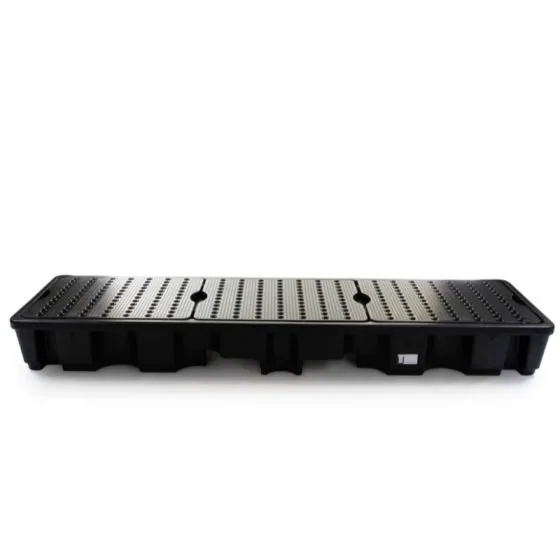

- Lift-out black deck with hand slots and inspection gaps
- Fork pockets and corrosion-free polyethylene
Where it works
An in line drum spill pallet suits a shipping container converted into a site store, the back wall of a farm workshop, or the aisle of a depot lube bay in Johannesburg or Durban. Contractors on road and pipeline jobs like it because it fits along the side of a site container with the door still able to open. For drums kept singly, the single-drum spill pallet is a cheaper start. Small containers can sit on the 100 L spill containment tray. See all spill containment pallets.
What’s in the box
- Polyethylene sump base
- Removable black deck
Delivery and warranty
Kamano delivers with its own trucks from Polokwane to all nine provinces in 1 to 3 days. Packed for transport it weighs 31.5 kg, which on its own sits in the R950 delivery band (30 to 60 kg). Delivery is free on orders of R20,000 or more. Ask us for the warranty terms on this model.
Questions about this product
Will this fit inside a 6 m shipping container store?
Yes. At 2445 mm long and 660 mm deep it fits along one side wall of a standard 6 m container and still leaves a walkway beside it. Check that the container doors open fully past the pallet and that drums can be loaded from the front. Most site stores we see manage it without any changes.
Is a 235 L sump enough for four drums in a row?
It covers one full 210 L drum failing, plus a margin, which is the common minimum rule for drum bunding. If your site rules ask for more than one drum, choose a pallet with a bigger sump, such as our 485 L high-capacity four-drum model, or split the drums across two pallets.
What is the delivery cost to Durban?
The pallet ships at 31.5 kg, so on its own it sits in the R950 band for orders of 30 to 60 kg. That is the same rate for Durban, Gqeberha or a farm in the Lowveld. Kamano trucks deliver from Polokwane in 1 to 3 days, and delivery is free once your order reaches R20,000.
Nationwide delivery from Polokwane
Delivered to all nine provinces in 1 to 3 days
We deliver the In-Line 4-Drum Spill Pallet, 235 L Sump, 2445 mm Long with our own trucks to Johannesburg, Pretoria, Cape Town, Durban, Gqeberha, Bloemfontein, Polokwane, Mbombela, Stellenbosch, Mahikeng, Thohoyandou, East London, George and Pietermaritzburg, and to farms, mines and sites in between. This item ships in the R950 delivery band (30 to 60 kg). Orders of R20,000 or more deliver free with code KH027.
