DZA(S) 50-32-200 3kW stainless steel bareshaft end-suction pump, no motor

DZA(S) 50-32-200 Stainless Bareshaft End-Suction Pump, 3kW Duty

Name: DZA(S) 50-32-200 Stainless Bareshaft End-Suction Pump, 3kW Duty
SKU: KMN-PUMP-0115
Price: 9172.00 ZAR
Availability: InStock

SKU KMN-PUMP-0115

A 3kW stainless steel stub shaft (bareshaft) end-suction pump with no motor, for coupling to your own drive, delivered across South Africa.

R9 172,00

304 stainless steel wet end, end-suction, stub shaft (bareshaft)
3kW duty rating, supplied without a motor
50 mm suction and 32 mm delivery flanges
Built to couple to your own electric motor, engine or drive shaft

Delivered by our own trucks in 1 to 3 days. R550 / R950 / R1,450 by order weight. FREE on orders of R20,000 or more with code KH027. Delivery details

Specifications

Model	Vega DZA(S) 50-32-200
Part code	15070015
Pump type	End-suction centrifugal, stub shaft (bareshaft), no motor fitted
Material	304 stainless steel wet end
Flow rate	Up to about 20 m³/h (333 L/min), as the 3kW motored set
Max head / pressure	45 m (about 4.5 bar with the valve closed), as the 3kW motored set
Duty point	12 m³/h at 38 m (works best here)
Performance	0 m³/h at 45 m; 6 m³/h at 41 m; 9 m³/h at 40 m; 12 m³/h at 38 m; 18 m³/h at 34 m; 20 m³/h at 32 m
Voltage / phase	N/A (no motor fitted)
Power	3kW duty rating
Inlet / outlet	50 mm suction flange / 32 mm delivery flange
Nominal impeller	200 mm
Self-priming	No, prime the pump before starting
Duty cycle	Depends on the drive you fit
Fluid compatibility	Clean and lightly contaminated water
Net weight	12 kg
Shipping weight	14 kg
Dimensions	330 x 220 x 260 mm

Description

Overview

The DZA(S) 50-32-200 is a 304 stainless steel stub shaft (bareshaft) end-suction pump with a 3kW duty rating, supplied without a motor so you can couple it to your own electric motor, engine or drive shaft. Think of it as a 3kw bareshaft end-suction pump for builders and operators who already own the drive.

Flanges are 50 mm on suction and 32 mm on delivery. It is the same pump end as in our 3kW motored set, so it follows the same duty curve: up to about 20 m³/h (333 L/min) and 45 m with the valve closed, working best around 12 m³/h at 38 m. Compare your own flow and head with the duty table in the specifications before you order, and send us your flow, lift and pipe length and we will size it for you.

Key features

304 stainless steel wet end, corrosion resistant for clean or lightly contaminated water
End-suction, stub shaft (bareshaft) configuration, no motor fitted
3kW duty rating
50 mm suction and 32 mm delivery flanges
Ready to mount onto an existing electric or diesel drive

Where it works

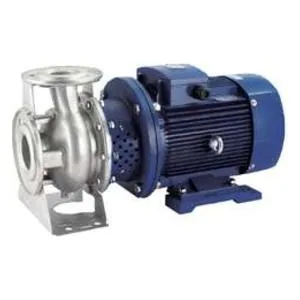

Stub shaft end-suction pumps are used for industrial process water transfer, clean and lightly contaminated water handling, general water transfer on commercial and agricultural sites, and OEM equipment builds. Western Cape cellars and packhouses can fit it to an existing motor for clean process water transfer. If you want a ready-to-run unit instead, see the DZA(S) 50-32-200 3kW pump set with motor in our stainless steel end-suction pumps range, or compare the DZA(S) 50-32-200 4kW bareshaft pump. We can also quote a matching motor and complete kit.

What’s in the box

1 x DZA(S) 50-32-200 3kW bareshaft end-suction pump, no motor fitted

Delivery and warranty

Kamano delivers with its own trucks from Polokwane to all nine provinces in 1 to 3 days, including Rustenburg, Mbombela, Kimberley, East London, Pietermaritzburg and George. Delivery is free on orders of R20,000 or more (VAT incl.). Delivery fees are set by total order weight, and at 14 kg this item falls in the R550 band. Ask us for the warranty terms on this model.

Questions about this product

Does the DZA(S) 50-32-200 3kW bareshaft pump come with a motor?

No. This listing is for the bareshaft pump only, with no motor fitted, so you supply the motor, engine or drive. Match your drive to the 3kW duty rating. If you want a motor fitted, see the DZA(S) 50-32-200 3kW pump set with motor, or ask us to quote a matching motor and complete kit.

What is a stub shaft (bareshaft) pump used for?

A stub shaft (bareshaft) pump is the pump end without a motor, built to be direct-coupled to your own motor or drive shaft. It is used for industrial process water transfer, clean and lightly contaminated water handling, general water transfer on commercial and agricultural sites, and OEM equipment builds.

How much flow and head does the 3kW DZA(S) 50-32-200 bareshaft give?

It is the same pump end as our 3kW motored set, so it is rated up to about 20 m³/h (333 L/min) and 45 m with the valve closed. It works best around 12 m³/h at 38 m, and at 20 m³/h it still gives 32 m. Add about 1 m of head for every 10 m of pipe and fittings.

Do you deliver the bareshaft pump to Mbombela?

Yes. Kamano delivers with its own trucks from Polokwane to all nine provinces, normally in 1 to 3 days, including Mbombela and Kimberley. At 14 kg it falls in the R550 delivery band, and delivery is free on orders of R20,000 or more (VAT incl.).
