Diesel Dirt Trap Filter, 1″ BSP, Aluminium Head, About 40 L/min

Description

Overview

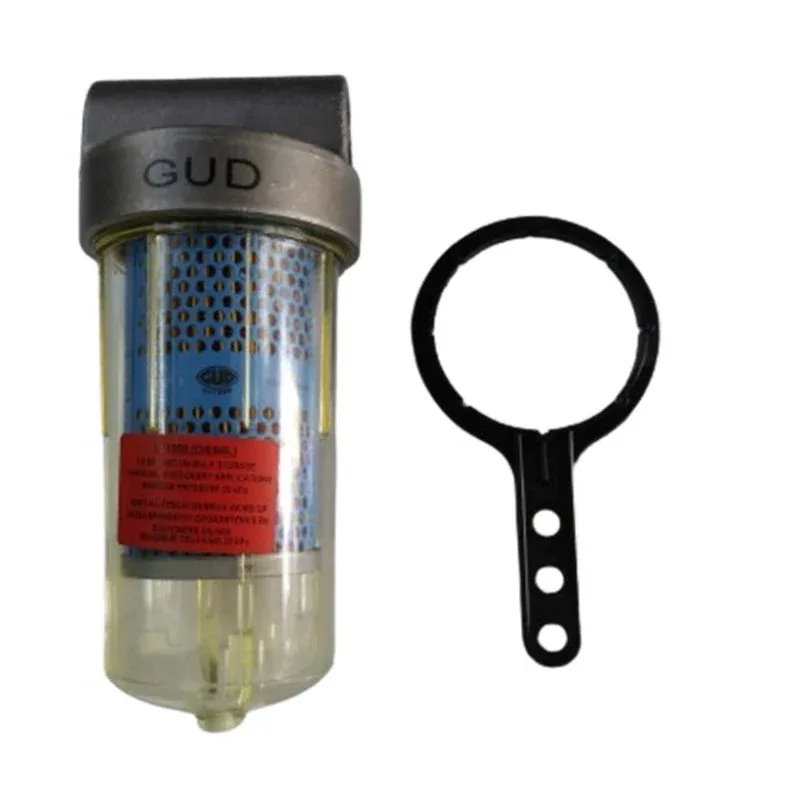

This diesel dirt trap filter is an inline fuel filter with a cast-aluminium head, a plastic sediment bowl and 1 inch BSP inlet and outlet. It is a CF1000 pattern unit designed for low-pressure lines and handles about 40 L/min. Heavy dirt drops into the bowl and the element catches the rest before fuel reaches your pump or nozzle.

Many people know this size as the 25 mm filter, because 1 inch BSP fittings suit 25 mm hose. It works best on the suction side or on gravity lines, where pressure is low. Unscrew the bowl now and then to tip out the sediment, and you will be surprised how much grit it stops from reaching the pump.

Key features

• Cast-aluminium filter head with 1 inch BSP ports
• Plastic sediment bowl that unscrews for cleaning
• Rated flow of about 40 L/min
• Designed for low pressure, around 20 kPa
• Protects pumps and meters from grit

Where it works

A diesel dirt trap filter belongs on the outlet of farm tanks in Limpopo and the Free State that are filled from drums, on gravity-fed tank stands, and on older bowsers whose tanks shed rust. It is also a cheap way to protect a new pump on a mine service truck. Fit one ahead of a 12V 40 L/min transfer pump, and route the outlet with a 16 m roll of 20 mm diesel hose. See all diesel pumps and accessories.

What’s in the box

• Dirt trap filter with cast-aluminium head and plastic bowl

Delivery and warranty

Kamano delivers with its own trucks from Polokwane to all nine provinces, normally in 1 to 3 days. This item ships at 1.5 kg, which puts it in the up to 30 kg band at R550. Orders of R20,000 or more (VAT incl.) travel free. Ask us for the warranty terms on this model.
