12V diesel transfer pump, 40 L/min rotary-vane type, with power cable and battery clamps

12V Diesel Transfer Pump, 40 L/min, 155 W, Pump Only

Name: 12V Diesel Transfer Pump, 40 L/min, 155 W, Pump Only
SKU: KMN-FUEL-0019
Price: 1510.95 ZAR
Availability: InStock

SKU KMN-FUEL-0019

A bare 12V rotary-vane diesel transfer pump at 40 L/min for building your own bowser or tank setup, delivered from Polokwane in 1 to 3 days.

R1 510,95

Light enough to fit on almost any tank or skid
Runs off a bakkie or tractor battery
40 L/min, 155 W, about 13 A, 4500 rpm
1.5 m power cable with clamps

Delivered by our own trucks in 1 to 3 days. R550 / R950 / R1,450 by order weight. FREE on orders of R20,000 or more with code KH027. Delivery details

Specifications

Flow rate	Up to 40 L/min
Max head / pressure	On request
Voltage / phase	12V DC
Power	155 W (about 13 A)
Motor speed	4500 rpm
Inlet / outlet	On request
Self-priming	Yes (rotary vane)
Duty cycle	Plan on 15 min runs (supplier quotes both 15 and 30 min)
Fluid compatibility	Diesel and paraffin only, not petrol
Cable	1.5 m with battery clamps
Net weight	4 kg
Shipping weight	4.4 kg
Dimensions	On request

Description

Overview

This 12v diesel transfer pump is a compact rotary-vane pump that moves up to 40 L/min of diesel from a drum, IBC or tank. It is the bare pump with a 1.5 m power cable, ready for you to add hose, nozzle and fittings to suit your own setup.

At only 4 kg it is a sensible choice for fitting to a homemade bowser, a trailer tank or a spare tank on the bakkie. If you would rather buy a complete setup, our wall-plate kits use the same pump with hose and nozzle already fitted, so you can pick whichever suits your budget and site.

Key features

155 W motor running at 4500 rpm on 12V DC
Delivery of up to 40 L/min for small and medium transfers
Rotary-vane design that lifts fuel without priming
Only 4 kg, easy to bolt to a tank lid or bracket
1.5 m cable with battery clamps

Where it works

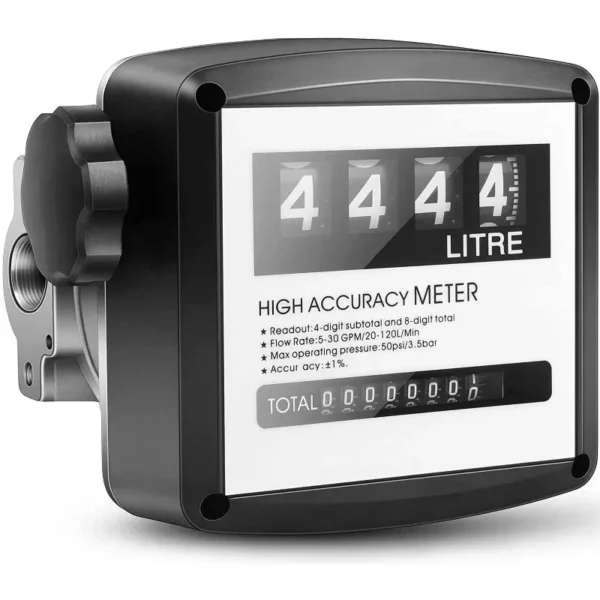

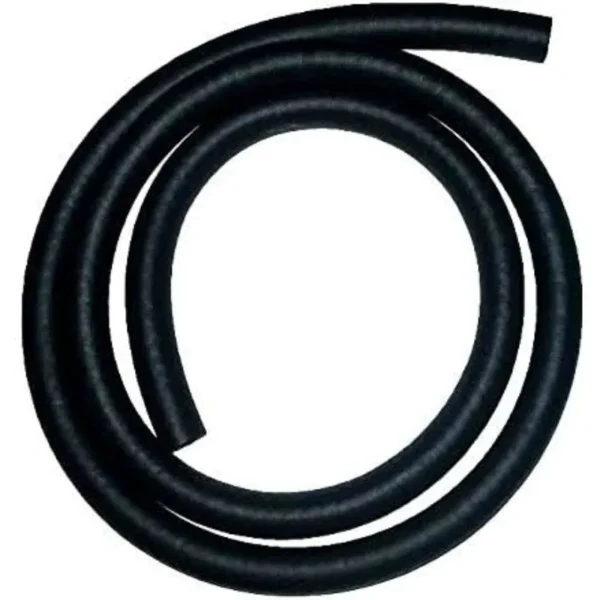

Farmers in Limpopo and North West fit a 12v diesel transfer pump to a 210 L drum on the bakkie to fuel tractors in the field, and road crews use one to top up rollers and generators. It is a good spare to keep in the store when a bowser pump gives up during harvest. Pair it with a 16 m roll of 20 mm diesel hose and an aluminium 4-digit flow meter to track every litre. Browse more diesel pumps and accessories.

What’s in the box

12V DC 40 L/min diesel transfer pump
1.5 m power cable with battery clamps

Delivery and warranty

Kamano delivers with its own trucks from Polokwane to all nine provinces, normally in 1 to 3 days. This item ships at 4.4 kg, which puts it in the up to 30 kg band at R550. Orders of R20,000 or more (VAT incl.) travel free. Ask us for the warranty terms on this model.

Questions about this product

How long can this pump run without stopping?

Supplier figures for this model give a duty cycle of 15 to 30 minutes. To be safe, run it for about 15 minutes, then let the motor cool for a similar time. At 40 L/min that still moves around 600 litres per run, which covers most tractor and generator fills.

Will it pump paraffin or petrol?

It handles diesel and paraffin. It must not be used for petrol, because the motor is not sealed against flammable vapour and the seals are not rated for it. For petrol or avgas you need a pump that is specifically built and certified for those fuels.

How much is delivery to Polokwane or Cape Town?

This pump ships at 4.4 kg, so it falls in the up to 30 kg band at R550 to any address in South Africa. Polokwane customers are close to our base, and Cape Town orders still arrive on our own trucks in 1 to 3 days. Orders of R20,000 or more including VAT ship free.
