500 L Pressure Washer Trailer, 13 HP Petrol, 248 bar, Unbraked
SKU KMN-WATR-0078
A 500 L unbraked single-axle trailer carrying a 13 HP petrol pressure washer at up to 248 bar, a light high-pressure trailer for a bakkie to tow.
R36 278,55
- 500 L onboard water, no tap needed on site
- 13 HP petrol: 248 bar, 15 L/min
- Unbraked single-axle trailer, bakkie towable
- Delivered nationwide from Polokwane
Delivered by our own trucks in 1 to 3 days. R550 / R950 / R1,450 by order weight. FREE on orders of R20,000 or more with code KH027. Delivery details
Specifications
| Flow rate | 15 L/min (up to 20.7 L/min) |
|---|---|
| Max pressure | 248 bar |
| Working pressure | 210 bar |
| Power | 13 HP petrol engine |
| Voltage / phase | N/A (engine driven) |
| Fuel | Petrol |
| Speed | 3400 rpm |
| Start | Recoil |
| Inlet / outlet | Onboard tank feed; outlet via quick coupler |
| Self-priming | N/A (fed from the onboard tank) |
| Duty cycle | On request |
| Fluid compatibility | Clean water |
| Hose and lance | 10 m 480 bar hose, quick couplers; spray lance |
| Nozzles | 4 quick-connect, 0 to 45 degrees (red, white, yellow, green) |
| Capacity | 500 L |
| Material / wall | On request |
| Chassis / axle / tyres | Single axle, unbraked; 13" wheels with steel rims; 750 kg coupler; leg stand |
| Bunding | N/A (water tank) |
| Pump / hose / nozzle fitted | Yes, pump, hose and nozzles fitted |
| Net weight | 241 kg |
| Shipping weight | 241 kg |
| Dimensions | On request |
Description
Overview
This 500 L pressure washer trailer is a self-contained cleaning rig: a 13 HP petrol engine with recoil start drives the pump, the water sits in a 500 L horizontal tank, and the whole unit rides on a single-axle trailer with an unbraked axle and a 750 kg coupler. It delivers up to 248 bar (210 bar working pressure) at 15 L/min (up to 20.7 L/min), so you wash vehicles, implements and floors on site.
At 241 kg it is light for a trailer unit, and the leg stand makes it easy to park and hitch. A full tank gives about 33 minutes of spraying at full flow. See all pressure washers.
Key features
- 13 HP petrol engine with recoil start running at 3400 rpm
- Up to 248 bar maximum pressure, 210 bar working pressure, 15 L/min (up to 20.7 L/min) flow
- 10 m 480 bar hose with quick couplers, spray lance and four colour-coded nozzles from 0 to 45 degrees
- Auto feedback valve sets the pressure; inline filter protects the pump
- 500 L horizontal tank on a single-axle trailer with an unbraked axle and a 750 kg coupler, with registration and roadworthy papers
- Pressure gauge kit strongly advised; optional extra
Where it works
Farms and mines tow rigs like this to dairy parlours, pig units and tractor sheds that are far from a tap. Think of North West grain farms, Free State orchards or KwaZulu-Natal quarries. If you are shopping for a 500 litre petrol pressure washer trailer, the tank size decides how long you work before refilling. Also see the 1000 L electric pressure washer trailer without brakes and the 500 L diesel pressure washer trailer.
What’s in the box
- 500 L unit with 13 HP petrol engine with recoil start
- 10 m 480 bar high-pressure hose with quick connection
- Spray lance and four quick-connect nozzles
- Inline filter
- 500 L tank mounted on unbraked trailer
- Registration and roadworthy papers
Delivery and warranty
Kamano delivers with its own trucks from Polokwane to all nine provinces in 1 to 3 days, and orders of R20,000 or more (VAT incl.) ship free. Shipping weight is 241 kg, so it falls in the over 100 kg band, which is quoted per delivery. Ask us for the warranty terms on this model. We ship this 500 litre petrol pressure washer trailer to every province.
Questions about this product
How much is delivery on the 500 L unit to my farm or site?
The shipping weight is 241 kg, which is over 100 kg, so delivery is on quotation. Our fixed bands cover up to 30 kg at R550, 30 to 60 kg at R950 and 60 to 100 kg at R1,450. Orders of R20,000 or more, VAT incl., ship free. We deliver with our own trucks to all nine provinces in 1 to 3 days.
Can I use it where there is no mains power?
Yes. The petrol engine drives the pump directly, so the unit needs no mains supply, only fuel, oil and water in the tank. The engine starts on the recoil pull. Always check the oil level before starting and never run the pump with an empty tank, since a dry pump can be damaged.
How long does the 500 L tank last?
At full flow of 15 L/min a full 500 L tank gives roughly 33 minutes of continuous spraying. In practice you trigger the lance on and off, so the real working time is longer. For all-day work away from a tap, plan a refill point on site.
Does the trailer come with registration papers?
The specification lists registration and roadworthy papers with the trailer. It is a single-axle trailer with an unbraked axle and a 750 kg coupler on 13 inch wheels with a leg stand or jockey wheel. Ask us to confirm the paperwork for your unit and how registration works in your province before you collect or take delivery.
Nationwide delivery from Polokwane
Delivered to all nine provinces in 1 to 3 days
We deliver the 500 L Pressure Washer Trailer, 13 HP Petrol, 248 bar, Unbraked with our own trucks to Johannesburg, Pretoria, Cape Town, Durban, Gqeberha, Bloemfontein, Polokwane, Mbombela, Welkom, Richards Bay, Rustenburg, Mokopane, East London and Secunda, and to farms, mines and sites in between. This item ships in the delivery on quotation (over 100 kg). Orders of R20,000 or more deliver free with code KH027.
Pairs well with
-
KMN-WATR-0097

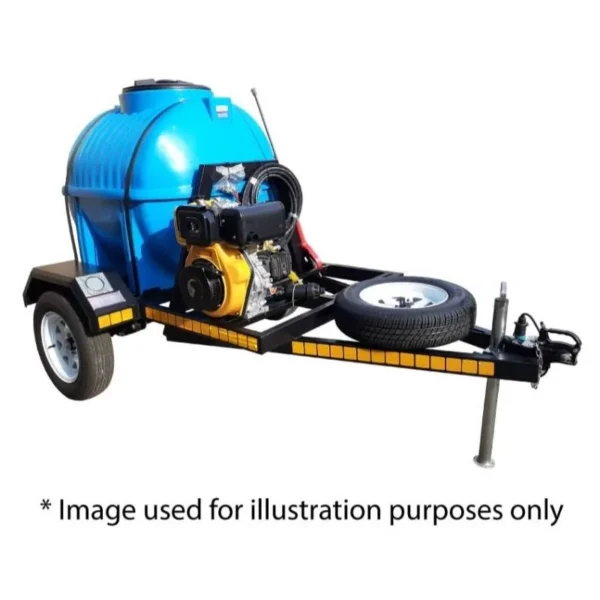

650 L Pressure Washer Trailer, 2.2 kW Electric, 100 Bar, Unbraked
- 650 L tank
- 100 bar
- 12 L/min
-
KMN-WATR-0019
1000 L Trailer Pressure Washer, 100 bar Electric, IBC Tank, Unbraked
- 100 bar
- 2.2 kW 230 V
- 12 L/min
-
KMN-WATR-0023

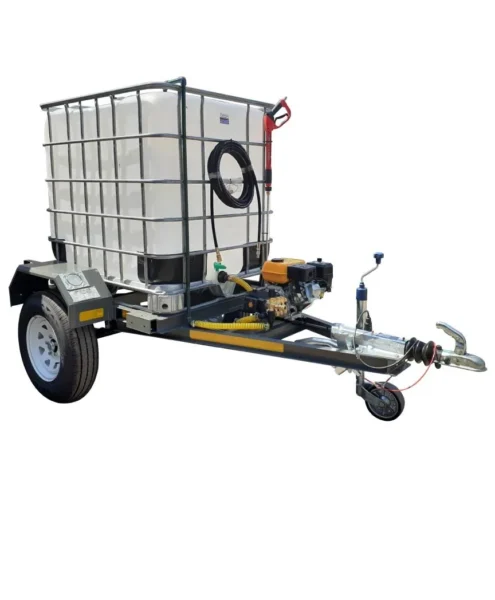

1000 L Trailer Pressure Washer, 186 bar Petrol, IBC Tank, Unbraked
- 186 bar
- 6.5 HP petrol
- 12.6 L/min
-
KMN-WATR-0089

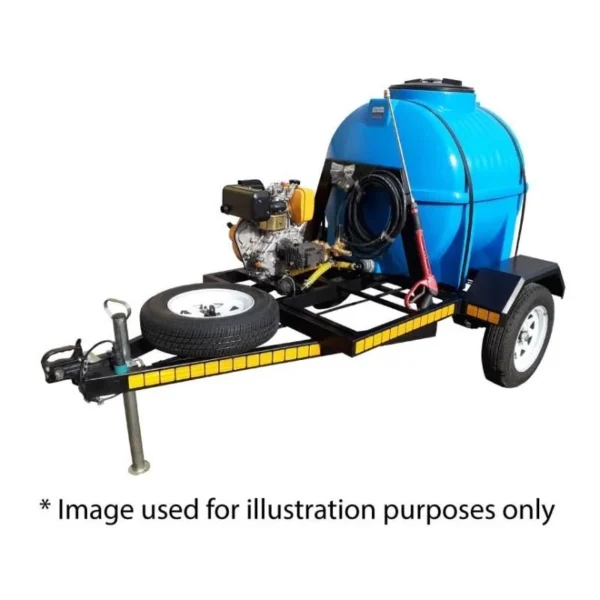

650 L Pressure Washer Trailer, 13HP Petrol, 248 Bar, Unbraked
