4SD16/24 4″ Borehole Pump, 7.5 kW, 152 m Max Head

Description

Overview

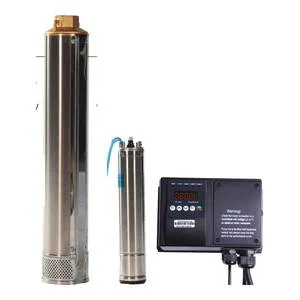

The 4SD16/24 is a 4-inch stainless steel multistage submersible pump that lifts water up to 152 m, with flows up to 21 m³/h (350 L/min), on a 7.5 kW motor. Buy this 7.5kw borehole pump as a complete set for your power supply or as a pump end only. It fits boreholes with an internal diameter of 100 mm or more.

To size it, add water depth, height to your tank and about 10% for pipe friction. The pump’s head at your flow must exceed that total. Browse the whole range in our borehole pumps category.

Key features

• Stainless steel pump body and shaft
• Shut-off head 152 m, 150 L/min at 120 m
• Pump end only option for replacing a worn wet end

Options

• 380V 3-phase set + Y1 controller: pump end, 7.5 kW 380 V three-phase oil-filled motor, Y1 digital protection controller. R 12,576.
• 525V 3-phase set + VSD: pump end, 7.5 kW 525 V three-phase oil-filled motor, variable speed drive (VSD). R 30,048.
• Pump end only (no motor): wet end only, to replace a worn pump end on an existing 7.5 kW motor. R 3,232.

Prices include VAT. Cable, rope, delivery pipe and base plate are not included.

Where it works

Built for deeper boreholes where you still need volume: drip and pivot feeds in Limpopo and the Northern Cape, construction and mine water supply, and municipal backup boreholes. At 150 L/min it delivers 120 m. See also the 4SD16/4 1.1 kW borehole pump, 25 m head or the 4SD16/18 5.5 kW borehole pump, 107 m head.

What’s in the box

• 4SD16/24 pump end
• Motor and controller as per your option

Delivery and warranty

Kamano delivers with its own trucks from Polokwane to all nine provinces in 1 to 3 days, including Mbombela, Rustenburg, Kimberley, East London, Pietermaritzburg and George. Delivery is free on orders of R20,000 or more (VAT incl.). The heaviest option of this model ships at about 73 kg. A load this heavy falls in the R1,450 delivery band (VAT incl.). Ask us for the warranty terms on this model.
