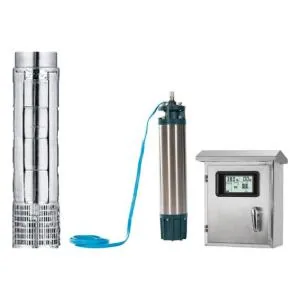

SP30-32 6-inch borehole pump, 30 kW, 364 m max head, view 2

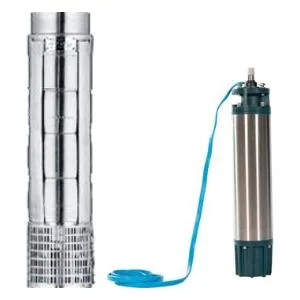

SP30-32 6-inch borehole pump, 30 kW, 364 m max head, view 3

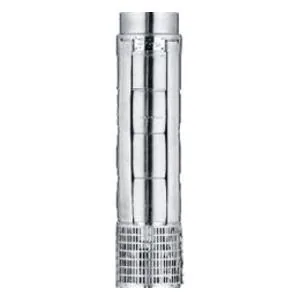

SP30-32 6-inch borehole pump, 30 kW, 364 m max head, view 4

SP30-32 6″ Borehole Pump, 30 kW, 364 m Max Head

SKU KMN-BORE-0067

The SP30-32 is a 30 kW 6-inch multistage borehole pump with 364 m of shut-off head, delivered across South Africa from Polokwane.

Price range: R21 704,00 through R64 744,00

364 m shut-off head and 24 m³/h at 284 m
6-inch stainless steel pump end, 32 stages, three-phase
Complete 380 V set from R 50,064, or pump end only from R 21,704
Fits boreholes of 150 mm internal diameter and up. VAT incl.

Configuration

Clear

Request Bulk Quote Ask on WhatsApp

Delivered by our own trucks in 1 to 3 days. R550 / R950 / R1,450 by order weight. FREE on orders of R20,000 or more with code KH027. Delivery details

Specifications

Flow rate	Up to 42 m³/h (700 L/min)
Max head / pressure	364 m shut-off head
Duty point	24 m³/h (400 L/min) at 284 m
Performance curve	0 m³/h (0 L/min): 364 m; 6 m³/h (100 L/min): 356 m; 12 m³/h (200 L/min): 336 m; 18 m³/h (300 L/min): 309 m; 24 m³/h (400 L/min): 284 m; 30 m³/h (500 L/min): 245 m; 36 m³/h (600 L/min): 184 m; 42 m³/h (700 L/min): 113 m
Voltage / phase	380 V three-phase, or 525 V three-phase by option
Power	30 kW motor, 30 kW on the 525 V option
Pump diameter	6 inch, needs a borehole of 150 mm internal diameter or more
Stages	32
Construction	Stainless steel
Inlet / outlet	On request
Self-priming	N/A (submersible)
Duty cycle	On request
Fluid compatibility	Clean borehole water
Controller	30A intelligent pump controller on 380 V sets; none on pump end or 525 V options
Also listed as	VP32A-32
Net weight	196 kg
Shipping weight	216 kg
Dimensions	2890 x 250 x 250 mm

Description

Overview

The SP30-32 (VP32A-32) is a 6-inch stainless steel multistage submersible borehole pump with a 30 kW motor rating. At 24 m³/h the SP30-32 still lifts water 284 m, and its shut-off head is 364 m, with flow reaching 42 m³/h at the far end of the curve. It is made for very deep boreholes where a lot of lift is needed, such as mine dewatering supply lines, bulk farm supply and long rising mains.

Add your pumping water level, the climb to the tank and about 10 percent for friction, and check the borehole yield with your driller. Send us those figures and we will confirm the SP30-32 fits.

Key features

Stainless steel 6-inch pump end, 32 stages, for boreholes of 150 mm internal diameter or more
Three-phase supply, 380 V or 525 V, with oil-filled or water-filled motors and a pump-end-only option
Head of 284 m at 24 m³/h, and 309 m at 18 m³/h
Sets of this size come with the 30A controller.

Options

380V set with oil-filled motor, R 50,064: pump end, 30 kW 380 V oil-filled motor (sealed, rated 25 bar) and 30A controller.
380V set with water-filled motor, R 50,064: pump end, 30 kW 380 V water-filled motor (rated 35 bar, usually rewindable) and 30A controller.
525V set with water-filled motor, R 64,744: pump end and 30 kW 525 V water-filled motor. No starter included; your electrician fits a starter panel or VSD.
Pump end only, R 21,704: wet end only, to replace a worn pump end on an existing 30 kW 6-inch motor.

Where it works

With 364 m of shut-off head, the SP30-32 is a deep-borehole pump for mines in Mpumalanga and Limpopo, large Northern Cape irrigation schemes, and bulk supply where the water level is a long way down.

Browse the borehole pump range, or compare the SP30-14 borehole pump and the SP30-16 borehole pump.

What’s in the box

SP30-32 pump end (all options)
Motor and 30A controller (set options only)
Not included: submersible cable, rope, delivery pipe and base plate

Delivery and warranty

Kamano delivers with its own trucks from Polokwane to all nine provinces in 1 to 3 days, including Pretoria, Gqeberha, Rustenburg, Pietermaritzburg, eMalahleni and Richards Bay. A boxed set weighs about 216 kg and a pump end alone about 51 kg. Orders of R20,000 or more qualify for free delivery, and items over 100 kg are delivered on quotation. Ask us to confirm the lead time. Ask us for the warranty terms on this model.

Questions about this product

What borehole size does the SP30-32 need?

The SP30-32 is a 6-inch pump, so the borehole needs an internal diameter of at least 150 mm. Check the casing size and any bends or dog-legs with your driller before ordering. If the casing is smaller than 150 mm, this pump will not go down, and we can point you to a 4-inch model from the borehole pump range.

Should I choose an oil-filled or a water-filled motor?

Either works. Oil-filled motors are sealed and rated 25 bar, while water-filled motors are rated 35 bar and can usually be rewound if they burn out, which normally makes repairs cheaper on larger motors. For the SP30-32 the 380 V set prices are the same, so choose on repair preference.

Can I get delivery to Richards Bay and what does it cost?

Yes, we deliver to Richards Bay with our own trucks from Polokwane, normally in 1 to 3 days. A boxed SP30-32 set weighs about 216 kg, over 100 kg, so delivery is on quotation. A pump end alone (51 kg) falls in the R950 delivery band. Orders of R20,000 or more qualify for free delivery.

How do I know the SP30-32 is right for my borehole?

Add your pumping water level, the height to the tank and about 10 percent for friction. The SP30-32 must beat that total at your flow, for example 309 m at 18 m³/h or 245 m at 30 m³/h. Also get the yield test from your driller, because the borehole must deliver that flow. Send us your figures and we will confirm.

Does the 525 V set include a starter?

No. The 525 V set is the pump end and a water-filled motor only, so your electrician must supply a suitable starter panel or VSD. The 380 V sets include the 30A controller instead. Tell us your supply voltage when you order and we will advise the right option for the SP30-32.
