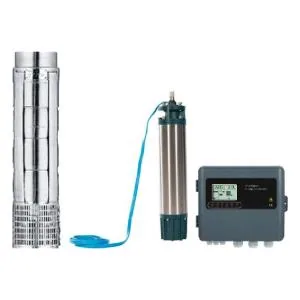

6″ Borehole Pump SP30-12, 11 kW, 137 m Max Head, 3-Phase

SKU KMN-BORE-0078

Lifts water up to 137 m: the SP30-12 6" stainless steel multistage submersible borehole pump, 11 kW three-phase, delivered across South Africa.

Price range: R8 856,00 through R24 480,00

Up to 137 m head and 42 m³/h, SP30-12 6″ stainless steel multistage
11 kW three-phase motor, 380 V
Complete set or pump end only for replacements
Needs a borehole of 150 mm internal diameter or larger

Configuration

Clear

Request Bulk Quote Ask on WhatsApp

Delivered by our own trucks in 1 to 3 days. R550 / R950 / R1,450 by order weight. FREE on orders of R20,000 or more with code KH027. Delivery details

Specifications

Model	SP30-12 (VP32A-12)
Pump type	Multistage submersible, stainless steel, 6"
Flow range	0 to 42 m³/h (0 to 700 L/min)
Max head / pressure	137 m
Duty point	24 m³/h at 107 m
Performance curve	0 L/min at 137 m; 100 L/min at 133 m; 200 L/min at 126 m; 300 L/min at 116 m; 400 L/min at 107 m; 500 L/min at 92 m; 600 L/min at 69 m; 700 L/min at 42 m
Power	11 kW motor
Voltage / phase	380 V
Motor	6" oil-filled or water-filled, by option
Controller	30Y intelligent controller on 380 V sets
Min borehole diameter	150 mm internal
Inlet / outlet	On request
Self-priming	N/A (submersible)
Fluid compatibility	Clean water
Net weight	98 kg
Shipping weight	114 kg
Dimensions	1150 x 190 x 190 mm

Description

Overview

The SP30-12 (also listed as VP32A-12) is a 6″ stainless steel multistage submersible borehole pump with up to 137 m of head and flows up to 42 m³/h. It belongs to the SP30 range, nominally 30 m³/h, and runs on three-phase power. At 24 m³/h (24,000 litres an hour) it still delivers 107 m head.

Allowing 10% for pipe friction, that suits roughly 97 m of total lift. The borehole must be at least 150 mm inside. Buy it as a complete set, or as a pump end to replace a worn one. See more borehole pumps.

Key features

Stainless steel pump for clean water
137 m shut-off head, 42 m³/h maximum flow
11 kW motor, oil-filled (25 bar) or water-filled (35 bar, usually rewindable)
30Y controller on 380 V sets
Pump end sold alone as a replacement

Options

380 V set, oil-filled motor, 30Y controller, R 24,480: pump end, 11 kW motor and controller.
380 V set, water-filled motor, 30Y controller, R 24,480: pump end, 11 kW motor and controller.
Pump end only, R 8,856: wet end for an existing 11 kW 6″ motor.

Cable, rope, delivery pipe and base plate are not included, but ask us to quote them with the pump.

Where it works

Suited to large-scale irrigation, farms, community and municipal water schemes and mining, from Free State to Northern Cape. Send us your borehole depth, water level, yield and delivery height and we will confirm the right model before you order. Compare SP30-10 9.2kW borehole pump and SP17-13 7.5kW borehole pump.

What’s in the box

SP30-12 pump end
11 kW motor (sets)
30Y controller (380 V sets)

Delivery and warranty

Kamano delivers with its own trucks from Polokwane in 1 to 3 days to Richards Bay, Johannesburg, Gqeberha, Mbombela, Pietermaritzburg and eMalahleni. The set ships at about 114 kg (delivery on quotation). Free delivery from R20,000. Large pumps are often supplied to order, so confirm lead time. Ask us for the warranty terms on this model.

Questions about this product

What is the difference between the SP30-12 set and the pump end only?

The set gives you the SP30-12 pump end plus an 11 kW 6" three-phase motor and, on 380 V options, a 30Y controller. The pump end only is the wet end, for replacing a worn one on an existing 11 kW 6" motor. Cable, rope, delivery pipe and base plate are not included in either.

How deep a borehole suits the SP30-12?

Add your pumping water level, the height up to the tank and about 10% for pipe friction. At its 24 m³/h duty point this pump gives 107 m head, so roughly 97 m of total lift. The borehole must also deliver the flow, so ask your driller for the yield test.

Should I choose an oil-filled or water-filled motor?

Both drive the pump the same way. Oil-filled motors are sealed and rated 25 bar. Water-filled motors are rated 35 bar and can usually be rewound if they burn out, which normally makes repairs cheaper on bigger motors. Tell us your site and we will advise before you order.

Do you deliver the SP30-12 to Johannesburg and Mbombela?

Yes. Kamano delivers with its own trucks from Polokwane in 1 to 3 days. The set ships at about 114 kg (delivery on quotation). Delivery is free from R20,000 (VAT incl.), and fees over 100 kg are quoted per order.
