500 L Pressure Washer Trailer, 10HP Electric-Start Diesel, 240 Bar, Unbraked
SKU KMN-WATR-0087
A 500 L trailer-mounted pressure washer with a 10HP electric-start diesel engine and its own water tank, for farms, mines and contractors, delivered across South Africa.
R44 311,05
- 500 L tank with 10HP electric-start diesel engine
- Up to 240 bar, 15 L/min
- 10 m 480 bar hose with quick couplers, spray lance and 4 nozzles
- Unbraked single-axle trailer, 2-ton coupler
Delivered by our own trucks in 1 to 3 days. R550 / R950 / R1,450 by order weight. FREE on orders of R20,000 or more with code KH027. Delivery details
Specifications
| Water tank | 500 L horizontal |
|---|---|
| Flow rate | 15 L/min (up to 20.7 L/min) |
| Max pressure | 240 bar |
| Working pressure | 200 bar |
| Voltage / phase | N/A (engine driven) |
| Power | 10HP electric-start diesel engine |
| Fuel / drive | Diesel |
| Start | Electric start with key start box and cabling (battery and battery box not included) |
| Pump | High-pressure pump (type on request) |
| Pressure control | Auto feedback valve, 0 to 240 bar |
| Hose | 10 m 480 bar with quick couplers |
| Nozzles | 4 quick-connect, 0 to 45 degrees |
| Chassis | Single-axle unbraked trailer, 2-ton coupler, 13" wheels |
| Support / papers | Leg stand, with registration and roadworthy papers |
| Net weight | 287 kg |
| Shipping weight | 287 kg |
| Dimensions | On request |
Description
Overview

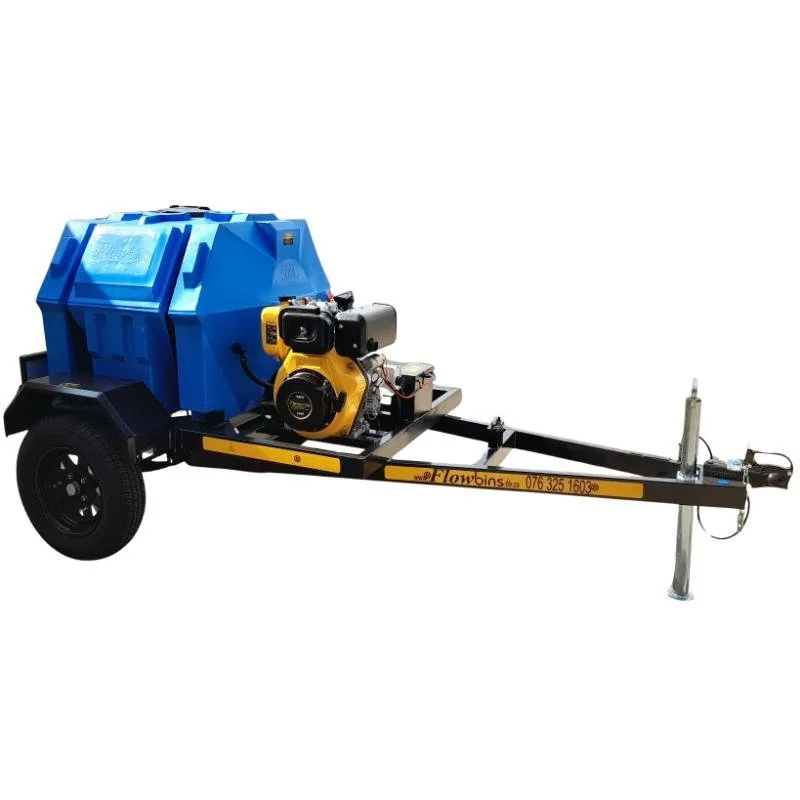

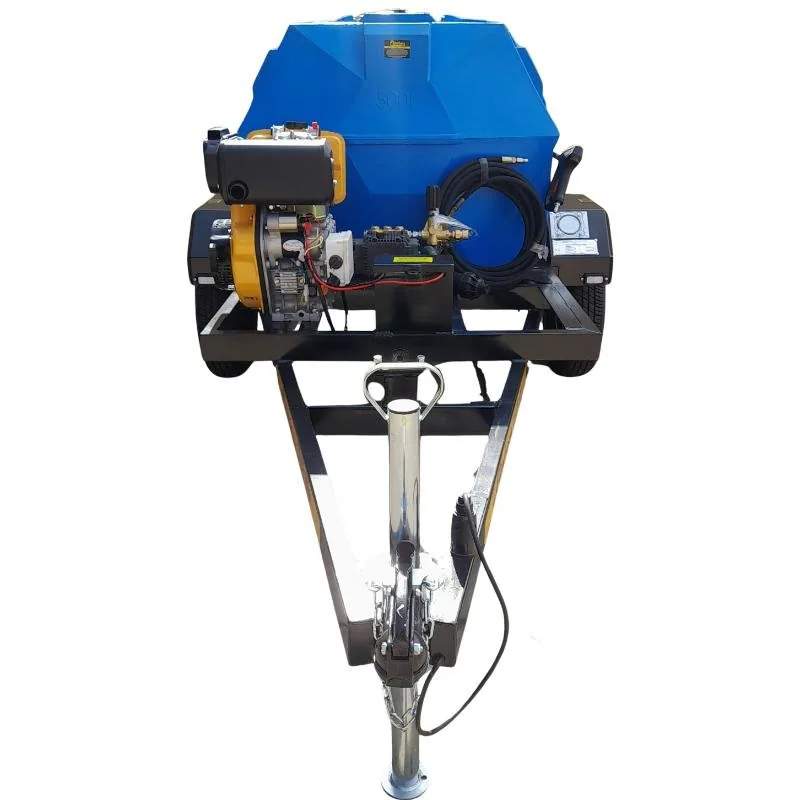

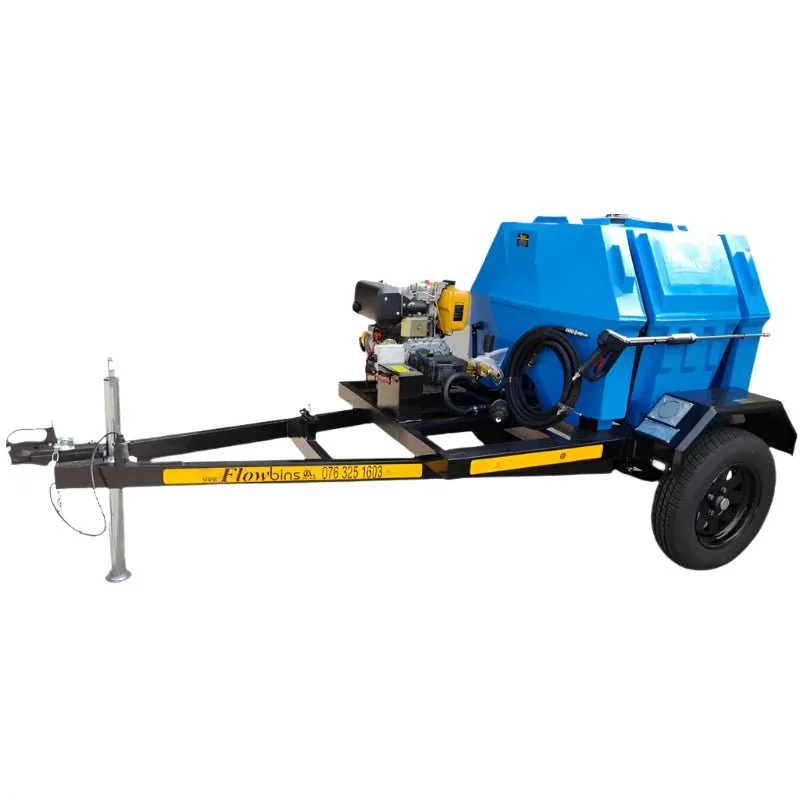

This 500 L pressure washer trailer is a complete cleaning rig on a single-axle unbraked trailer, with a water tank, a 10HP electric-start diesel engine and a high-pressure pump. It runs at up to 240 bar with 15 L/min (up to 20.7 L/min), so one bakkie can tow it to any site and start washing.
The 10HP diesel engine starts from a key switch, so there is no pull-starting at the end of a long day. We supply the key start box and cabling; you add your own battery and battery box. A 500 L tank gives roughly 33 minutes of spraying at 15 L/min before a refill.
Key features
- 500 L horizontal water tank, so you are not tied to a tap
- 10HP electric-start diesel engine (3000 RPM)
- Up to 240 bar max, 200 bar working, 15 L/min (up to 20.7 L/min)
- 10 m 480 bar high-pressure hose with quick couplers
- Spray lance, 4 quick-connect nozzles (0 to 45 degrees) and inline filter
- Auto feedback valve, 0 to 240 bar, for continuous use
- Trailer with 2-ton coupler, unbraked axle, 13″ wheels and leg stand
Where it works
Diesel suits long hours on remote ground: earthmoving plant on Mpumalanga coal sites, mine workshops on the Limpopo platinum belt and farm yards in the Western Cape. The trailer is unbraked and single-axle, with registration and roadworthy papers, so it suits low-speed haul on site and short road runs behind a bakkie. Browse more pressure washers or compare it with the 650 L 10HP Diesel Washer Trailer and the 650 L 10HP E-Start Diesel Washer Trailer. Looking for a pressure washer trailer 500l electric start diesel?
What’s in the box
- 500 L horizontal tank with 10HP electric-start diesel engine and pump fitted
- 10 m 480 bar high-pressure hose with quick couplers
- 4 quick-connect nozzles, 0 to 45 degrees (red, white, yellow, green)
- Inline filter
- Auto feedback valve
- Key start box and cabling (battery and battery box not included)
- Single-axle unbraked trailer, 2-ton coupler, 13″ wheels, leg stand
- Registration and roadworthy papers
Ask us about the pressure gauge kit, which we strongly advise to protect the pump.
Delivery and warranty
Kamano delivers this pressure washer trailer 500l electric start diesel with its own trucks from Polokwane to all nine provinces in 1 to 3 days. Delivery is free on orders of R20,000 or more (VAT incl.). Shipping weight is 287 kg. Ask us for the warranty terms on this model.
Questions about this product
What do I need to tow this 500 L washer trailer?
Any bakkie with a towbar that suits the 2-ton coupler will do. The trailer is unbraked and single-axle, with 13" wheels. It ships at 287 kg empty, and a full 500 L tank adds about 500 kg of water, so keep loaded runs short and slow or fill on site.
Is the battery included with the electric-start model?
No. We supply the key start box and cabling, but the battery and battery box are not included, so you add your own. Once fitted, you start the 10HP diesel from the key switch with no pull-cord. Ask us if you want a battery quoted with the unit and we will price it separately.
What can I clean at 240 bar?
At up to 240 bar and about 200 bar working pressure it handles caked mud on tractors and earthmoving plant, concrete floors, trucks and silos. Use the 0 to 45 degree nozzles to trade reach against force, and keep the nozzle moving on painted surfaces and soft materials so you do not strip them.
Do you deliver to Richards Bay?
At 287 kg shipped, delivery falls in our over-100 kg band, which we quote per job. Send us the Richards Bay address and we will come back with a firm delivery price, usually within the hour. We deliver with our own trucks from Polokwane in 1 to 3 days.
Nationwide delivery from Polokwane
Delivered to all nine provinces in 1 to 3 days
We deliver the 500 L Pressure Washer Trailer, 10HP Electric-Start Diesel, 240 Bar, Unbraked with our own trucks to Johannesburg, Pretoria, Cape Town, Durban, Gqeberha, Bloemfontein, Polokwane, Mbombela, eMalahleni, Kimberley, Mokopane, Mahikeng, Klerksdorp and Pietermaritzburg, and to farms, mines and sites in between. This item ships in the delivery on quotation (over 100 kg). Orders of R20,000 or more deliver free with code KH027.
Pairs well with
-
KMN-WATR-0018
1000 L Trailer Pressure Washer, 100 bar Electric, IBC Tank, Braked
- 100 bar
- 2.2 kW 230 V
- 12 L/min
-
KMN-WATR-0088

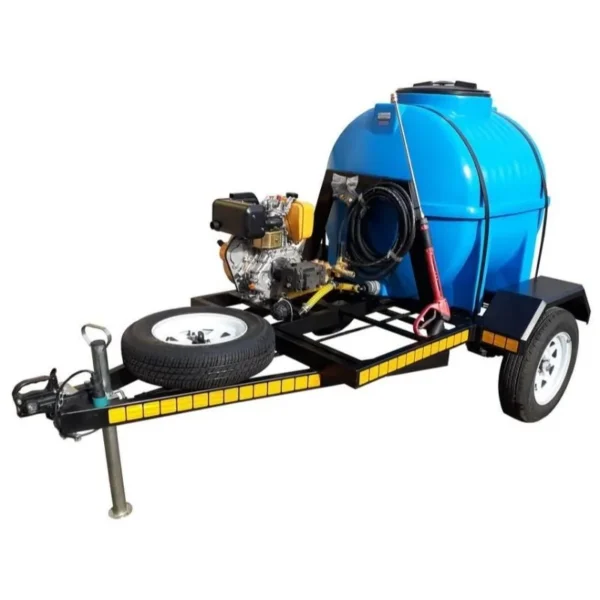

650 L Pressure Washer Trailer, 10HP Diesel, 240 Bar, Unbraked
