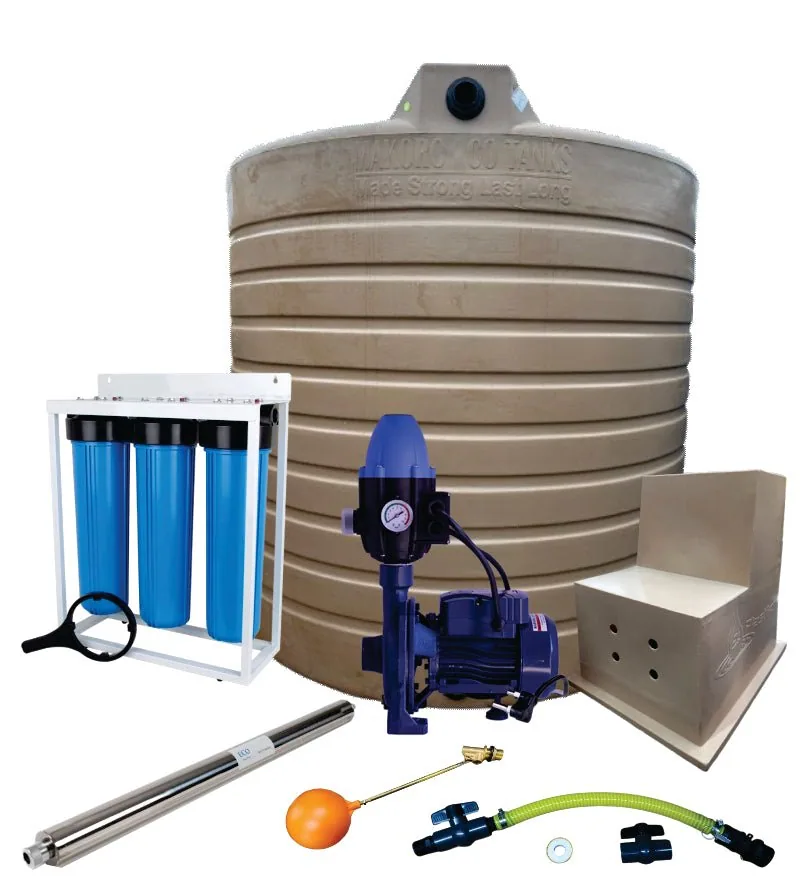

5,000 L water tank combo with 0.55 kW Monoblock pump, filter and UV steriliser

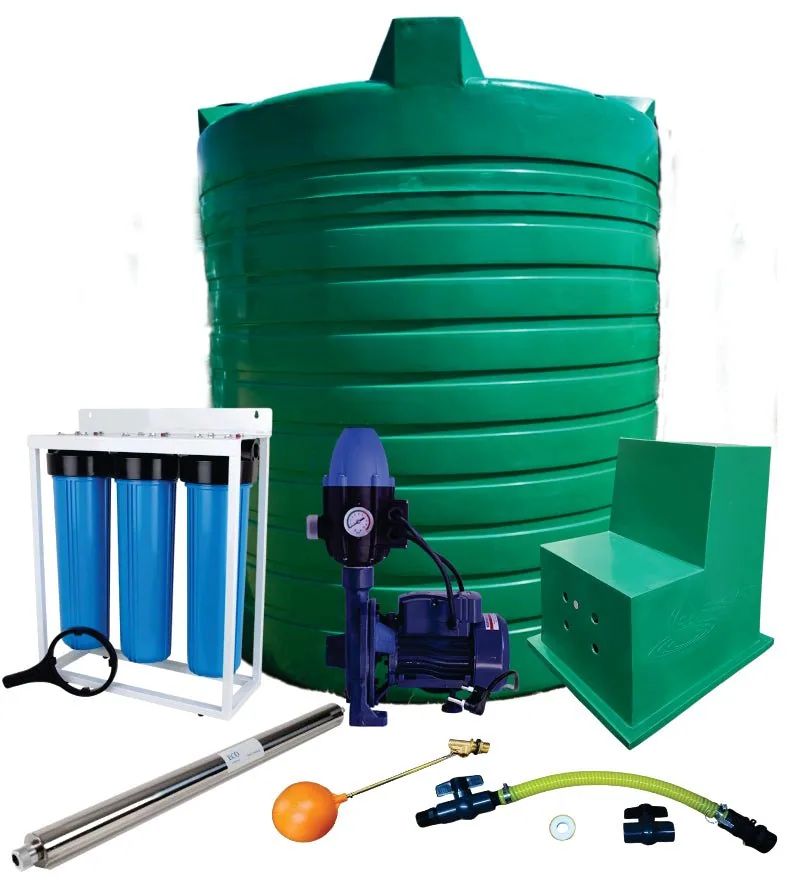

5,000 L water tank combo with 0.55 kW Monoblock pump: pump house, filter housings and pipework

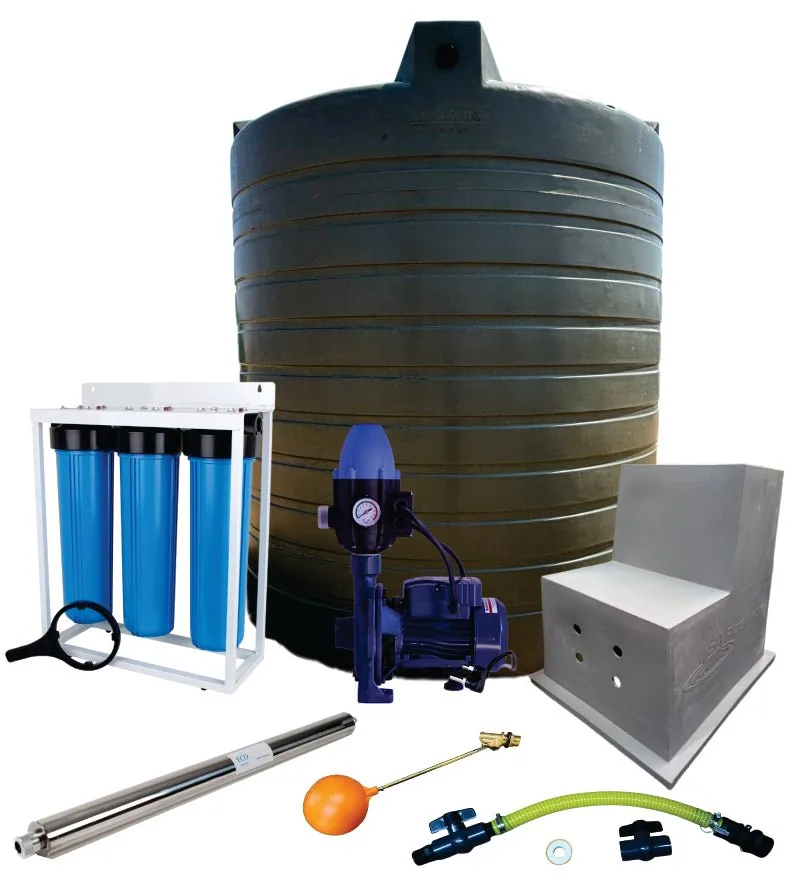

5,000 L water tank combo with 0.55 kW Monoblock pump, installed tank and pump kit

5,000 L Tank Combo, 0.55 kW Monoblock Pump (92 L/min), Filter and UV

Name: 5,000 L Tank Combo, 0.55 kW Monoblock Pump (92 L/min), Filter and UV
SKU: KMN-WATR-0328
Price: 10784.34 ZAR
Availability: InStock

SKU KMN-WATR-0328

A complete 5,000 L tank, 0.55 kW pump, filter and UV water kit for farms, lodges and homes, delivered from Polokwane across South Africa.

R10 784,34

5,000 L tank plus 0.55 kW monoblock centrifugal pump, up to 92 L/min and 26 m head
3-stage wall filter and 55 W stainless UV steriliser in the kit
Pump house cover, ball-valve pipe set and brass float valve included
Delivered by Kamano’s own trucks, price VAT incl.

Delivered by our own trucks in 1 to 3 days. R550 / R950 / R1,450 by order weight. FREE on orders of R20,000 or more with code KH027. Delivery details

Specifications

Tank capacity	5,000 L
Tank maximum fill	5,325 L
Tank material	Rotomoulded LLDPE, vertical
Tank dimensions	approx. 180 cm diameter × 220 cm high; manhole 45 cm
Tank empty weight	75 kg
Pump type	0.55 kW monoblock centrifugal
Flow rate	Up to 92 L/min (5.5 m³/h)
Max head / pressure	Up to 26 m head; working pressure 8 bar
Voltage / phase	Single-phase mains, capacitor run
Power	0.55 kW
Inlet / outlet	On request
Self-priming	No, fit the foot valve and prime the suction line
Suction lift	Up to 6 m with foot valve (altitude dependent)
Duty cycle	On request
Fluid compatibility	Clean water up to 40 °C
Filter	3-stage, 5 micron PP + GAC + nano silver CTO, max 5 bar, 50 °C
UV steriliser	55 W, 304 stainless, 2,700 L/h, 1 inch
Float valve	15 mm brass, 6 bar max
Warranty	Tank: 1 to 2 years, depending on the model
Net weight	106 kg
Shipping weight	109 kg
Dimensions	1800 × 1800 × 2200 mm

Description

Overview

This 5000 litre water tank with 0.55kw pump is a complete drinking-water set: a 5,000 L vertical tank, a 0.55 kW monoblock centrifugal pump rated up to 92 L/min and 26 m of head, a 3-stage wall filter and a 55 W UV steriliser, all supplied together. It moves a lot of water at modest pressure, so it fills drums, bowsers and header tanks quickly and suits level or gently sloping runs rather than long climbs.

The 5,000 L tank is double-layered rotomoulded virgin LLDPE with a black inner liner against algae, about 2.2 m high and 1.8 m across, with a 45 cm manhole and a screw-on lid with handles.

Key features

5,000 L vertical LLDPE tank, empty weight about 75 kg, maximum fill 5,325 L
0.55 kW monoblock centrifugal pump: up to 92 L/min, up to 26 m head
Suction lift up to 6 m with a foot valve, depending on altitude
3-stage 20 inch wall filter: 5 micron PP, GAC and nano silver CTO cartridges
55 W UV steriliser in 304 stainless steel, rated 2,700 L/h with 1 inch ports
Pipe set from tank to pump with ball valves, plus a 15 mm brass float valve with ball

Where it works

In the Eastern Cape, this kind of kit goes onto a single homestead, stock-water troughs, a garden tap line or topping up drums and bowsers. The tank holds a reserve through outages and load-shedding. Browse our tank and pump combo kits for other sizes. If you need a different pump on the same tank, look at the 5,000 L tank with 0.75 kW peripheral pump combo or the 1,000 L slim tank with 1.5 kW VSD booster pump combo.

What’s in the box

Water tank
0.55 kW monoblock centrifugal pump kit
3-stage wall-mount filter with cartridges and spanner
55 W UV steriliser
Pump house cover
Pipe set with ball valves
15 mm brass float valve with ball

Delivery and warranty

Kamano delivers with its own trucks from Polokwane to all nine provinces in 1 to 3 days, and delivery is free on orders of R20,000 or more (VAT incl.). This combo ships at 109 kg, which falls in the over 100 kg band, priced on quotation. The tank carries a warranty of 1 to 2 years, depending on the model, confirmed on your quote. Ask us for the warranty terms on the pump, filter and UV unit.

Questions about this product

Will this tank and pump kit work during load-shedding?

The pump needs mains power or a generator or inverter that can cover the starting surge of a 0.55 kW motor, which is well above its running load. The 5,000 L tank holds a reserve, so fill it while the grid is on and draw on it later. Tell us your backup set-up and we will check the match.

How much is delivery to Mthatha?

Delivery is charged by total order weight. This kit ships at 109 kg, which falls in the over 100 kg band, so we quote the fee for your address. We deliver with our own trucks from Polokwane to all nine provinces in 1 to 3 days, and orders from R20,000 (VAT incl.) go free.

Can this 0.55 kW monoblock lift water from a dam or sump?

Yes, with a foot valve it can draw up to about 6 m, depending on altitude, and you must fill the suction line before the first start. It is a surface pump, so it will not work from a deep borehole on its own. Keep it near the tank and ask us about submersibles for boreholes.

Can I drink water treated by the filter and UV unit?

The 3-stage filter takes out sediment, chlorine, taste and odour, and the 55 W UV steriliser targets bacteria, so together they improve drinking water. The UV unit is rated 2,700 L/h, so size your treated line to that. Test your source water first, because heavy contamination may need extra treatment.
