4SD2/37 4 inch stainless steel borehole pump, 2.2 kW, 262 m head

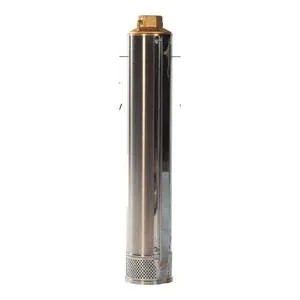

4SD2/37 multistage pump end, stainless steel body, up to 55 L/min

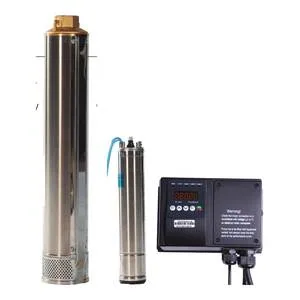

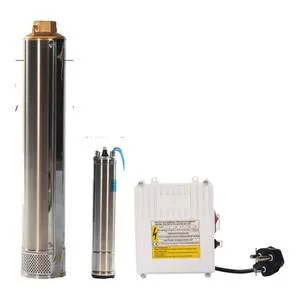

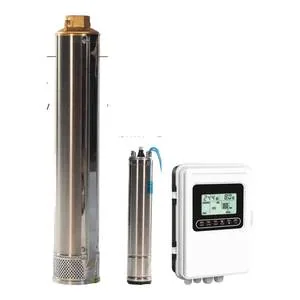

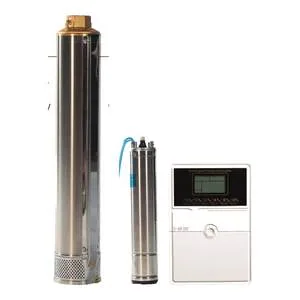

4SD2/37 borehole pump set with 2.2 kW motor and controller

4SD2/37 borehole pump side view showing stages and motor connection

4SD2/37 borehole pump components laid out

4SD2/37 4″ Borehole Pump, 2.2 kW, 262 m Max Head

SKU KMN-BORE-0251

4SD2/37 4-inch stainless steel borehole pump, 2.2 kW, up to 262 m head, as a full set or pump end, delivered across South Africa.

Price range: R1 888,00 through R16 360,00

Lifts up to 262 m, up to 55 L/min
2.2 kW motor sets or pump end only
Stainless steel body and shaft, fits 100 mm boreholes and up
Sets from R 5,552, pump end R 1,888 (VAT incl.)

Configuration

Clear

Request Bulk Quote Ask on WhatsApp

Delivered by our own trucks in 1 to 3 days. R550 / R950 / R1,450 by order weight. FREE on orders of R20,000 or more with code KH027. Delivery details

Specifications

Model	4SD2/37, 4-inch stainless steel multistage
Flow rate	Up to 3.3 m³/h (55 L/min)
Max head / pressure	262 m shut-off head
Duty points	0 L/min at 262 m; 5 L/min at 259 m; 10 L/min at 258 m; 15 L/min at 255 m; 20 L/min at 247 m; 25 L/min at 238 m; 30 L/min at 222 m; 35 L/min at 209 m; 40 L/min at 191 m; 45 L/min at 168 m; 50 L/min at 145 m; 55 L/min at 119 m
Voltage / phase	220 V single-phase; 380 V three-phase; 525 V three-phase, by option
Power	2.2 kW oil-filled motor on set options
Inlet / outlet	On request
Self-priming	N/A (submersible)
Duty cycle	On request
Fluid compatibility	Water from boreholes
Material	Stainless steel pump body and shaft
Minimum borehole diameter	100 mm internal
Controller	By option: MA analogue box, 20Y intelligent controller, Y1 digital protection controller or variable speed drive
Net weight	29 kg
Shipping weight	34 kg
Dimensions	1680 × 130 × 130 mm

Description

Overview

The 4SD2/37 is a 4-inch stainless steel multistage submersible pump that lifts water up to 262 m, with flows up to 3.3 m³/h (55 L/min), on a 2.2 kW motor. Buy this 2.2kw borehole pump as a complete set for your power supply or as a pump end only. It fits boreholes with an internal diameter of 100 mm or more.

To size it, add water depth, height to your tank and about 10% for pipe friction. The pump’s head at your flow must exceed that total. Browse the whole range in our borehole pumps category.

Key features

Stainless steel pump body and shaft
Shut-off head 262 m, 25 L/min at 238 m
Pump end only option for replacing a worn wet end

Options

220V set + analogue control box: pump end, 2.2 kW 220 V single-phase oil-filled motor, MA analogue control box. R 5,552.
220V set + 20Y intelligent controller: pump end, 2.2 kW 220 V single-phase oil-filled motor, 20Y intelligent controller with dry-run protection. R 6,936.
380V 3-phase set + Y1 controller: pump end, 2.2 kW 380 V three-phase oil-filled motor, Y1 digital protection controller. R 7,280.
525V 3-phase set + VSD: pump end, 2.2 kW 525 V three-phase oil-filled motor, variable speed drive (VSD). R 16,360.
Pump end only (no motor): wet end only, to replace a worn pump end on an existing 2.2 kW motor. R 1,888.

Prices include VAT. The 20Y adds dry-run protection, which we recommend for low-yield boreholes. Cable, rope, delivery pipe and base plate are not included.

Where it works

Suited to deeper low-yield boreholes in the Karoo, Limpopo and the Eastern Cape, where yield is modest but the water is far down. At 25 L/min it delivers 238 m of head. See also the 4SD2/18 1.1 kW borehole pump, 127 m head or the 4SD2/21 1.1 kW borehole pump, 149 m head.

What’s in the box

4SD2/37 pump end
Motor and controller as per your option

Delivery and warranty

Kamano delivers with its own trucks from Polokwane to all nine provinces in 1 to 3 days, including Gqeberha, Bloemfontein, Mbombela, Rustenburg, Kimberley and East London. Delivery is free on orders of R20,000 or more (VAT incl.). The heaviest option of this model ships at about 34 kg. A load this heavy falls in the R950 delivery band (VAT incl.). Ask us for the warranty terms on this model.

Questions about this product

Which 4SD2/37 set suits my power supply?

The 4SD2/37 comes as a set for 220 V single-phase, 380 V three-phase or 525 V three-phase, plus a pump end only for an existing 2.2 kW motor. Match the set to the power you have on site, single-phase or three-phase. Tell us your supply and we will confirm the right set before you pay.

How deep can I run the 4SD2/37 at 25 L/min?

At 25 L/min it delivers 238 m of head, and 262 m at zero flow. Add the depth to your water level, the height to your tank and about 10% for pipe friction, then make sure the head at your flow is higher than that. Send us your borehole details if you want us to check it.

Do you deliver the 4SD2/37 to Gqeberha and Bloemfontein?

Yes. We deliver with our own trucks from Polokwane to Gqeberha, Bloemfontein and every other province in 1 to 3 days. The heaviest option ships at about 34 kg, which falls in the R950 band. Orders of R20,000 or more (VAT incl.) ship free. Cable, rope, pipe and base plate are not included.

Nationwide delivery from Polokwane

Delivered to all nine provinces in 1 to 3 days

We deliver the 4SD2/37 4" Borehole Pump, 2.2 kW, 262 m Max Head with our own trucks to Johannesburg, Pretoria, Cape Town, Durban, Gqeberha, Bloemfontein, Polokwane, Mbombela, Stellenbosch, eMalahleni, Secunda, Tzaneen, Mokopane and Upington, and to farms, mines and sites in between. This item ships in the R950 delivery band (30 to 60 kg). Orders of R20,000 or more deliver free with code KH027.
