3/4 inch retractable fuel hose reel with 10 m hose, rated 10 bar, BSP thread

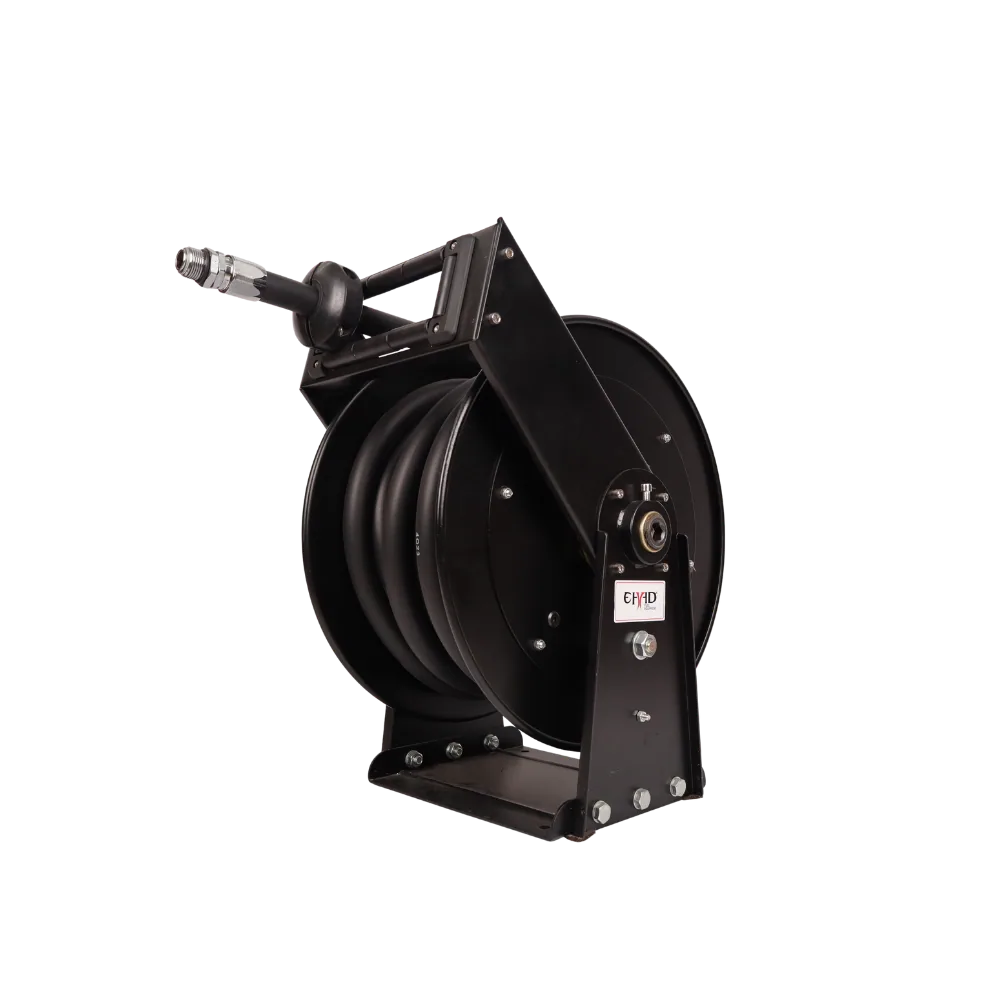

3/4″ Retractable Fuel Hose Reel with 10 m Hose, 10 bar

Name: 3/4" Retractable Fuel Hose Reel with 10 m Hose, 10 bar
SKU: KMN-FUEL-0320
Price: 5339.25 ZAR
Availability: InStock

SKU KMN-FUEL-0320

A 3/4" retractable fuel hose reel with 10 m of hose rated to 10 bar, for farm tanks, workshops and bakkie refuelling. Delivered nationwide.

R5 339,25

10 m of 3/4″ hose fitted
10 bar rating, BSP thread
Right size for farm and fleet pumps
30 kg, mounts on a wall or stand

Delivered by our own trucks in 1 to 3 days. R550 / R950 / R1,450 by order weight. FREE on orders of R20,000 or more with code KH027. Delivery details

Specifications

Hose size	3/4" bore
Hose length	10 m, fitted
Max pressure	10 bar
Thread	BSP
Fluid compatibility	Diesel and kerosene (ask us before using with petrol)
Hose supplied	Yes, 10 m
Mounting	Fixed mount, retractable drum
Net weight	30 kg
Shipping weight	36 kg
Dimensions	500 × 350 × 540 mm

Description

Overview

This 3/4 inch fuel hose reel holds 10 m of 3/4″ hose on a retractable drum and is rated to 10 bar, with BSP threads. It is the right bore for most 12V, 24V and 220 V transfer pumps. At 30 kg net it suits a wall bracket or a small stand next to a farm or workshop tank.

Specification summary for the 3/4 inch fuel hose reel: hose size 3/4″ bore; hose length 10 m, fitted; max pressure 10 bar; thread BSP; fluid compatibility diesel and kerosene (ask us before using with petrol); hose supplied Yes, 10 m; mounting fixed mount, retractable drum.

Key features

10 m of 3/4″ hose fitted
10 bar maximum pressure
BSP threaded connection
Matches common transfer pump port sizes
Retractable drum keeps the hose clean

Where it works

A 3/4 inch bore is the sweet spot for farm diesel tanks in the Free State and Limpopo, and for workshop fuel points where a transfer pump does 40 to 80 L/min. The reel keeps the hose out of the mud and away from tractor wheels. If your pump is bigger, look at a 1 inch reel instead. Related kit: 1/2″ Oil Hose Reel, 10 m, 200 bar and 3/4″ Fuel Hose Reel, 15 m Hose. Browse more hose reels.

What’s in the box

3/4″ retractable hose reel
10 m of 3/4″ hose fitted

Delivery and warranty

Kamano delivers with its own trucks from Polokwane to all nine provinces in 1 to 3 days. Order the 3/4 inch fuel hose reel online and we ship it from Polokwane. Delivery is charged by total order weight, and free delivery applies on orders of R20,000 or more (VAT incl.). Shipping weight: 36 kg. Ask us for the warranty terms on this model.

Freight is set by the combined weight of your order. This item sits in the 30 to 60 kg band at R950, and extra parts added to the same order only raise the fee if they push the total into the next band. Send us your site address and we will confirm the exact delivery charge before you pay.

Questions about this product

Will a 3/4 inch reel suit my 12V diesel pump?

Most 12V and 24V transfer pumps have 3/4 inch or 1 inch ports, and the reel's 3/4 inch hose matches the smaller size. Check your pump's outlet thread and use the right BSP adaptor. If the pump has 1 inch ports, the 1 inch reel is the cleaner match.

Is the hose included?

Yes. The reel is supplied with 10 m of 3/4 inch hose already wound on the drum, rated to 10 bar. You only need to connect the inlet to your pump and fit a nozzle at the free end, using BSP fittings.

Do you deliver to Upington and what does it cost?

Yes, we deliver to all nine provinces on our own trucks, normally in 1 to 3 days from Polokwane. This item ships at 36 kg, which is the 30 to 60 kg band: R950 if it is the only item in the order. Orders of R20,000 or more VAT incl. ship free, so adding a transfer pump can make freight free.
