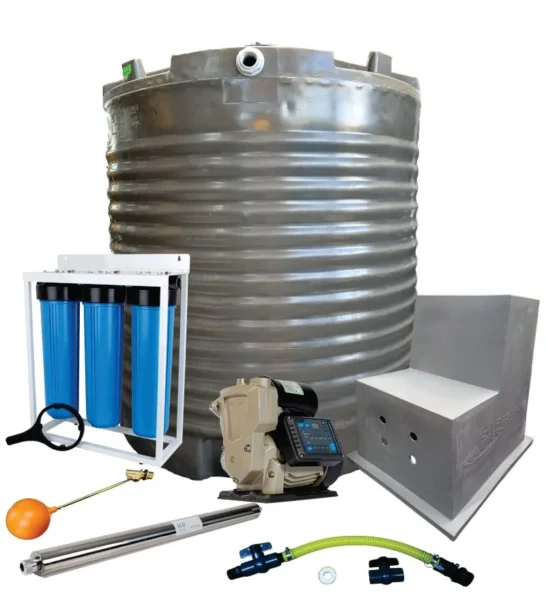

2,500 L water tank combo with 1.5 kW VSP VSD pump, filter and UV steriliser

2,500 L water tank combo with 1.5 kW VSP VSD pump: pump house, filter housings and pipework

2,500 L water tank combo with 1.5 kW VSP VSD pump, installed tank and pump kit

2,500 L Tank Combo, 1.5 kW VSP VSD Pump (108 L/min), Filter and UV

Name: 2,500 L Tank Combo, 1.5 kW VSP VSD Pump (108 L/min), Filter and UV
SKU: KMN-WATR-0323
Price: 14779.00 ZAR
Availability: InStock

SKU KMN-WATR-0323

A complete 2,500 L tank, 1.5 kW pump, filter and UV water kit for farms, lodges and homes, delivered from Polokwane across South Africa.

R14 779,00

2,500 L tank plus 1.5 kW VSP booster system with variable-speed drive pump, up to 108 L/min and 60 m head
3-stage wall filter and 55 W stainless UV steriliser in the kit
Pump house cover, ball-valve pipe set and brass float valve included
Delivered by Kamano’s own trucks, price VAT incl.

Delivered by our own trucks in 1 to 3 days. R550 / R950 / R1,450 by order weight. FREE on orders of R20,000 or more with code KH027. Delivery details

Specifications

Tank capacity	2,500 L
Tank maximum fill	2,650 L
Tank material	Rotomoulded LLDPE, vertical
Tank dimensions	approx. 155 cm diameter × 154.5 to 158 cm high; manhole 46 cm
Tank empty weight	38 kg
Pump type	1.5 kW VSP booster system with variable-speed drive
Flow rate	Up to 108 L/min (6.5 m³/h)
Max head / pressure	Up to 60 m head; pressure rating on request
Voltage / phase	Single-phase 220 V
Power	1.5 kW
Inlet / outlet	On request
Self-priming	On request
Suction lift	On request
Duty cycle	On request
Fluid compatibility	Clean water up to 40 °C
Filter	3-stage, 5 micron PP + GAC + nano silver CTO, max 5 bar, 50 °C
UV steriliser	55 W, 304 stainless, 2,700 L/h, 1 inch
Float valve	15 mm brass, 6 bar max
Warranty	Tank: 1 to 2 years, depending on the model
Net weight	85.1 kg
Shipping weight	89.4 kg
Dimensions	1555 × 1555 × 1580 mm

Description

Overview

This 2500 litre water tank with 1.5kw pump is a complete drinking-water set: a 2,500 L vertical tank, a 1.5 kW VSP booster system with variable-speed drive pump rated up to 108 L/min and 60 m of head, a 3-stage wall filter and a 55 W UV steriliser, all supplied together. The VSP system is a complete booster unit with a variable-speed drive on a 220 V single-phase supply, giving 108 L/min and up to 60 m of head with pressure that follows demand.

The 2,500 L tank has a double-layer wall with a black inner liner against algae, is rotomoulded from virgin LLDPE and stands about 1.55 m high and 1.55 m across, with a 46 cm manhole and a screw-on lid with handles.

Key features

2,500 L vertical LLDPE tank, empty weight about 38 kg, maximum fill 2,650 L
1.5 kW VSP booster system with variable-speed drive pump: up to 108 L/min, up to 60 m head
Variable-speed drive on 220 V single-phase supply
3-stage 20 inch wall filter: 5 micron PP, GAC and nano silver CTO cartridges
55 W UV steriliser in 304 stainless steel, rated 2,700 L/h with 1 inch ports
Pipe set from tank to pump with ball valves, plus a 15 mm brass float valve with ball

Where it works

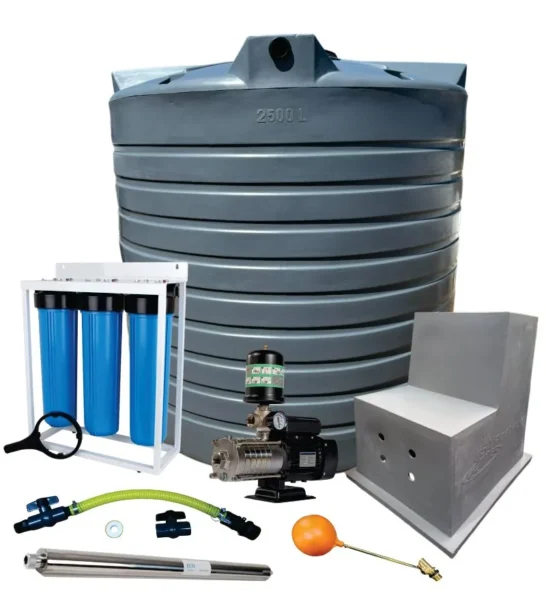

In KZN, this kind of kit goes onto homesteads, lodges and small packhouses that need strong, steady pressure from ordinary single-phase power. The tank holds a reserve through outages and load-shedding. Browse our tank and pump combo kits for other sizes. If you need a different pump on the same tank, look at the 2,500 L tank with 0.75 kW VSD booster pump combo or the 10,000 L tank with 1.1 kW monoblock pump combo.

What’s in the box

Water tank
1.5 kW VSP booster system with variable-speed drive pump kit
3-stage wall-mount filter with cartridges and spanner
55 W UV steriliser
Pump house cover
Pipe set with ball valves
15 mm brass float valve with ball

Delivery and warranty

Kamano delivers with its own trucks from Polokwane to all nine provinces in 1 to 3 days, and delivery is free on orders of R20,000 or more (VAT incl.). This combo ships at 89.4 kg, which falls in the 60 to 100 kg band, at R1,450. The tank carries a warranty of 1 to 2 years, depending on the model, confirmed on your quote. Ask us for the warranty terms on the pump, filter and UV unit.

Questions about this product

Will this tank and pump kit work during load-shedding?

The pump needs mains power or a generator or inverter that can cover the starting surge of a 1.5 kW motor, which is well above its running load. The 2,500 L tank holds a reserve, so fill it while the grid is on and draw on it later. Tell us your backup set-up and we will check the match.

How much is delivery to a farm in the Karoo?

Delivery is charged by total order weight. This kit ships at 89.4 kg, which falls in the 60 to 100 kg band, so the fee is R1,450. We deliver with our own trucks from Polokwane to all nine provinces in 1 to 3 days, and orders from R20,000 (VAT incl.) go free.

What power supply does the VSP booster need?

It runs on 220 V single-phase supply, the normal household and farmhouse connection, with a variable-speed drive that follows demand. It delivers up to 108 L/min and 60 m of head. For a generator or inverter, size for starting surge on a 1.5 kW motor, and ask us if you want the set-up checked.

Does the 2,500 L tank need a base?

Yes. A vertical tank must stand on a level, properly built base or tank stand, and it should stay in place once filled. Water weighs 1 kg per litre, so a full 2,500 L tank puts roughly 2,500 kg plus the tank weight onto that base. Build the slab before it arrives, and ask us if you are unsure about the specification.
