15 kW Solar Pump Inverter, 3-Phase, 540 to 700 V DC Input

Description

Overview

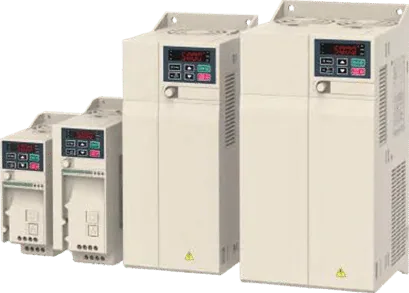

This 15 kW solar pump inverter turns DC power from solar panels into three-phase AC to drive a pump motor of up to 15 kW, with no grid connection. MPPT (maximum power point tracking) squeezes the most from the panels as the light changes, and the output runs at up to 32 A across 0 to 600 Hz. It works with surface and submersible pumps, so it suits large borehole, irrigation, livestock and water transfer systems on farms and remote sites.

Key features

• 15 kW, 3-phase output, 32 A output current
• Input voltage 540 to 700 V DC, maximum open-circuit voltage (Voc) 780 V
• MPPT to optimise power from the panels
• Sleep function to reduce energy use when idle
• Dry-run protection that detects low water levels
• Over-current and low-frequency protection for the motor
• Minimum power protection to keep the pump running under reduced sun
• Air cooled with a fan, 0 to 600 Hz frequency range

Where it works

It suits large centre-pivot and drip irrigation on farms in the Free State, Limpopo and the Western Cape, deep borehole schemes for municipalities, and mining water transfer where diesel or grid power costs too much. The string voltage of your panels must stay between 540 and 700 V under working conditions, and below 780 V open-circuit on cold mornings. The inverter is rated IP20, so install it in a dry, dust-free cabinet. For smaller pumps see the 11 kW inverter, and for bigger ones the 18.5 kW inverter. Browse more solar pumps.

What’s in the box

• 15 kW DC-AC solar pump inverter

Delivery and warranty

Kamano delivers with its own trucks from Polokwane to all nine provinces in 1 to 3 days, including Johannesburg, Cape Town, Bloemfontein, Kimberley, Rustenburg and Klerksdorp. At an estimated 19 kg shipped, the inverter falls in the up to 30 kg band at R550. Orders of R20,000 or more (VAT incl.) qualify for free delivery. Ask us for the warranty terms on this model.
