5000 L Tank and 1.1 kW Monoblock Pump Combo, 125 L/min
SKU KMN-WATR-0331
A 5000 L tank with a 1.1 kW monoblock pump moving up to 125 L/min, plus filter and UV steriliser, delivered across South Africa.
R11 871,09
- 5000 L tank with 1.1 kW monoblock centrifugal pump kit, filter and UV steriliser in one kit
- 1.1 kW motor delivers up to 125 L/min at a 37 m head
- Includes pump house cover, pipe set with ball valves and float valve
- Ships at 119 kg, delivered nationwide from Polokwane
Delivered by our own trucks in 1 to 3 days. R550 / R950 / R1,450 by order weight. FREE on orders of R20,000 or more with code KH027. Delivery details
Specifications
| Tank capacity | 5000 L nominal, 5325 L maximum |
|---|---|
| Tank material | Rotomoulded virgin LLDPE with black inner liner |
| Tank diameter × height | 1800 mm × 2200 mm, 450 mm manhole |
| Pump type | Monoblock centrifugal, 1.1 kW, 2850 rpm |
| Flow rate | Up to 125 L/min |
| Max head / pressure | 37 m head, 8 bar max operating pressure |
| Voltage / phase | Single phase, capacitor run |
| Inlet / outlet | On request |
| Self-priming | On request (suction lift up to 6 m with foot valve) |
| Duty cycle | On request |
| Fluid compatibility | Clean water up to 40 °C |
| UV steriliser | 55 W, 304 stainless steel casing, 2700 L/h, 1 in inlet and outlet |
| Filter | 3-stage wall mount, 20 inch cartridges (5 micron PP, GAC, nano silver CTO), 5 bar, 50 °C max |
| Float valve | Brass, 15 mm, 6 bar max |
| Pump house | Grey plastic cover included |
| Warranty | Tank: 1 to 2 years, depending on the model |
| Net weight | 116 kg |
| Shipping weight | 119 kg |
| Dimensions | 1800 × 1800 × 2200 mm |
Description
Overview
This 5000 L kit uses the larger 1.1 kW monoblock pump, which moves up to 125 L/min at a 37 m head. Choose it when the 0.75 kW version would be stretched by the number of taps or the length of the pipe run.
The pump is single phase with a capacitor and overload protection, and it runs quietly. The tank is a 5000 L vertical LLDPE unit standing 2200 mm high on a 1800 mm footprint.
Shopping for a 5000l tank and 1.1kw pump kit? Browse more in our tank and pump combo kits, or compare it with the related tank and booster pump combo or the 5000 L combo with a 0.75 kW monoblock pump.
Key features
- 1.1 kW motor delivers up to 125 L/min at a 37 m head
- The highest flow of the 5000 L monoblock kits, for several outlets at once
- Overload protection and low-noise running
- Suction lift up to 6 m with a foot valve, depending on altitude
- UV steriliser and 3-stage filter included
- Black inner liner on the tank helps keep algae down
- Pump house cover, ball-valve pipe set and float valve supplied
Where it works
It works on Free State and North West farms with feedlot or dairy washdown points, on mine village housing blocks in Limpopo, and at transport depots that wash trucks. It also suits small irrigation blocks where a bigger flow shortens each cycle.

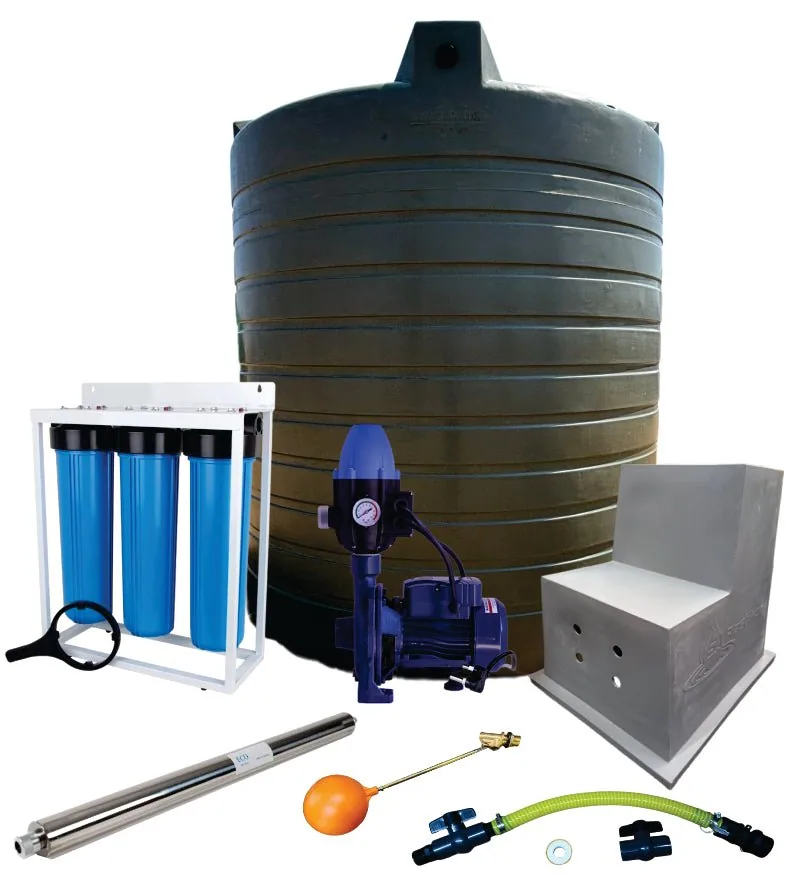

What’s in the box
- 5000 L vertical LLDPE water tank
- 1.1 kW monoblock centrifugal pump kit
- 3-stage wall-mount filter (5 micron PP, GAC and nano silver CTO cartridges) with spanner
- 55 W UV steriliser, 304 stainless steel casing
- Grey plastic pump house cover
- Tank-to-pump pipe set with ball valves
- 15 mm brass float valve kit with ball
Delivery and warranty
Kamano delivers with its own trucks from Polokwane to all nine provinces in 1 to 3 days, and delivery is free on orders of R20,000 or more (VAT incl.). This combo ships at 119 kg, so delivery is quoted for your site. The tank carries a warranty of 1 to 2 years, depending on the model, confirmed on your quote. Ask us for the pump warranty terms.
Questions about this product
Can this pump run a small irrigation block?
Yes, for small blocks. At up to 125 L/min and a 37 m head it can feed drip lines or a few sprinklers, provided you size the pipe to match. Check the total flow of your emitters against 125 L/min first. Larger blocks need a bigger pump, so ask us if you are unsure.
Is the tank really 5000 litres and how big is it?
The tank is a 5000 L nominal vertical rotomoulded LLDPE tank that holds up to 5325 L when filled to the brim. It stands about 2200 mm high on a 1800 mm diameter footprint, with a 450 mm manhole. Prepare a level, firm base before delivery, because a full tank weighs over five tonnes.
Is this pump single phase or three phase?
It is single phase with a permanently connected capacitor, so it runs off normal 220 V farm or house power without a three-phase supply. Have an electrician fit a proper breaker and earth leakage protection. Pairing it with an inverter during load-shedding needs a unit sized for motor start-up surge.
How much is delivery on this tank combo, and do you deliver to my farm?
We deliver with our own trucks from Polokwane to all nine provinces in 1 to 3 days. This combo ships at 119 kg, which is over 100 kg, so the delivery fee is on quotation. Send us your town or farm address and we will quote you. Orders from R20,000 VAT incl. get free delivery.
Nationwide delivery from Polokwane
Delivered to all nine provinces in 1 to 3 days
We deliver the 5000 L Tank and 1.1 kW Monoblock Pump Combo, 125 L/min with our own trucks to Johannesburg, Pretoria, Cape Town, Durban, Gqeberha, Bloemfontein, Polokwane, Mbombela, Welkom, Thohoyandou, Kimberley, Richards Bay, eMalahleni and Mokopane, and to farms, mines and sites in between. This item ships in the delivery on quotation (over 100 kg). Orders of R20,000 or more deliver free with code KH027.
Pairs well with
-
KMN-WATR-0235

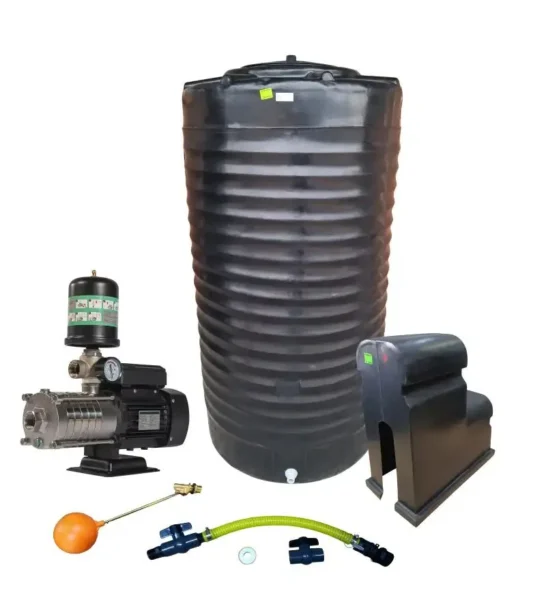

Executive 1200 L Slim Tank Combo, 1.5 kW Intelli VSD Booster
- 1200 L tank
- 1.5 kW pump
- 133.3 L/min
-
KMN-WATR-0252

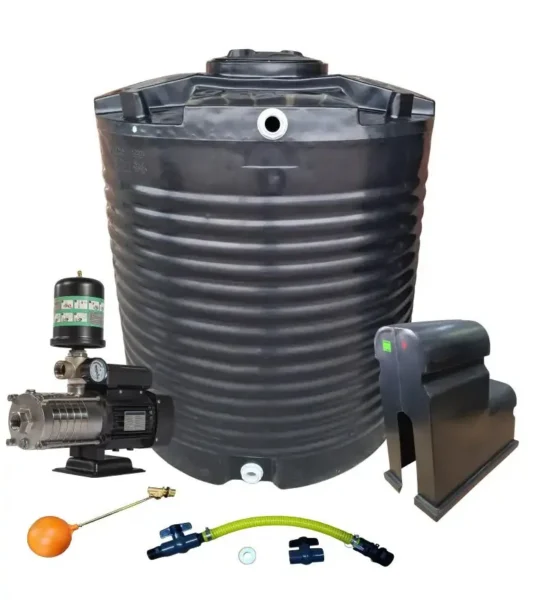

Executive 2200 L Tank Combo, 1.5 kW Intelli VSD Booster
