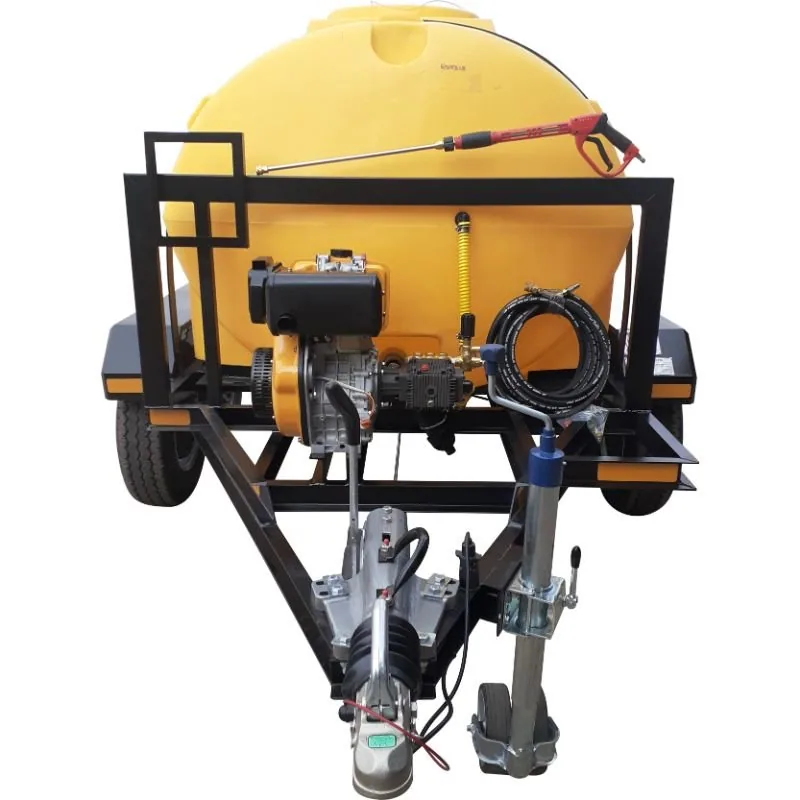

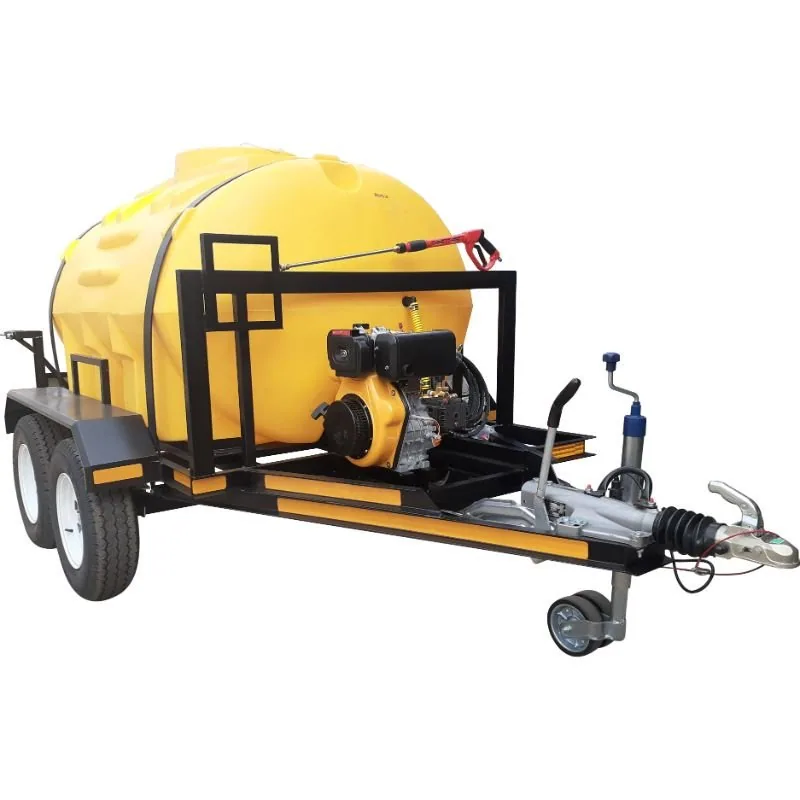

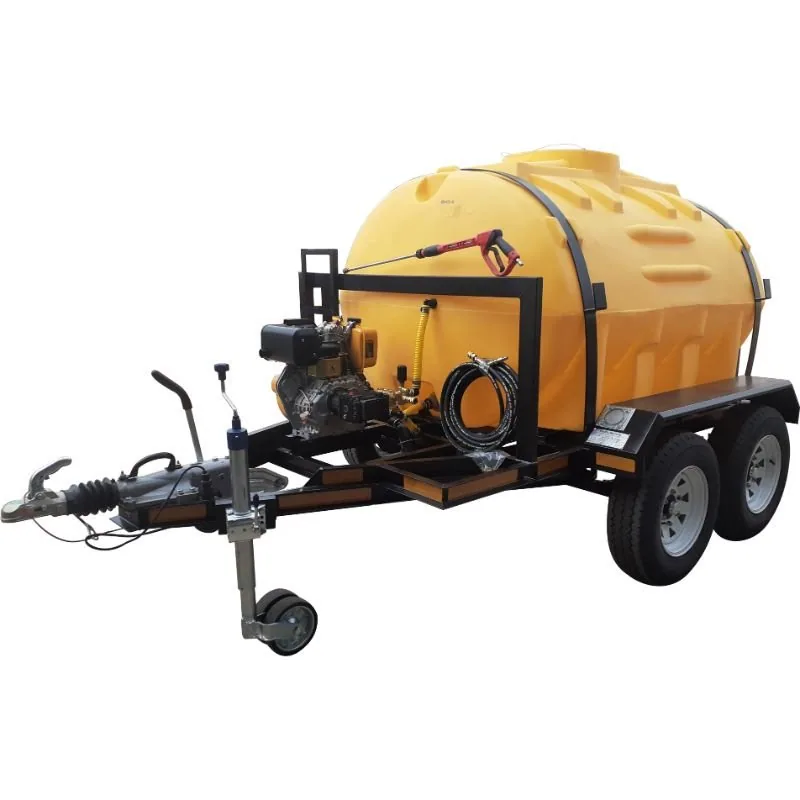

2500 L Pressure Washer Trailer, 10 HP Diesel, 240 bar, Braked
SKU KMN-WATR-0066
A 2500 L double-axle braked trailer with a recoil-start 10 HP diesel washer at 240 bar, built for mines, farms and contractors across South Africa.
R91 466,55
- 2500 L onboard water, no tap needed on site
- 10 HP diesel: 240 bar, 15 L/min
- Double-axle braked trailer, 3500 kg coupler
- Delivered nationwide from Polokwane
Delivered by our own trucks in 1 to 3 days. R550 / R950 / R1,450 by order weight. FREE on orders of R20,000 or more with code KH027. Delivery details
Specifications
| Flow rate | 15 L/min (up to 20.7 L/min) |
|---|---|
| Max pressure | 240 bar |
| Working pressure | 200 bar |
| Power | 10 HP diesel engine |
| Voltage / phase | N/A (engine driven) |
| Fuel | Diesel |
| Speed | 3000 rpm |
| Start | Recoil |
| Inlet / outlet | Onboard tank feed; outlet via quick coupler |
| Self-priming | N/A (fed from the onboard tank) |
| Duty cycle | On request |
| Fluid compatibility | Clean water |
| Hose and lance | 10 m 480 bar hose, quick couplers; spray lance |
| Nozzles | 4 quick-connect, 0 to 45 degrees (red, white, yellow, green) |
| Capacity | 2500 L |
| Material / wall | Polyethylene, 2 mm base plate |
| Chassis / axle / tyres | Double axle, 2 x 1.8 t braked; 3500 kg braked coupler; 14" wheels with steel rims; 5 mm U-channel chassis frames; 1.3 t leg stand |
| Bunding | N/A (water tank) |
| Pump / hose / nozzle fitted | Yes, pump, hose and nozzles fitted |
| Net weight | 547 kg |
| Shipping weight | 547 kg |
| Dimensions | On request (tank alone approx. 2280 × 1540 × 1130 mm) |
Description
Overview
This 2500 L pressure washer trailer is a self-contained cleaning rig: a 10 HP diesel engine with recoil start drives the pump, the water sits in a 2500 L horizontal polyethylene tank, and the whole unit rides on a double-axle trailer with two 1.8 t braked axles and a 3500 kg braked coupler. It delivers up to 240 bar (200 bar working pressure) at 15 L/min (up to 20.7 L/min), so you wash vehicles, implements and floors on site.
Recoil starting keeps the electrics simple, which helps on dusty sites where batteries and wiring take a beating. A full tank gives about 167 minutes of spraying at full flow. See all pressure washers.
Key features
- 10 HP diesel engine with recoil start running at 3000 rpm
- Up to 240 bar maximum pressure, 200 bar working pressure, 15 L/min (up to 20.7 L/min) flow
- 10 m 480 bar hose with quick couplers, spray lance and four colour-coded nozzles from 0 to 45 degrees
- Auto feedback valve sets the pressure; inline filter protects the pump
- 2500 L horizontal polyethylene tank on a double-axle trailer with two 1.8 t braked axles and a 3500 kg braked coupler, with registration and roadworthy papers
- Pressure gauge kit strongly advised; optional extra
Where it works
Farms and mines tow rigs like this to coal-mine workshops, haul-truck bays and large feedlots that are far from a tap. Think of Mpumalanga grain farms, Western Cape orchards or Eastern Cape quarries. If you are shopping for a 2500 litre diesel pressure washer trailer, the tank size decides how long you work before refilling. Also see the 2500 L 13 HP petrol pressure washer trailer and the 2500 L electric-start diesel pressure washer trailer.
What’s in the box
- 2500 L unit with 10 HP diesel engine with recoil start
- 10 m 480 bar high-pressure hose with quick connection
- Spray lance and four quick-connect nozzles
- Inline filter
- 2500 L tank mounted on double-axle braked trailer
- Registration and roadworthy papers
Delivery and warranty
Kamano delivers with its own trucks from Polokwane to all nine provinces in 1 to 3 days, and orders of R20,000 or more (VAT incl.) ship free. Shipping weight is 547 kg, so it falls in the over 100 kg band, which is quoted per delivery. Ask us for the warranty terms on this model. We ship this 2500 litre diesel pressure washer trailer to every province.
Questions about this product
How much is delivery on the 2500 L unit to my farm or site?
The shipping weight is 547 kg, which is over 100 kg, so delivery is on quotation. Our fixed bands cover up to 30 kg at R550, 30 to 60 kg at R950 and 60 to 100 kg at R1,450. Orders of R20,000 or more, VAT incl., ship free. We deliver with our own trucks to all nine provinces in 1 to 3 days.
Does it need a battery?
No. The recoil start pulls over by hand, so there is no battery to charge or replace and nothing to go flat while the unit stands. Check the engine oil and fuel before each start, and always keep water in the tank before you run the pump, since a dry pump can be damaged.
How long does the 2500 L tank last?
At full flow of 15 L/min a full 2500 L tank gives roughly 167 minutes of continuous spraying. In practice you trigger the lance on and off, so the real working time is longer. For all-day work away from a tap, plan a refill point on site.
Does the trailer come with registration papers?
The specification lists registration and roadworthy papers with the trailer. It is a double-axle trailer with two 1.8 t braked axles and a 3500 kg braked coupler on 14 inch wheels with a leg stand or jockey wheel. Ask us to confirm the paperwork for your unit and how registration works in your province before you collect or take delivery.
Nationwide delivery from Polokwane
Delivered to all nine provinces in 1 to 3 days
We deliver the 2500 L Pressure Washer Trailer, 10 HP Diesel, 240 bar, Braked with our own trucks to Johannesburg, Pretoria, Cape Town, Durban, Gqeberha, Bloemfontein, Polokwane, Mbombela, Richards Bay, Welkom, East London, Pietermaritzburg, Mahikeng and Thohoyandou, and to farms, mines and sites in between. This item ships in the delivery on quotation (over 100 kg). Orders of R20,000 or more deliver free with code KH027.
