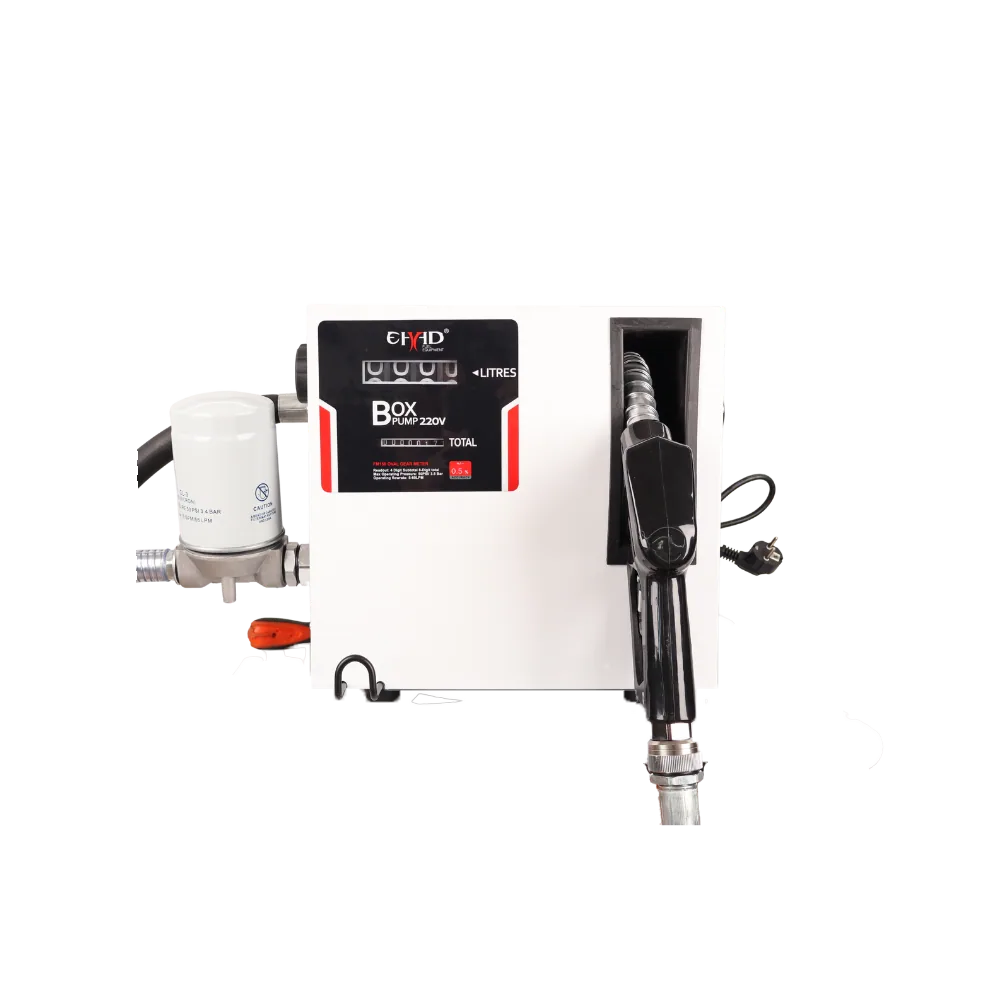

220V box pump dispensing unit with FM150 meter, 4 m hose and 1 inch nozzle

220V Box Pump Dispenser, 5 to 75 L/min, FM150 Meter

Name: 220V Box Pump Dispenser, 5 to 75 L/min, FM150 Meter
SKU: KMN-FUEL-0247
Price: 7040.25 ZAR
Availability: InStock

SKU KMN-FUEL-0247

An enclosed 220V diesel and paraffin dispenser with a 450 W vane pump, FM150 meter, 4 m hose and 1" auto nozzle, delivered across South Africa.

R7 040,25

450 W DTP80 vane pump, 5 to 75 L/min
FM150 oval-gear meter, ±0.5% accuracy
4 m × 1″ hose and 1″ automatic nozzle
IP55 enclosure, self-priming, 3 m suction lift

Delivered by our own trucks in 1 to 3 days. R550 / R950 / R1,450 by order weight. FREE on orders of R20,000 or more with code KH027. Delivery details

Specifications

Flow rate	5 to 75 L/min
Max head / pressure	5 to 10 m head
Voltage / phase	220 V AC
Power	450 W
Inlet / outlet	1" hose and nozzle
Self-priming	Yes, suction lift 3 m
Duty cycle	30 min
Fluid compatibility	Diesel and paraffin, viscosity 2 to 20 cSt, not petrol
Meter	FM150 oval gear, ±0.5%, 4-digit batch, 8-digit total
Protection	IP55
Nozzle	1" automatic, swivel, lockable
Net weight	26 kg
Shipping weight	28 kg
Dimensions	On request

Description

Overview

The 220V box pump is a complete mains-powered fuel dispenser in one enclosed housing: a DTP80 vane pump of 450 W, an FM150 oval-gear meter, a 4 m hose of 1″ bore and a 1″ automatic nozzle with a swivel and lock.

It delivers 5 to 75 L/min depending on head and hose, which is plenty for tractors, trucks and generators. The meter has a 4-digit batch counter and an 8-digit total, so you can account for every litre. On 12V power, use the 12V box pump instead. For a higher-flow dispenser, step up to the Box Pump PLUS 80 at 220V, and browse the full fuel transfer pumps range for the rest.

Key features

DTP80 vane pump, 450 W, 220V AC, self-priming
FM150 oval-gear meter with ±0.5% accuracy
4-digit batch and 8-digit total display
4 m × 1″ hose with fittings
1″ automatic nozzle, swivel, lockable
IP55 rating, 30 minute duty cycle, 2 to 20 cSt fluids

Where it works

A 220V box pump suits the workshop or fuel store on a Limpopo farm where you have mains or a generator, and the meter keeps drivers honest. Depots in Gauteng and KZN use it to track fleet fuel, while mines and quarries in Mpumalanga mount it on a bunded tank near the plant. It runs diesel and paraffin, not petrol. Plan for a stable base, because a 220v box pump weighs 26 kg net, and mount it above or beside the tank within its 3 m suction lift. A short, sealed suction line and a clean filter keep the flow near the top of the 5 to 75 L/min range.

What’s in the box

220V box pump with DTP80 vane pump
FM150 oval-gear meter
4 m × 1″ hose with fittings
1″ automatic nozzle

Delivery and warranty

Kamano delivers with its own trucks from Polokwane to all nine provinces in 1 to 3 days. Orders of R20,000 or more (VAT incl.) ship free. This item ships at 28 kg. That puts it in the R550 delivery band (up to 30 kg). Tell us your town and site access when you order, and we will confirm the delivery day and offloading arrangements with you. Ask us for the warranty terms on this model.

Questions about this product

What is the real flow rate of the 220V box pump?

The pump delivers between 5 and 75 L/min. The actual figure depends on head, hose length and fuel viscosity, so a short, level run with a clean filter will give you the top of the range, while a long lift, a long hose or thick fuel will give you less than the maximum.

Can the box pump run for hours without stopping?

Its duty cycle is 30 minutes, so run it in sessions and let the motor rest between long fills. For all-day, high-volume dispensing, a pump designed for continuous duty is the better choice, and we can quote you one that suits your site.

Do you deliver to Phalaborwa and Kimberley?

Yes, Phalaborwa is covered. Kamano delivers with its own trucks from Polokwane to all nine provinces in 1 to 3 days. At 28 kg this item sits in the R550 band (up to 30 kg). Orders of R20,000 or more (VAT incl.) ship free. Send us your town and we will confirm the delivery day.
